48V 6200W 5500W Off Grid Hybrid Inverter 1 Phase 500V Max PV Input Pure Sine Wave 80A AC Charger for Cabin Home Use
48V 6200W 5500W Off Grid Hybrid Inverter 1 Phase 500V Max PV Input Pure Sine Wave 80A AC Charger for Cabin Home Use
48V 6200W 5500W Off Grid Hybrid Inverter 1 Phase 500V Max PV Input Pure Sine Wave 80A AC Charger for Cabin Home Use
48V 6200W 5500W Off Grid Hybrid Inverter 1 Phase 500V Max PV Input Pure Sine Wave 80A AC Charger for Cabin Home Use
48V 6200W 5500W Off Grid Hybrid Inverter 1 Phase 500V Max PV Input Pure Sine Wave 80A AC Charger for Cabin Home Use
48V 6200W 5500W Off Grid Hybrid Inverter 1 Phase 500V Max PV Input Pure Sine Wave 80A AC Charger for Cabin Home Use
48V 6200W 5500W Off Grid Hybrid Inverter 1 Phase 500V Max PV Input Pure Sine Wave 80A AC Charger for Cabin Home Use
48V 6200W 5500W Off Grid Hybrid Inverter 1 Phase 500V Max PV Input Pure Sine Wave 80A AC Charger for Cabin Home Use
48V 6200W 5500W Off Grid Hybrid Inverter 1 Phase 500V Max PV Input Pure Sine Wave 80A AC Charger for Cabin Home Use
48V 6200W 5500W Off Grid Hybrid Inverter 1 Phase 500V Max PV Input Pure Sine Wave 80A AC Charger for Cabin Home Use
Specifications
MOQ :
1 piece
Delivery Time :
30 days
Communication Interface :
RS232+RS485+ External CT Port
Price :
To be negotiated
Inverter Type :
Off Grid inverter
Frequency :
50Hz/60Hz
Waveform :
Pure Sine wave
Certification :
CE, IEC
Payment Terms :
L/C,T/T
Operating Temperature :
-10°C To 50°C
Nominal Output Voltage :
220VAC/230/240VAC
Supply Ability :
2000 pieces per month
Charging Mode :
MPPT
Weight :
12kg
Place of Origin :
China
Output Current :
120A
Packaging Details :
carton box
Model Number :
EM-T (PV60-500VDC) 5500-48PL
Acceptable Input Voltage Range :
170-280VAC or 90-280VAC
Brand Name :
1stess
Size :
450*300*130mm
Description
48V 6200W/5500W Off-Grid Hybrid Inverter
Advanced 1-phase pure sine wave inverter with 500V max PV input and 80A AC charger, designed for cabin and home applications.
Key Features
  • 3-in-1 Operation Modes: Grid-tie, Off-grid, and Grid-tie with backup functionality
  • Parallel Capability: Connect up to 12 units for single-phase or three-phase operation
  • Wide MPPT Range: 60-500V DC for optimal solar energy harvesting
  • High PV Input: Maximum 500V DC with low start-up voltage of only 150V DC
  • Pure Sine Wave Output: Safe for sensitive electronic equipment and appliances
  • Programmable Supply Priority: Configurable PV, battery, or grid priority settings
  • Equalization Charge: Extends battery life through optimized charging cycles
  • External CT Anti-backflow: Prevents feed-in to grid for zero export operation
  • WiFi Remote Monitoring: Optional app control and real-time system monitoring
  • Dust Protection: Detachable dust cover suitable for harsh industrial environments
  • High Efficiency: Up to 94% DC to AC conversion efficiency
  • Wide Temperature Range: Operational from -10℃ to 50℃
  • Comprehensive Communication: RS232 + RS485 + CT port connectivity
Technical Specifications
Specification GM5500-48PL GM6200-48PL
Phase Configuration 1-Phase In / 1-Phase Out 1-Phase In / 1-Phase Out
Maximum PV Input Power 5500W 6500W
Nominal Output Voltage 220/230/240V AC 220/230/240V AC
Output Waveform Pure Sine Wave Pure Sine Wave
Battery Voltage 48V DC 48V DC
Communication Ports RS232 + RS485 + External CT Port RS232 + RS485 + External CT Port
Maximum Solar Charge Current 100A 120A

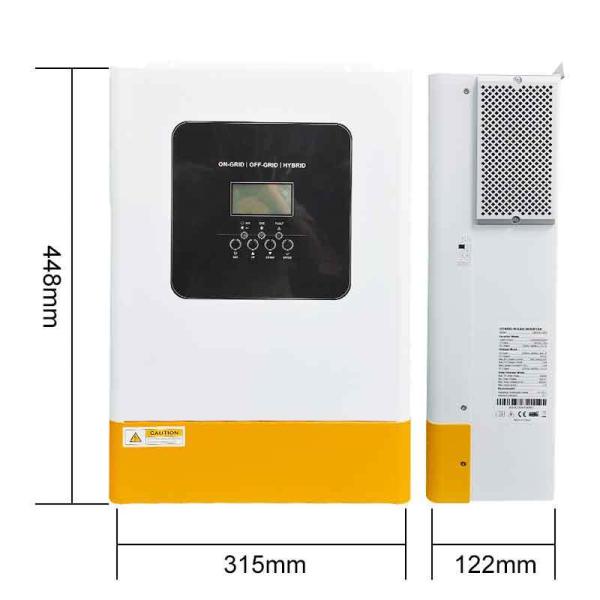

Dimensions (D x W x H) 448 × 315 × 122 mm 450 × 300 × 130 mm
Product Images
48V 6200W 5500W Off Grid Hybrid Inverter 1 Phase 500V Max PV Input Pure Sine Wave 80A AC Charger for Cabin Home Use
Front View
48V 6200W 5500W Off Grid Hybrid Inverter 1 Phase 500V Max PV Input Pure Sine Wave 80A AC Charger for Cabin Home Use
Side View
48V 6200W 5500W Off Grid Hybrid Inverter 1 Phase 500V Max PV Input Pure Sine Wave 80A AC Charger for Cabin Home Use
Display Panel
48V 6200W 5500W Off Grid Hybrid Inverter 1 Phase 500V Max PV Input Pure Sine Wave 80A AC Charger for Cabin Home Use
Connection Terminals
48V 6200W 5500W Off Grid Hybrid Inverter 1 Phase 500V Max PV Input Pure Sine Wave 80A AC Charger for Cabin Home Use

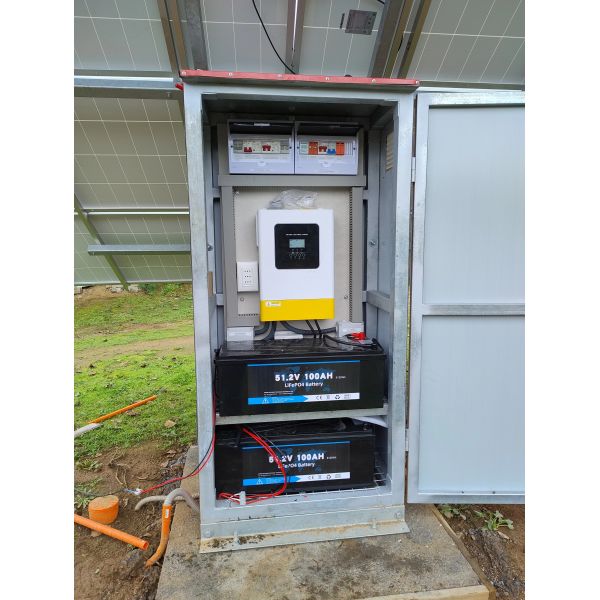

Installation Diagram
