Specifications
Model Number :
EM-T (PV60-500VDC) 5500-48PL
Acceptable Input Voltage Range :
170-280VAC or 90-280VAC
Brand Name :
1stess
Size :
450*300*130mm
MOQ :
1 piece
Delivery Time :
30 days
Communication Interface :
RS232+RS485+ External CT Port
Price :
To be negotiated
Inverter Type :
Off Grid inverter
Frequency :
50Hz/60Hz
Waveform :
Pure Sine wave
Certification :
CE, IEC
Weight :
12kg
Place of Origin :
China
Output Current :
120A
Packaging Details :
carton box
Payment Terms :
L/C,T/T
Operating Temperature :
-10°C To 50°C
Nominal Output Voltage :
220VAC/230/240VAC
Supply Ability :
2000 pieces per month
Charging Mode :
MPPT
Description
5.5KW/6.2KW Grid Tie Solar Inverter with 48V Battery
Advanced 1-phase pure sine wave inverter with 100A/120A MPPT charger, ideal for RV, off-grid cabins, and residential solar systems.
Key Features
  • 3-in-1 operational modes: Grid-tie, Off-grid, and Grid-tie with backup
  • Parallel capability for up to 12 units, supporting 1-phase or 3-phase operation
  • Wide MPPT voltage range: 60-500Vdc with maximum PV input of 500Vdc
  • Low start-up voltage requirement: only 150Vdc
  • Pure sine wave output for safe operation with sensitive electronics
  • Programmable power supply priority: PV / Battery / Grid priority selection
  • Equalization (EQ) charge function to optimize battery lifespan
  • External CT anti-backflow capability for zero feed-in to grid
  • Optional WiFi remote monitoring with mobile app control
  • Detachable dust cover design for harsh environment durability
  • High efficiency DC/AC conversion: up to 94%
  • Wide operating temperature range: -10℃ to 50℃
  • Comprehensive communication ports: RS232 + RS485 + CT port
Technical Specifications
Specification GM5500-48PL GM6200-48PL
Phase Configuration 1-Phase In/1-Phase Out 1-Phase In/1-Phase Out
Maximum PV Input Power 5500W 6500W
Nominal Output Voltage 220/230/240VAC 220/230/240VAC
Output Waveform Pure Sine Wave Pure Sine Wave
Battery Voltage 48VDC 48VDC
Communication Ports RS232+RS485+External CT Port RS232+RS485+External CT Port
Maximum Solar Charge Current 100A 120A
Dimensions (D×W×H) 448×315×122 mm 450×300×130 mm
Product Images
5.5KW 6.2KW Grid Tie Solar Inverter 48V Battery 1 Phase Pure Sine Wave 100A 120A MPPT Charger for RV Off Grid Cabin
Front View
5.5KW 6.2KW Grid Tie Solar Inverter 48V Battery 1 Phase Pure Sine Wave 100A 120A MPPT Charger for RV Off Grid Cabin
Side View
5.5KW 6.2KW Grid Tie Solar Inverter 48V Battery 1 Phase Pure Sine Wave 100A 120A MPPT Charger for RV Off Grid Cabin
Display Panel
5.5KW 6.2KW Grid Tie Solar Inverter 48V Battery 1 Phase Pure Sine Wave 100A 120A MPPT Charger for RV Off Grid Cabin
Connection Terminals
5.5KW 6.2KW Grid Tie Solar Inverter 48V Battery 1 Phase Pure Sine Wave 100A 120A MPPT Charger for RV Off Grid Cabin

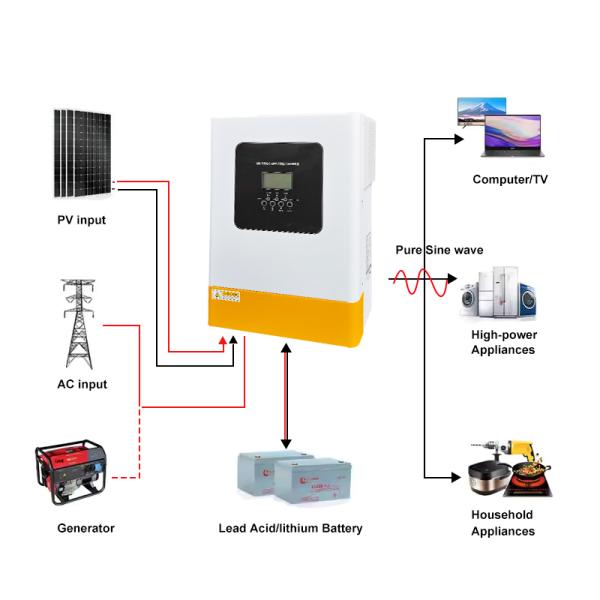

Installation Diagram
