6200W 5500W Off Grid Solar Inverter 48VDC 1 Phase 120A 100A MPPT Charger Pure Sine Wave CT Anti Backflow for Home
6200W 5500W Off Grid Solar Inverter 48VDC 1 Phase 120A 100A MPPT Charger Pure Sine Wave CT Anti Backflow for Home
6200W 5500W Off Grid Solar Inverter 48VDC 1 Phase 120A 100A MPPT Charger Pure Sine Wave CT Anti Backflow for Home
6200W 5500W Off Grid Solar Inverter 48VDC 1 Phase 120A 100A MPPT Charger Pure Sine Wave CT Anti Backflow for Home
6200W 5500W Off Grid Solar Inverter 48VDC 1 Phase 120A 100A MPPT Charger Pure Sine Wave CT Anti Backflow for Home
6200W 5500W Off Grid Solar Inverter 48VDC 1 Phase 120A 100A MPPT Charger Pure Sine Wave CT Anti Backflow for Home
6200W 5500W Off Grid Solar Inverter 48VDC 1 Phase 120A 100A MPPT Charger Pure Sine Wave CT Anti Backflow for Home
6200W 5500W Off Grid Solar Inverter 48VDC 1 Phase 120A 100A MPPT Charger Pure Sine Wave CT Anti Backflow for Home
6200W 5500W Off Grid Solar Inverter 48VDC 1 Phase 120A 100A MPPT Charger Pure Sine Wave CT Anti Backflow for Home
6200W 5500W Off Grid Solar Inverter 48VDC 1 Phase 120A 100A MPPT Charger Pure Sine Wave CT Anti Backflow for Home
Specifications
MOQ :
1 piece
Delivery Time :
30 days
Communication Interface :
RS232+RS485+ External CT Port
Certification :
CE, IEC
Price :
To be negotiated
Inverter Type :
Off Grid inverter
Frequency :
50Hz/60Hz
Waveform :
Pure Sine wave
Model Number :
EM-T (PV60-500VDC) 5500-48PL
Acceptable Input Voltage Range :
170-280VAC or 90-280VAC
Brand Name :
1stess
Size :
450*300*130mm
Weight :
12kg
Place of Origin :
China
Output Current :
120A
Packaging Details :
carton box
Payment Terms :
L/C,T/T
Operating Temperature :
-10°C To 50°C
Nominal Output Voltage :
220VAC/230/240VAC
Supply Ability :
2000 pieces per month
Charging Mode :
MPPT
Description
6200W/5500W Off-Grid Solar Inverter with MPPT Charger
Advanced 48VDC pure sine wave inverter featuring 3-in-1 operation modes, parallel capability up to 12 units, and comprehensive monitoring options for reliable home solar power systems.
Key Features & Capabilities
  • 3-in-1 Operation Modes: Grid-tie, Off-grid, and Grid-tie with backup functionality
  • Parallel Operation: Connect up to 12 units for 1-phase or 3-phase systems
  • Advanced MPPT Technology: Wide 60-500Vdc input range with 150Vdc startup voltage
  • Pure Sine Wave Output: Safe for sensitive electronics and appliances
  • Programmable Power Priority: Configurable PV, battery, or grid priority settings
  • Battery Optimization: Equalization charge extends battery lifespan
  • Anti-Backflow Protection: External CT enables zero feed-in to grid
  • Remote Monitoring: Optional WiFi for APP control and system management
  • Rugged Construction: Detachable dust cover for harsh environments
  • High Efficiency: Up to 94% DC/AC conversion efficiency
  • Wide Temperature Range: Operates from -10℃ to 50℃
  • Comprehensive Connectivity: RS232 + RS485 + CT communication ports
Technical Specifications
Specification GM5500-48PL GM6200-48PL
Phase Configuration 1-Phase In/1-Phase Out 1-Phase In/1-Phase Out
Maximum PV Input Power 5500W 6500W
Nominal Output Voltage 220/230/240VAC 220/230/240VAC
Output Waveform Pure Sine Wave Pure Sine Wave
Battery Voltage 48VDC 48VDC
Communication Ports RS232+RS485+External CT Port RS232+RS485+External CT Port
Maximum Solar Charge Current 100A 120A
Dimensions (D×W×H mm) 448×315×122 450×300×130
Product Images
6200W 5500W Off Grid Solar Inverter 48VDC 1 Phase 120A 100A MPPT Charger Pure Sine Wave CT Anti Backflow for Home
Front View
6200W 5500W Off Grid Solar Inverter 48VDC 1 Phase 120A 100A MPPT Charger Pure Sine Wave CT Anti Backflow for Home
Side View
6200W 5500W Off Grid Solar Inverter 48VDC 1 Phase 120A 100A MPPT Charger Pure Sine Wave CT Anti Backflow for Home
Display Panel
6200W 5500W Off Grid Solar Inverter 48VDC 1 Phase 120A 100A MPPT Charger Pure Sine Wave CT Anti Backflow for Home
Connection Terminals
6200W 5500W Off Grid Solar Inverter 48VDC 1 Phase 120A 100A MPPT Charger Pure Sine Wave CT Anti Backflow for Home

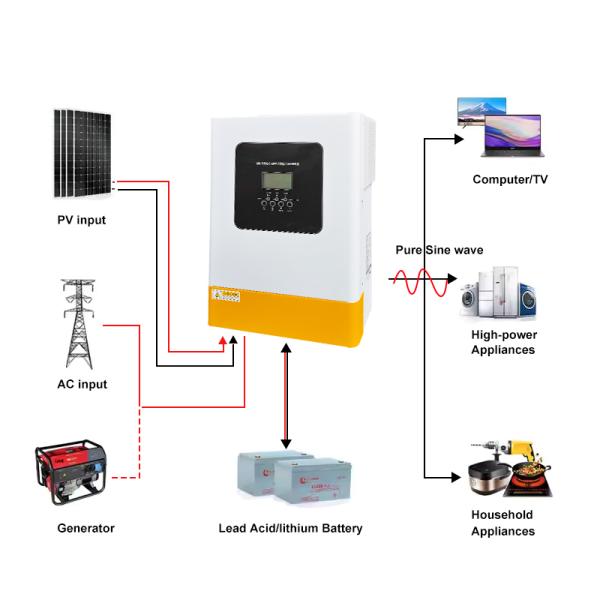

Installation Diagram
