5500W 6200W Hybrid Solar Inverter 48V 1 Phase Off Grid MPPT 60-500VDC Pure Sine Wave WiFi Monitoring for Home Solar System
5500W 6200W Hybrid Solar Inverter 48V 1 Phase Off Grid MPPT 60-500VDC Pure Sine Wave WiFi Monitoring for Home Solar System
5500W 6200W Hybrid Solar Inverter 48V 1 Phase Off Grid MPPT 60-500VDC Pure Sine Wave WiFi Monitoring for Home Solar System
5500W 6200W Hybrid Solar Inverter 48V 1 Phase Off Grid MPPT 60-500VDC Pure Sine Wave WiFi Monitoring for Home Solar System
5500W 6200W Hybrid Solar Inverter 48V 1 Phase Off Grid MPPT 60-500VDC Pure Sine Wave WiFi Monitoring for Home Solar System
5500W 6200W Hybrid Solar Inverter 48V 1 Phase Off Grid MPPT 60-500VDC Pure Sine Wave WiFi Monitoring for Home Solar System
5500W 6200W Hybrid Solar Inverter 48V 1 Phase Off Grid MPPT 60-500VDC Pure Sine Wave WiFi Monitoring for Home Solar System
5500W 6200W Hybrid Solar Inverter 48V 1 Phase Off Grid MPPT 60-500VDC Pure Sine Wave WiFi Monitoring for Home Solar System
5500W 6200W Hybrid Solar Inverter 48V 1 Phase Off Grid MPPT 60-500VDC Pure Sine Wave WiFi Monitoring for Home Solar System
5500W 6200W Hybrid Solar Inverter 48V 1 Phase Off Grid MPPT 60-500VDC Pure Sine Wave WiFi Monitoring for Home Solar System
5500W 6200W Hybrid Solar Inverter 48V 1 Phase Off Grid MPPT 60-500VDC Pure Sine Wave WiFi Monitoring for Home Solar System
5500W 6200W Hybrid Solar Inverter 48V 1 Phase Off Grid MPPT 60-500VDC Pure Sine Wave WiFi Monitoring for Home Solar System
Specifications
MOQ :
1 piece
Delivery Time :
30 days
Communication Interface :
RS232+RS485+ External CT Port
Price :
To be negotiated
Inverter Type :
Off Grid inverter
Frequency :
50Hz/60Hz
Waveform :
Pure Sine wave
Certification :
CE, IEC
Model Number :
EM-T (PV60-500VDC) 5500-48PL
Acceptable Input Voltage Range :
170-280VAC or 90-280VAC
Brand Name :
1stess
Size :

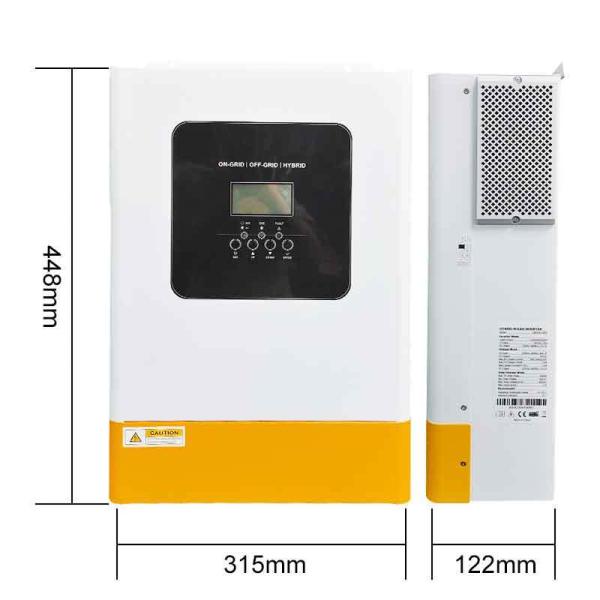

450*300*130mm
Weight :
12kg
Place of Origin :
China
Output Current :
120A
Packaging Details :
carton box
Payment Terms :
L/C,T/T
Operating Temperature :
-10°C To 50°C
Nominal Output Voltage :
220VAC/230/240VAC
Supply Ability :
2000 pieces per month
Charging Mode :
MPPT
Description
5500W/6200W Hybrid Solar Inverter - 48V 1 Phase Off-Grid with MPPT

Advanced hybrid solar inverter offering flexible operation modes, high efficiency, and comprehensive monitoring capabilities for residential solar systems.

Key Features

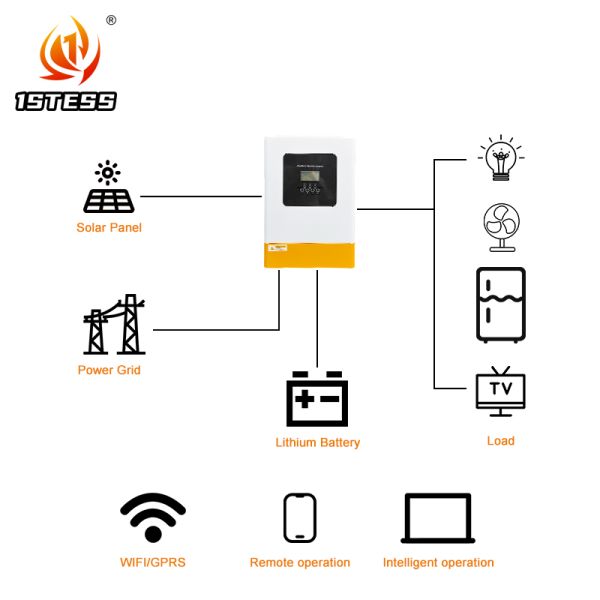

  • 3-in-1 Operation Modes: Grid-tie, Off-grid, and Grid-tie with backup functionality
  • Parallel Capability: Connect up to 12 units for 1-phase or 3-phase operation
  • Wide MPPT Range: 60-500V DC with maximum PV input of 500V DC
  • Low Start-up Voltage: Only 150V DC required for operation
  • Pure Sine Wave Output: Safe for sensitive electronic equipment and appliances
  • Programmable Supply Priority: Configurable PV, battery, or grid priority settings
  • Equalization Charge: Optimizes battery performance and extends battery life
  • External CT Anti-backflow: Prevents feed-in to grid for zero export capability
  • WiFi Remote Monitoring: Optional app control and system monitoring
  • Detachable Dust Cover: Suitable for harsh environmental conditions
  • High Efficiency: Up to 94% DC to AC conversion efficiency
  • Wide Temperature Range: Operates from -10℃ to 50℃
  • Comprehensive Communication: RS232, RS485, and CT ports included
Technical Specifications
Model GM6200-48PL
INPUT
Nominal Voltage 220/230/240V AC
Acceptable Voltage Range 170-280V AC or 90-280V AC
Frequency 50/60 Hz (Auto sensing)
OUTPUT
Nominal Voltage 220/230/240V AC
Waveform Pure Sine Wave
Product Images
5500W 6200W Hybrid Solar Inverter 48V 1 Phase Off Grid MPPT 60-500VDC Pure Sine Wave WiFi Monitoring for Home Solar System 5500W 6200W Hybrid Solar Inverter 48V 1 Phase Off Grid MPPT 60-500VDC Pure Sine Wave WiFi Monitoring for Home Solar System 5500W 6200W Hybrid Solar Inverter 48V 1 Phase Off Grid MPPT 60-500VDC Pure Sine Wave WiFi Monitoring for Home Solar System 5500W 6200W Hybrid Solar Inverter 48V 1 Phase Off Grid MPPT 60-500VDC Pure Sine Wave WiFi Monitoring for Home Solar System 5500W 6200W Hybrid Solar Inverter 48V 1 Phase Off Grid MPPT 60-500VDC Pure Sine Wave WiFi Monitoring for Home Solar System
