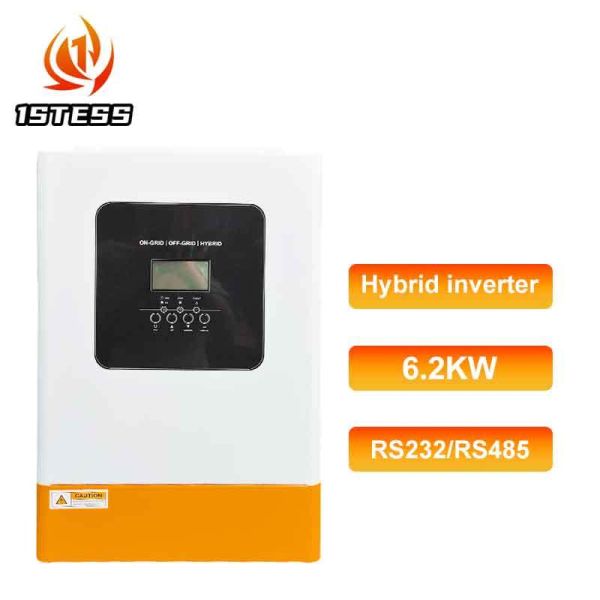

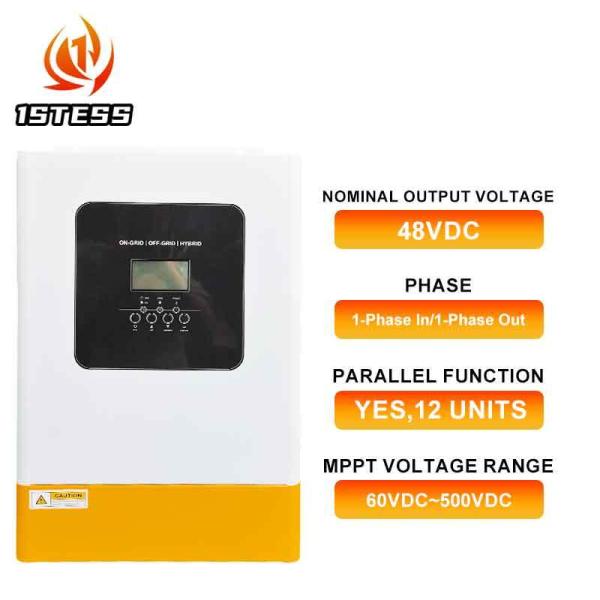

48V 5500W 6200W Solar Hybrid Inverter 1 Phase In Out MPPT 500VDC Max Pure Sine Wave Parallel 12 Units Backup Power
48V 5500W 6200W Solar Hybrid Inverter 1 Phase In Out MPPT 500VDC Max Pure Sine Wave Parallel 12 Units Backup Power
48V 5500W 6200W Solar Hybrid Inverter 1 Phase In Out MPPT 500VDC Max Pure Sine Wave Parallel 12 Units Backup Power
48V 5500W 6200W Solar Hybrid Inverter 1 Phase In Out MPPT 500VDC Max Pure Sine Wave Parallel 12 Units Backup Power
48V 5500W 6200W Solar Hybrid Inverter 1 Phase In Out MPPT 500VDC Max Pure Sine Wave Parallel 12 Units Backup Power
48V 5500W 6200W Solar Hybrid Inverter 1 Phase In Out MPPT 500VDC Max Pure Sine Wave Parallel 12 Units Backup Power
48V 5500W 6200W Solar Hybrid Inverter 1 Phase In Out MPPT 500VDC Max Pure Sine Wave Parallel 12 Units Backup Power
48V 5500W 6200W Solar Hybrid Inverter 1 Phase In Out MPPT 500VDC Max Pure Sine Wave Parallel 12 Units Backup Power
48V 5500W 6200W Solar Hybrid Inverter 1 Phase In Out MPPT 500VDC Max Pure Sine Wave Parallel 12 Units Backup Power
48V 5500W 6200W Solar Hybrid Inverter 1 Phase In Out MPPT 500VDC Max Pure Sine Wave Parallel 12 Units Backup Power
Specifications
Model Number :
EM-T (PV60-500VDC) 5500-48PL
Acceptable Input Voltage Range :
170-280VAC or 90-280VAC
Brand Name :
1stess
Size :
450*300*130mm
MOQ :
1 piece
Delivery Time :
30 days
Communication Interface :
RS232+RS485+ External CT Port
Frequency :
50Hz/60Hz
Waveform :
Pure Sine wave
Certification :
CE, IEC
Price :
To be negotiated
Inverter Type :
Off Grid inverter
Weight :
12kg
Place of Origin :
China
Output Current :
120A
Packaging Details :
carton box
Payment Terms :
L/C,T/T
Operating Temperature :
-10°C To 50°C
Nominal Output Voltage :
220VAC/230/240VAC
Supply Ability :
2000 pieces per month
Charging Mode :
MPPT
Description
48V 5500W/6200W Solar Hybrid Inverter
Advanced 1-phase solar hybrid inverter with MPPT technology, pure sine wave output, and parallel capability for up to 12 units.
Key Features
  • 3-in-1 Operation Modes: Grid-tie, Off-grid, and Grid-tie with backup functionality
  • Parallel Operation: Supports up to 12 units for 1-phase or 3-phase systems
  • Wide MPPT Range: 60-500Vdc with maximum PV input of 500Vdc
  • Low Start-up Voltage: Only 150Vdc required for operation
  • Pure Sine Wave Output: Safe for sensitive electronic equipment and appliances
  • Programmable Supply Priority: Configurable PV, battery, or grid priority
  • Equalization Charge: Optimizes battery performance and extends lifespan
  • External CT Anti-backflow: Prevents feed-in to grid for zero export operation
  • WiFi Remote Monitoring: Optional app control and system monitoring
  • Dust Cover Design: Detachable cover suitable for harsh environments
  • High Efficiency: Up to 94% DC/AC conversion efficiency
  • Wide Temperature Range: Operates from -10℃ to 50℃
  • Multiple Communication Ports: RS232, RS485, and CT port connectivity
Technical Specifications
Specification GM5500-48PL GM6200-48PL
Phase Configuration 1-Phase In/1-Phase Out 1-Phase In/1-Phase Out
Maximum PV Input Power 5500W 6500W
Nominal Output Voltage 220/230/240VAC 220/230/240VAC
Output Waveform Pure Sine Wave Pure Sine Wave
Battery Voltage 48VDC 48VDC
Communication Ports RS232+RS485+External CT Port RS232+RS485+External CT Port
Maximum Solar Charge Current 100A 120A
Dimensions (D×W×H mm) 448×315×122 450×300×130
