2500W 24V and 3500W 24V Hybrid Solar Inverter Pure Sine Wave MPPT Single Phase Off Grid 500Vdc High Input for Farm
2500W 24V and 3500W 24V Hybrid Solar Inverter Pure Sine Wave MPPT Single Phase Off Grid 500Vdc High Input for Farm
2500W 24V and 3500W 24V Hybrid Solar Inverter Pure Sine Wave MPPT Single Phase Off Grid 500Vdc High Input for Farm
2500W 24V and 3500W 24V Hybrid Solar Inverter Pure Sine Wave MPPT Single Phase Off Grid 500Vdc High Input for Farm
2500W 24V and 3500W 24V Hybrid Solar Inverter Pure Sine Wave MPPT Single Phase Off Grid 500Vdc High Input for Farm
2500W 24V and 3500W 24V Hybrid Solar Inverter Pure Sine Wave MPPT Single Phase Off Grid 500Vdc High Input for Farm
2500W 24V and 3500W 24V Hybrid Solar Inverter Pure Sine Wave MPPT Single Phase Off Grid 500Vdc High Input for Farm
2500W 24V and 3500W 24V Hybrid Solar Inverter Pure Sine Wave MPPT Single Phase Off Grid 500Vdc High Input for Farm
2500W 24V and 3500W 24V Hybrid Solar Inverter Pure Sine Wave MPPT Single Phase Off Grid 500Vdc High Input for Farm
2500W 24V and 3500W 24V Hybrid Solar Inverter Pure Sine Wave MPPT Single Phase Off Grid 500Vdc High Input for Farm
Specifications
Brand Name :
1stess
Model Number :
CM-N (PV30-500VDC) 3500-24N
Certification :
CE, IEC
Place of Origin :
China
MOQ :
1 piece
Price :
To be negotiated
Payment Terms :
L/C,T/T
Supply Ability :
2000 pieces per month
Delivery Time :
30 days
Packaging Details :
carton box
Charging Mode :
MPPT
Operating Temperature :
-10°C To 55°C
Inverter Type :
Off Grid inverter
Frequency :
50Hz/60Hz
Output Voltage :
220VAC/230VAC
Communication Interface :
RJ45 For WiFi
Size :
330*278*98mm
weight :
3.8kg
Output Frequency :
50/60Hz
Waveform :
Pure Sine wave
Description

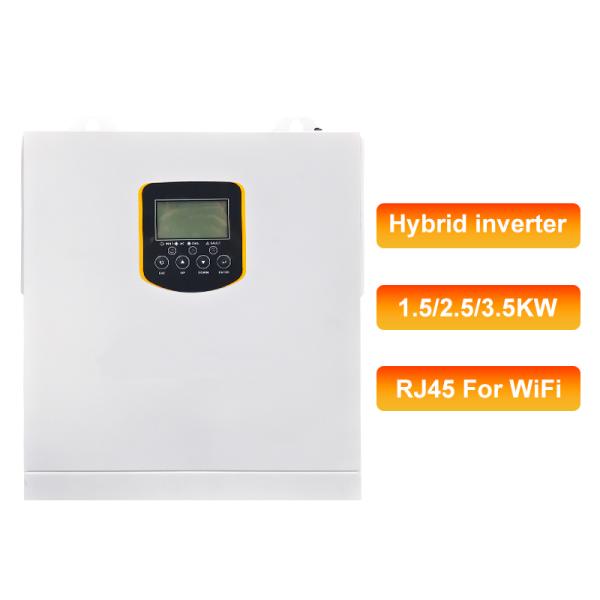

2500W 24V and 3500W 24V Hybrid Solar Inverter
Pure Sine Wave MPPT Single Phase Off Grid 500Vdc High Input for Farm Applications
Product Overview
24V 1.5kW to 3.5kW MPPT Dual Output Hybrid Solar Inverter supporting both On-Grid and Off-Grid operations with 12V and 24V configurations.
Key Features
  • Battery Wake-up Function for enhanced battery management
  • Pure Sine Wave output for clean, stable power
  • High PV Input up to 500V DC maximum
  • Built-in MPPT charge controller (60A-100A)
  • Detachable dust cover for harsh environment protection
  • Optional WiFi remote monitoring capability
  • Multiple output priority modes: UTL, SOL, SBU, SUB
  • EQ function to optimize battery performance and extend lifecycle
Technical Specifications
MODEL CM1500-12N CM1500-24N CM2500-24N CM3500-24N
Capacity 1500VA/1500W 1500VA/1500W 2500VA/1500W 3500VA/1500W
Parallel Capability NO NO NO NO
Lithium Battery Activation NO NO NO NO
Battery Wake-up Function YES YES YES YES
Battery Voltage 12VDC 24VDC 24VDC 24VDC
Solar Charger TYPE MPPT MPPT MPPT MPPT
Communication Interface RJ45 For WiFi RJ45 For WiFi RJ45 For WiFi RJ45 For WiFi
Nominal Voltage 230VAC 230VAC 230VAC 230VAC
Product Images
2500W 24V and 3500W 24V Hybrid Solar Inverter Pure Sine Wave MPPT Single Phase Off Grid 500Vdc High Input for Farm 2500W 24V and 3500W 24V Hybrid Solar Inverter Pure Sine Wave MPPT Single Phase Off Grid 500Vdc High Input for Farm 2500W 24V and 3500W 24V Hybrid Solar Inverter Pure Sine Wave MPPT Single Phase Off Grid 500Vdc High Input for Farm 2500W 24V and 3500W 24V Hybrid Solar Inverter Pure Sine Wave MPPT Single Phase Off Grid 500Vdc High Input for Farm 2500W 24V and 3500W 24V Hybrid Solar Inverter Pure Sine Wave MPPT Single Phase Off Grid 500Vdc High Input for Farm 2500W 24V and 3500W 24V Hybrid Solar Inverter Pure Sine Wave MPPT Single Phase Off Grid 500Vdc High Input for Farm 2500W 24V and 3500W 24V Hybrid Solar Inverter Pure Sine Wave MPPT Single Phase Off Grid 500Vdc High Input for Farm
Send your message to this supplier
Send Now

2500W 24V and 3500W 24V Hybrid Solar Inverter Pure Sine Wave MPPT Single Phase Off Grid 500Vdc High Input for Farm

Ask Latest Price
Watch Video
Product Detail
Brand Name :
1stess
Model Number :
CM-N (PV30-500VDC) 3500-24N
Certification :
CE, IEC
Place of Origin :
China
MOQ :
1 piece
Price :
To be negotiated
Contact Supplier
video
2500W 24V and 3500W 24V Hybrid Solar Inverter Pure Sine Wave MPPT Single Phase Off Grid 500Vdc High Input for Farm
2500W 24V and 3500W 24V Hybrid Solar Inverter Pure Sine Wave MPPT Single Phase Off Grid 500Vdc High Input for Farm
2500W 24V and 3500W 24V Hybrid Solar Inverter Pure Sine Wave MPPT Single Phase Off Grid 500Vdc High Input for Farm
2500W 24V and 3500W 24V Hybrid Solar Inverter Pure Sine Wave MPPT Single Phase Off Grid 500Vdc High Input for Farm
2500W 24V and 3500W 24V Hybrid Solar Inverter Pure Sine Wave MPPT Single Phase Off Grid 500Vdc High Input for Farm
