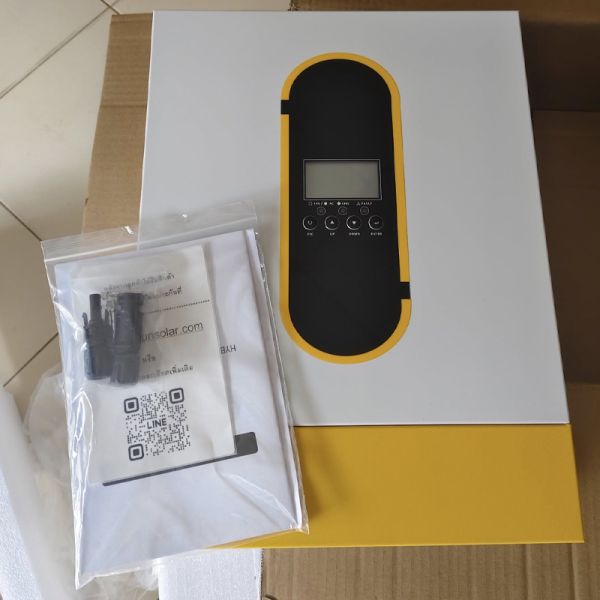

6500W Solar Charger 6200W Inverter 48V DC Single Phase High Voltage MPPT Pure Sine Wave Off Grid System for PC
6500W Solar Charger 6200W Inverter 48V DC Single Phase High Voltage MPPT Pure Sine Wave Off Grid System for PC
6500W Solar Charger 6200W Inverter 48V DC Single Phase High Voltage MPPT Pure Sine Wave Off Grid System for PC
6500W Solar Charger 6200W Inverter 48V DC Single Phase High Voltage MPPT Pure Sine Wave Off Grid System for PC
6500W Solar Charger 6200W Inverter 48V DC Single Phase High Voltage MPPT Pure Sine Wave Off Grid System for PC
6500W Solar Charger 6200W Inverter 48V DC Single Phase High Voltage MPPT Pure Sine Wave Off Grid System for PC
6500W Solar Charger 6200W Inverter 48V DC Single Phase High Voltage MPPT Pure Sine Wave Off Grid System for PC
6500W Solar Charger 6200W Inverter 48V DC Single Phase High Voltage MPPT Pure Sine Wave Off Grid System for PC
6500W Solar Charger 6200W Inverter 48V DC Single Phase High Voltage MPPT Pure Sine Wave Off Grid System for PC
6500W Solar Charger 6200W Inverter 48V DC Single Phase High Voltage MPPT Pure Sine Wave Off Grid System for PC
Specifications
Brand Name :
1stess
Model Number :
EM-T (PV60-500VDC) 6200-48L
Certification :
CE, IEC
Place of Origin :
China
MOQ :
1 piece
Price :
To be negotiated
Payment Terms :
L/C,T/T
Supply Ability :
2000 pieces per month
Delivery Time :
30 days
Packaging Details :
carton box
Charging Mode :
MPPT
Operating Temperature :
-10°C To 50°C
Inverter Type :
Off Grid inverter
Frequency :
50Hz/60Hz
Output Voltage :
220VAC/230VAC
Communication Interface :
RS232/RS485
Input Voltage :
230VAC
Size :
483*312*122mm
Waveform :
Pure Sine wave
Output Current :
120A
Weight :
11kg
Description
6500W Solar Charger 6200W Inverter 48V DC Single Phase High Voltage MPPT Pure Sine Wave Off Grid System
Professional 6.2kW hybrid solar inverter designed for both on-grid and off-grid applications, featuring advanced MPPT technology and pure sine wave output.
Key Features
  • Dual output for smart load management
  • Lithium battery activation function by PV or utility power
  • Compatible with LiFePO4 batteries via RS485 communication
  • High PV input up to 500V DC maximum
  • Built-in MPPT charge controller with 120A capacity
  • Capable of operating without battery backup
  • Detachable dust cover for harsh environment protection
  • Optional WiFi remote monitoring capability
  • Multiple output priority modes: UTL, SOL, SBU, SUB
  • Equalization function to optimize battery performance and extend lifecycle
Technical Specifications
MODEL EM6200-48L
INPUT
Nominal Voltage 230VAC
Acceptable Voltage Range 170-280VAC; 90-280VAC
Frequency 50/60 Hz (Auto sensing)
OUTPUT
Nominal Voltage 220/230VAC ±5%
Surge Power 12400VA
Frequency 50/60Hz
Waveform Pure Sine wave
Transfer Time 10ms (For personal computer); 20ms (For home appliances)
Peak Efficiency 94%
Overload Protection 5s @ >=140% load; 10s @ 100%~140% load
6500W Solar Charger 6200W Inverter 48V DC Single Phase High Voltage MPPT Pure Sine Wave Off Grid System for PC 6500W Solar Charger 6200W Inverter 48V DC Single Phase High Voltage MPPT Pure Sine Wave Off Grid System for PC 6500W Solar Charger 6200W Inverter 48V DC Single Phase High Voltage MPPT Pure Sine Wave Off Grid System for PC 6500W Solar Charger 6200W Inverter 48V DC Single Phase High Voltage MPPT Pure Sine Wave Off Grid System for PC 6500W Solar Charger 6200W Inverter 48V DC Single Phase High Voltage MPPT Pure Sine Wave Off Grid System for PC 6500W Solar Charger 6200W Inverter 48V DC Single Phase High Voltage MPPT Pure Sine Wave Off Grid System for PC
Applications & Capabilities
This hybrid solar inverter serves as a critical component in solar power systems, converting DC power from photovoltaic panels into usable AC power for residential and commercial applications.
Grid-Tied Operation Features
  • Grid Synchronization: Designed to synchronize with utility grid, matching output frequency and voltage to grid standards
  • Maximum Energy Harvesting: Utilizes MPPT technology to optimize energy extraction from solar panels under varying conditions
  • Net Metering Support: Enables credit for excess energy fed back into the grid, reducing electricity bills
  • Advanced Safety Features: Equipped with anti-islanding protection and other safety mechanisms for secure operation during grid outages
  • Compact Design: Lightweight and space-efficient for easy installation in residential or commercial settings
  • Performance Monitoring: Includes monitoring capabilities for tracking system performance and energy production via mobile apps or web interfaces
The hybrid solar inverter is suitable for diverse applications including homes, offices, and commercial buildings requiring reliable power supply. Particularly valuable in remote areas without grid access, it efficiently powers lighting, appliances, and various electrical devices.
