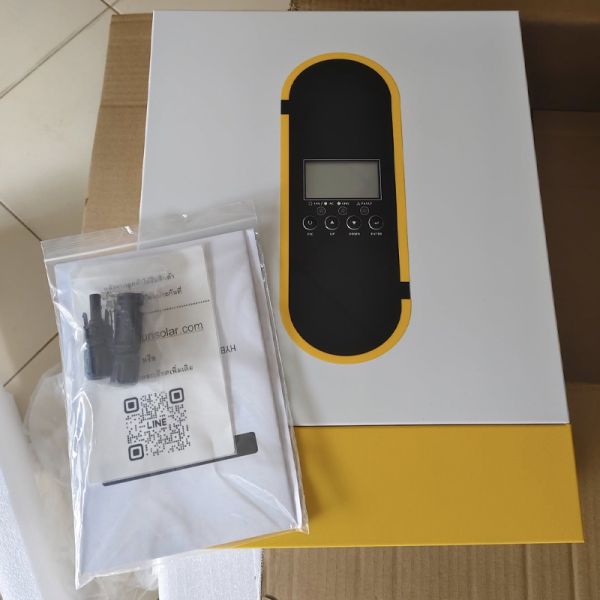

48V 6200VA Pure Sine Wave Solar Inverter Single Phase High Voltage MPPT 6500W Max PV Input for Residential Use
48V 6200VA Pure Sine Wave Solar Inverter Single Phase High Voltage MPPT 6500W Max PV Input for Residential Use
48V 6200VA Pure Sine Wave Solar Inverter Single Phase High Voltage MPPT 6500W Max PV Input for Residential Use
48V 6200VA Pure Sine Wave Solar Inverter Single Phase High Voltage MPPT 6500W Max PV Input for Residential Use
48V 6200VA Pure Sine Wave Solar Inverter Single Phase High Voltage MPPT 6500W Max PV Input for Residential Use
48V 6200VA Pure Sine Wave Solar Inverter Single Phase High Voltage MPPT 6500W Max PV Input for Residential Use
48V 6200VA Pure Sine Wave Solar Inverter Single Phase High Voltage MPPT 6500W Max PV Input for Residential Use
48V 6200VA Pure Sine Wave Solar Inverter Single Phase High Voltage MPPT 6500W Max PV Input for Residential Use
48V 6200VA Pure Sine Wave Solar Inverter Single Phase High Voltage MPPT 6500W Max PV Input for Residential Use
48V 6200VA Pure Sine Wave Solar Inverter Single Phase High Voltage MPPT 6500W Max PV Input for Residential Use
Specifications
Brand Name :
1stess
Model Number :
EM-T (PV60-500VDC) 6200-48L
Certification :
CE, IEC
Place of Origin :
China
MOQ :
1 piece
Price :
To be negotiated
Payment Terms :
L/C,T/T
Supply Ability :
2000 pieces per month
Delivery Time :
30 days
Packaging Details :
carton box
Charging Mode :
MPPT
Operating Temperature :
-10°C To 50°C
Inverter Type :
Off Grid inverter
Frequency :
50Hz/60Hz
Output Voltage :
220VAC/230VAC
Communication Interface :
RS232/RS485
Input Voltage :
230VAC
Size :
483*312*122mm
Waveform :
Pure Sine wave
Output Current :
120A
Weight :
11kg
Description
48V 6200VA Pure Sine Wave Solar Inverter
Single Phase High Voltage MPPT 6500W Max PV Input for Residential Use
Product Overview
Professional 6.2kW hybrid solar inverter with advanced MPPT technology for efficient residential solar power systems.
Key Features
  • Dual output for smart load management
  • Lithium battery activation function by PV or utility
  • Compatible with LiFePO4 battery via RS485 communication
  • 500Vdc maximum PV input voltage
  • Built-in MPPT 120A charge controller
  • Capable of operating without battery backup
  • Detachable dust cover for harsh environments
  • Optional WiFi remote monitoring capability
  • Multiple output priority modes: UTL, SOL, SBU, SUB
  • Equalization function to optimize battery performance and extend lifecycle
Technical Specifications
Model EM6200-48L
Input Parameters
Nominal Voltage 230VAC
Acceptable Voltage Range 170-280VAC; 90-280VAC
Frequency 50/60 Hz (Auto sensing)
Output Parameters
Nominal Voltage 220/230VAC ±5%
Surge Power 12400VA
Frequency 50/60Hz
Waveform Pure Sine Wave
Transfer Time 10ms (Personal Computer); 20ms (Home Appliances)
Peak Efficiency 94%
Overload Protection 5s @ >=140% load; 10s @ 100%~140% load
48V 6200VA Pure Sine Wave Solar Inverter Single Phase High Voltage MPPT 6500W Max PV Input for Residential Use 48V 6200VA Pure Sine Wave Solar Inverter Single Phase High Voltage MPPT 6500W Max PV Input for Residential Use 48V 6200VA Pure Sine Wave Solar Inverter Single Phase High Voltage MPPT 6500W Max PV Input for Residential Use 48V 6200VA Pure Sine Wave Solar Inverter Single Phase High Voltage MPPT 6500W Max PV Input for Residential Use 48V 6200VA Pure Sine Wave Solar Inverter Single Phase High Voltage MPPT 6500W Max PV Input for Residential Use 48V 6200VA Pure Sine Wave Solar Inverter Single Phase High Voltage MPPT 6500W Max PV Input for Residential Use
Applications
This hybrid solar inverter serves as a critical component in modern solar power systems, converting DC power from photovoltaic panels into usable AC power for residential and commercial applications.
Grid Connection Features
  • Synchronizes with utility grid for seamless integration
  • Maximum Power Point Tracking for optimal energy harvesting
  • Net metering compatibility for energy credit benefits
  • Advanced safety features including anti-islanding protection
  • Compact design for easy installation
  • Comprehensive monitoring capabilities via mobile apps or web interfaces
Ideal for homes, offices, and remote areas requiring reliable power supply. Suitable for powering lighting, appliances, and various electrical devices in both grid-tied and off-grid configurations.
