48V 6200W Single Phase High Voltage Pure Sine Wave Inverter with 6500W PV MPPT Charger for Personal Computer
48V 6200W Single Phase High Voltage Pure Sine Wave Inverter with 6500W PV MPPT Charger for Personal Computer
48V 6200W Single Phase High Voltage Pure Sine Wave Inverter with 6500W PV MPPT Charger for Personal Computer
48V 6200W Single Phase High Voltage Pure Sine Wave Inverter with 6500W PV MPPT Charger for Personal Computer
48V 6200W Single Phase High Voltage Pure Sine Wave Inverter with 6500W PV MPPT Charger for Personal Computer
48V 6200W Single Phase High Voltage Pure Sine Wave Inverter with 6500W PV MPPT Charger for Personal Computer
48V 6200W Single Phase High Voltage Pure Sine Wave Inverter with 6500W PV MPPT Charger for Personal Computer
48V 6200W Single Phase High Voltage Pure Sine Wave Inverter with 6500W PV MPPT Charger for Personal Computer
48V 6200W Single Phase High Voltage Pure Sine Wave Inverter with 6500W PV MPPT Charger for Personal Computer
48V 6200W Single Phase High Voltage Pure Sine Wave Inverter with 6500W PV MPPT Charger for Personal Computer
48V 6200W Single Phase High Voltage Pure Sine Wave Inverter with 6500W PV MPPT Charger for Personal Computer
48V 6200W Single Phase High Voltage Pure Sine Wave Inverter with 6500W PV MPPT Charger for Personal Computer
Specifications
Brand Name :
1stess
Model Number :
EM-T (PV60-500VDC) 6200-48L
Certification :
CE, IEC
Place of Origin :
China
MOQ :
1 piece
Price :
To be negotiated
Payment Terms :
L/C,T/T
Supply Ability :
2000 pieces per month
Delivery Time :
30 days
Packaging Details :
carton box
Charging Mode :
MPPT
Operating Temperature :
-10°C To 50°C
Inverter Type :
Off Grid inverter
Frequency :
50Hz/60Hz
Output Voltage :
220VAC/230VAC
Communication Interface :
RS232/RS485
Input Voltage :
230VAC
Size :
483*312*122mm
Waveform :
Pure Sine wave
Output Current :
120A
Weight :
11kg
Description
48V 6200W Single Phase High Voltage Pure Sine Wave Inverter with 6500W PV MPPT Charger
Designed for reliable power supply for personal computers and sensitive electronics, this advanced inverter system combines high-efficiency performance with smart energy management.
Key Features
  • Dual output for smart load management
  • Lithium battery activation function by PV or utility power
  • Compatible with LiFePO4 batteries via RS485 communication
  • High PV input capability up to 500V DC maximum
  • Built-in MPPT charger with 120A capacity
  • Battery-free operation capability
  • Detachable dust cover for harsh environment protection
  • Optional WiFi remote monitoring
  • Multiple output priority modes: UTL, SOL, SBU, SUB
  • Equalization function to optimize battery performance and extend lifecycle
Technical Specifications
MODEL: EM6200-48L
INPUT
Nominal Voltage 230V AC
Acceptable Voltage Range 170-280V AC; 90-280V AC
Frequency 50/60 Hz (Auto sensing)
OUTPUT
Nominal Voltage 220/230V AC ±5%
Surge Power 12400 VA
Frequency 50/60 Hz
Waveform Pure Sine Wave
Transfer Time 10ms (For Personal Computer); 20ms (For Home Appliances)
Peak Efficiency 94%
Overload Protection 5s @ >=140% load; 10s @ 100%~140% load

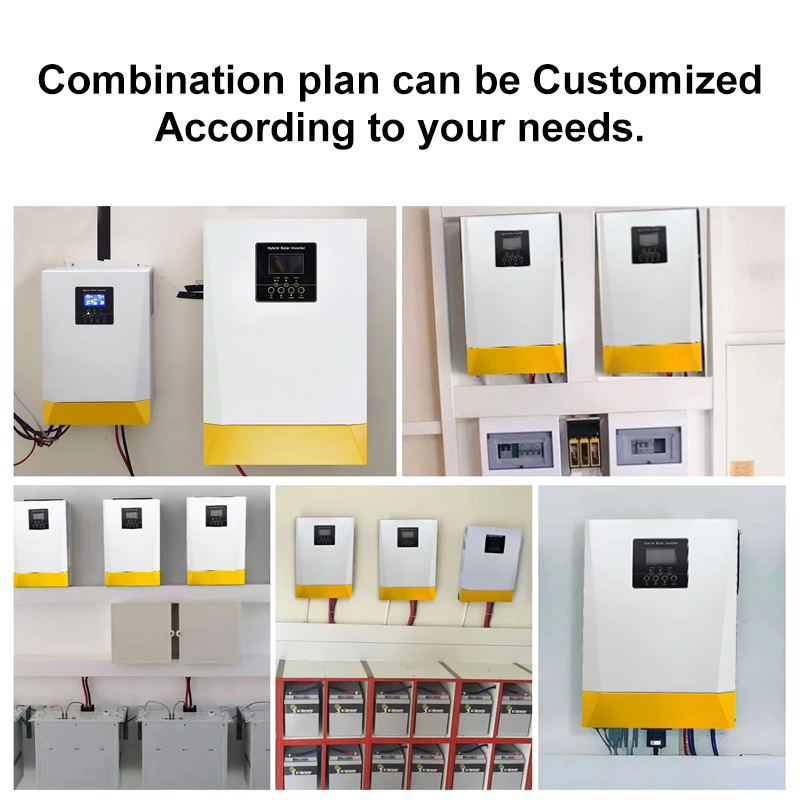

Product Images
48V 6200W Single Phase High Voltage Pure Sine Wave Inverter with 6500W PV MPPT Charger for Personal Computer 48V 6200W Single Phase High Voltage Pure Sine Wave Inverter with 6500W PV MPPT Charger for Personal Computer 48V 6200W Single Phase High Voltage Pure Sine Wave Inverter with 6500W PV MPPT Charger for Personal Computer 48V 6200W Single Phase High Voltage Pure Sine Wave Inverter with 6500W PV MPPT Charger for Personal Computer 48V 6200W Single Phase High Voltage Pure Sine Wave Inverter with 6500W PV MPPT Charger for Personal Computer
