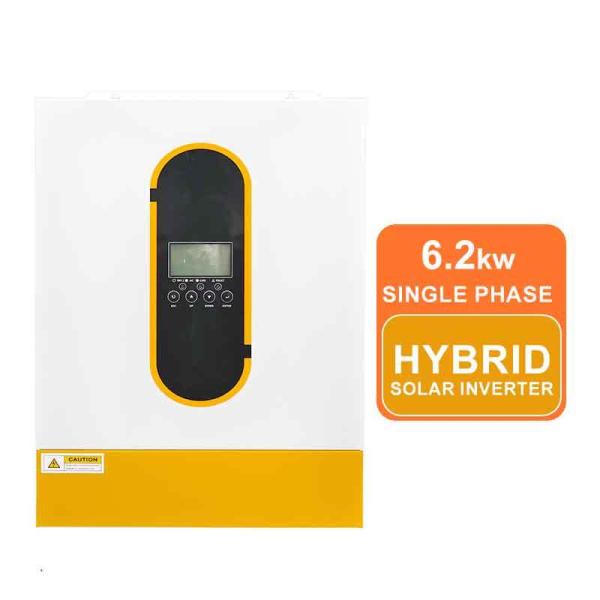

6200VA/6200W 48V Single Phase High Voltage MPPT Solar Inverter 6500W DC Input Pure Sine Wave Dual Output
6200VA/6200W 48V Single Phase High Voltage MPPT Solar Inverter 6500W DC Input Pure Sine Wave Dual Output
6200VA/6200W 48V Single Phase High Voltage MPPT Solar Inverter 6500W DC Input Pure Sine Wave Dual Output
6200VA/6200W 48V Single Phase High Voltage MPPT Solar Inverter 6500W DC Input Pure Sine Wave Dual Output
6200VA/6200W 48V Single Phase High Voltage MPPT Solar Inverter 6500W DC Input Pure Sine Wave Dual Output
6200VA/6200W 48V Single Phase High Voltage MPPT Solar Inverter 6500W DC Input Pure Sine Wave Dual Output
6200VA/6200W 48V Single Phase High Voltage MPPT Solar Inverter 6500W DC Input Pure Sine Wave Dual Output
6200VA/6200W 48V Single Phase High Voltage MPPT Solar Inverter 6500W DC Input Pure Sine Wave Dual Output
6200VA/6200W 48V Single Phase High Voltage MPPT Solar Inverter 6500W DC Input Pure Sine Wave Dual Output
6200VA/6200W 48V Single Phase High Voltage MPPT Solar Inverter 6500W DC Input Pure Sine Wave Dual Output
Specifications
Brand Name :
1stess
Model Number :
EM-T (PV60-500VDC) 6200-48L
Certification :
CE, IEC
Place of Origin :
China
MOQ :
1 piece
Price :
To be negotiated
Payment Terms :
L/C,T/T
Supply Ability :
2000 pieces per month
Delivery Time :
30 days
Packaging Details :
carton box
Charging Mode :
MPPT
Operating Temperature :
-10°C To 50°C
Inverter Type :
Off Grid inverter
Frequency :
50Hz/60Hz
Output Voltage :
220VAC/230VAC
Communication Interface :
RS232/RS485
Input Voltage :
230VAC
Size :
483*312*122mm
Waveform :
Pure Sine wave
Output Current :
120A
Weight :
11kg
Description
6200VA/6200W 48V Single Phase High Voltage MPPT Solar Inverter
6500W DC Input Pure Sine Wave Dual Output Solar Inverter with advanced power management capabilities.
Key Features
  • Dual output for smart load management
  • Lithium battery activation function by PV or utility power
  • Compatible with LiFePO4 batteries via RS485 communication
  • High PV input up to 500V DC maximum
  • Built-in MPPT charge controller with 120A capacity
  • Capable of operating without battery backup
  • Detachable dust cover for harsh environmental conditions
  • Optional WiFi remote monitoring capability
  • Multiple output priority modes: UTL, SOL, SBU, SUB
  • Equalization function to optimize battery performance and extend lifecycle
Technical Specifications
INPUT
Model EM6200-48L
Nominal Voltage 230V AC
Acceptable Voltage Range 170-280V AC; 90-280V AC
Frequency 50/60 Hz (Auto sensing)
OUTPUT
Nominal Voltage 220/230V AC ±5%
Surge Power 12400VA
Frequency 50/60Hz
Waveform Pure Sine Wave
Transfer Time 10ms (For personal computer); 20ms (For home appliances)
Peak Efficiency 94%
Overload Protection 5s @ >=140% load; 10s @ 100%~140% load
