1stess EMT Series 3.6kW–11kW Off-Grid Solar Inverter with MPPT and Dual Outputs
1stess EMT Series 3.6kW–11kW Off-Grid Solar Inverter with MPPT and Dual Outputs
1stess EMT Series 3.6kW–11kW Off-Grid Solar Inverter with MPPT and Dual Outputs
1stess EMT Series 3.6kW–11kW Off-Grid Solar Inverter with MPPT and Dual Outputs
1stess EMT Series 3.6kW–11kW Off-Grid Solar Inverter with MPPT and Dual Outputs
1stess EMT Series 3.6kW–11kW Off-Grid Solar Inverter with MPPT and Dual Outputs
1stess EMT Series 3.6kW–11kW Off-Grid Solar Inverter with MPPT and Dual Outputs
1stess EMT Series 3.6kW–11kW Off-Grid Solar Inverter with MPPT and Dual Outputs
1stess EMT Series 3.6kW–11kW Off-Grid Solar Inverter with MPPT and Dual Outputs
1stess EMT Series 3.6kW–11kW Off-Grid Solar Inverter with MPPT and Dual Outputs
Specifications
Protectionfeatures :
Overload, Short Circuit, Over Temperature
Rated Battery Voltage :
600V
Communication Interface :
RS232/RS485
Input Voltage :
DC 24V
Certification :
CE
Displaytype :
LCD
Payment Terms :
L/C,D/A,D/P,T/T
Productname :
Off Grid Hybrid Solar Inverter
Output Current :
160A
Inputvoltage :
48V DC
Frequency :
50Hz/60Hz
Place of Origin :
CHINA
MOQ :
1
Weight :
3.8kg
Battery Type :
Li-ion/Lead-acid
Batterytype :
Lithium-ion / Lead Acid
Size :
330*278*98mm
Charging Mode :
MPPT
Brand Name :
1STESS
Powercapacity :
5kW
Description
1stess EMT Series 3.6kW–11kW Off-Grid Solar Inverter with MPPT and Dual Outputs
Flexible Solar Power for Residential and Small Commercial Projects
The 1stess EMT Series off-grid solar inverter combines solar charging, battery charging and DC-to-AC conversion in one unit. Designed for single-phase 220/230V applications, this range helps installers configure solar power systems for homes, retail shops, offices and other appropriately sized loads.
Integrated MPPT Solar Charging
The built-in MPPT solar charge controller manages photovoltaic input to maximize solar energy capture. Maximum solar charging current ranges from 100A to 160A, depending on the model.
The series supports a maximum PV open-circuit voltage of 500V DC. PV string design must account for each model's MPPT operating range, input current limit and maximum PV array power.

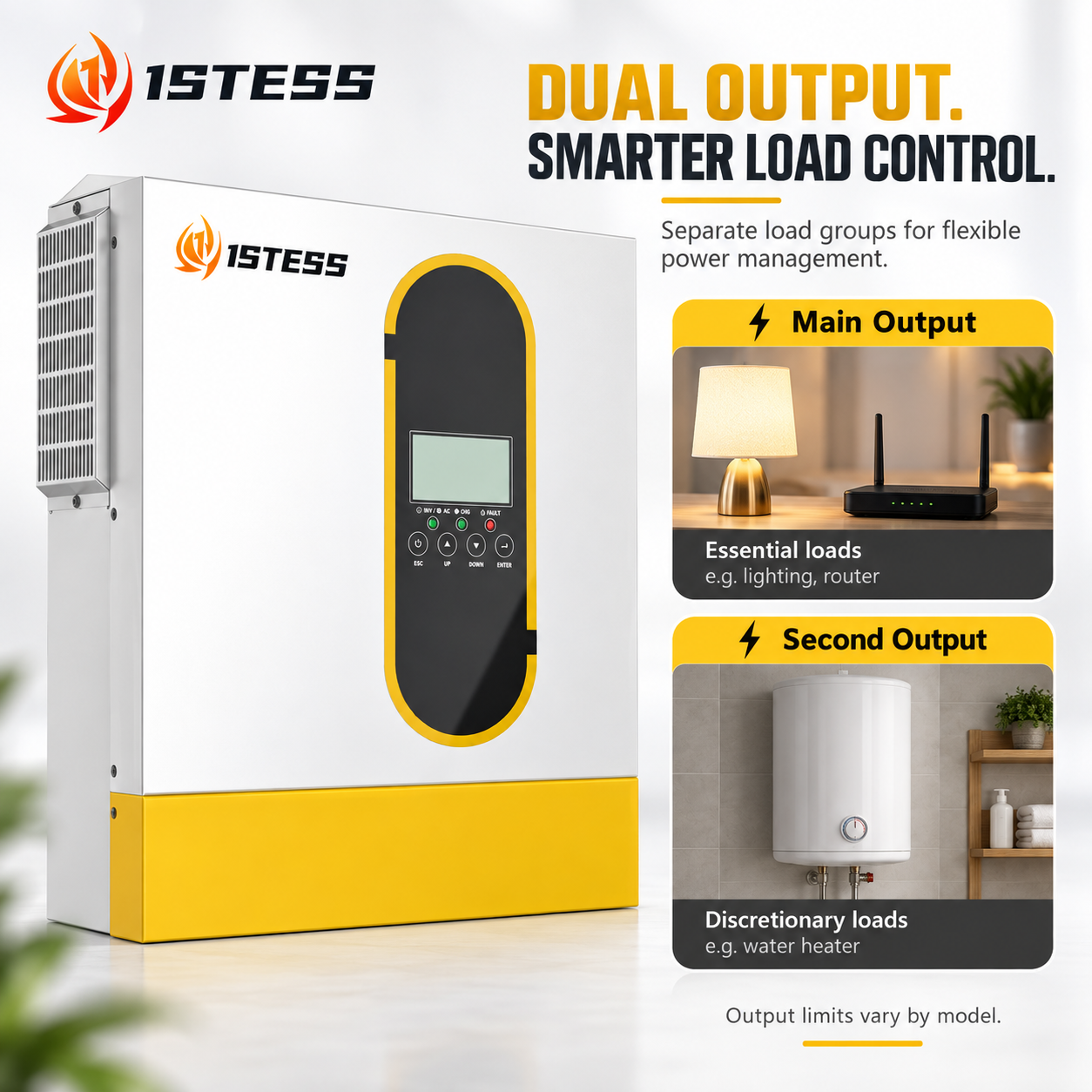

Dual Outputs for Flexible Load Management
Main and second AC outputs allow installers to separate load groups within the system. This supports prioritization of essential loads over discretionary equipment.
Both outputs share the inverter's total output capacity. Their individual ratings cannot be added together to calculate available system power.

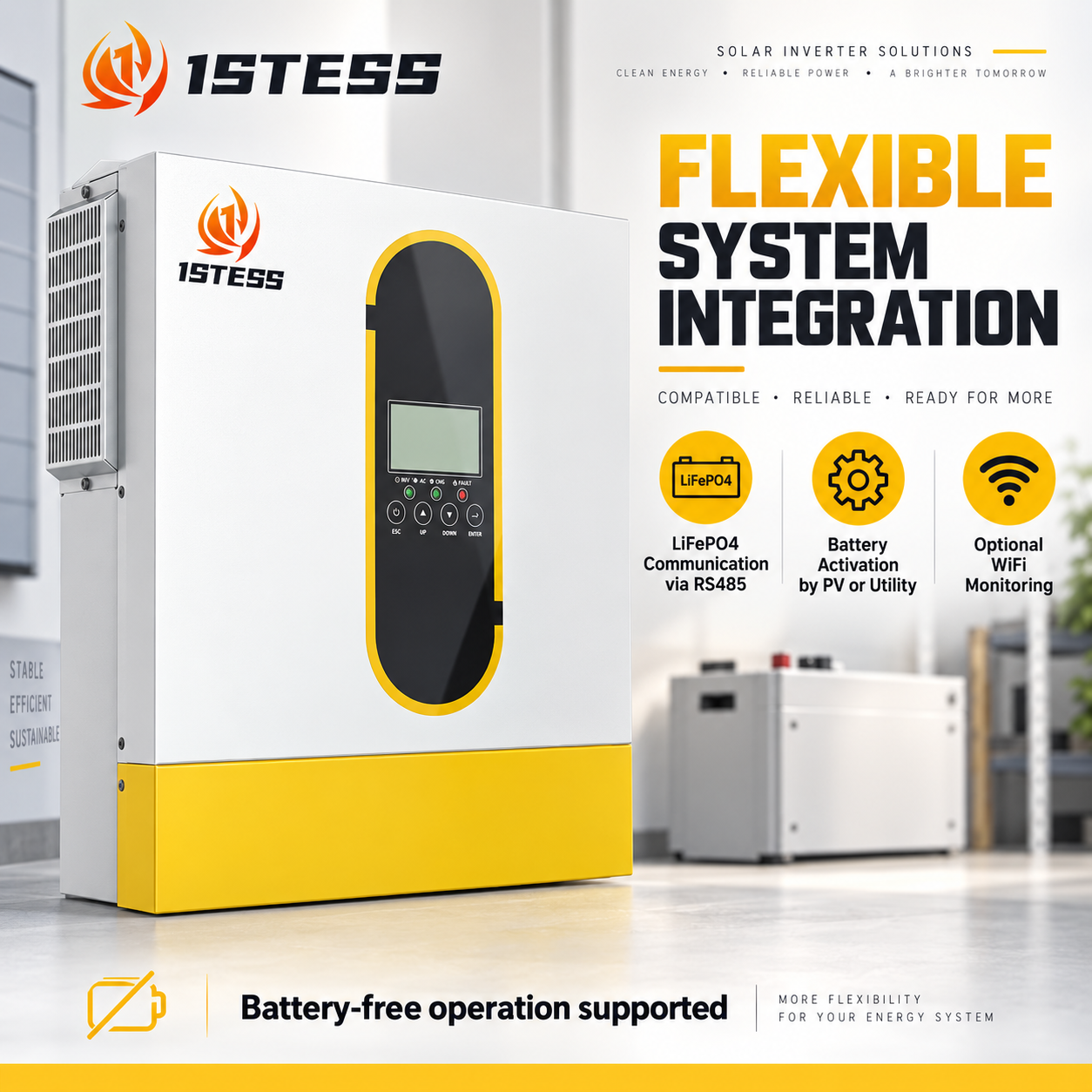

Lithium Battery Integration via RS485
The EMT Series supports communication with compatible LiFePO4 batteries through RS485. Battery activation by PV or utility power provides additional commissioning flexibility.
The 3.6kW and 4.2kW models use a nominal 24V battery system, while the 6.2kW and 11kW models use a nominal 48V battery system.

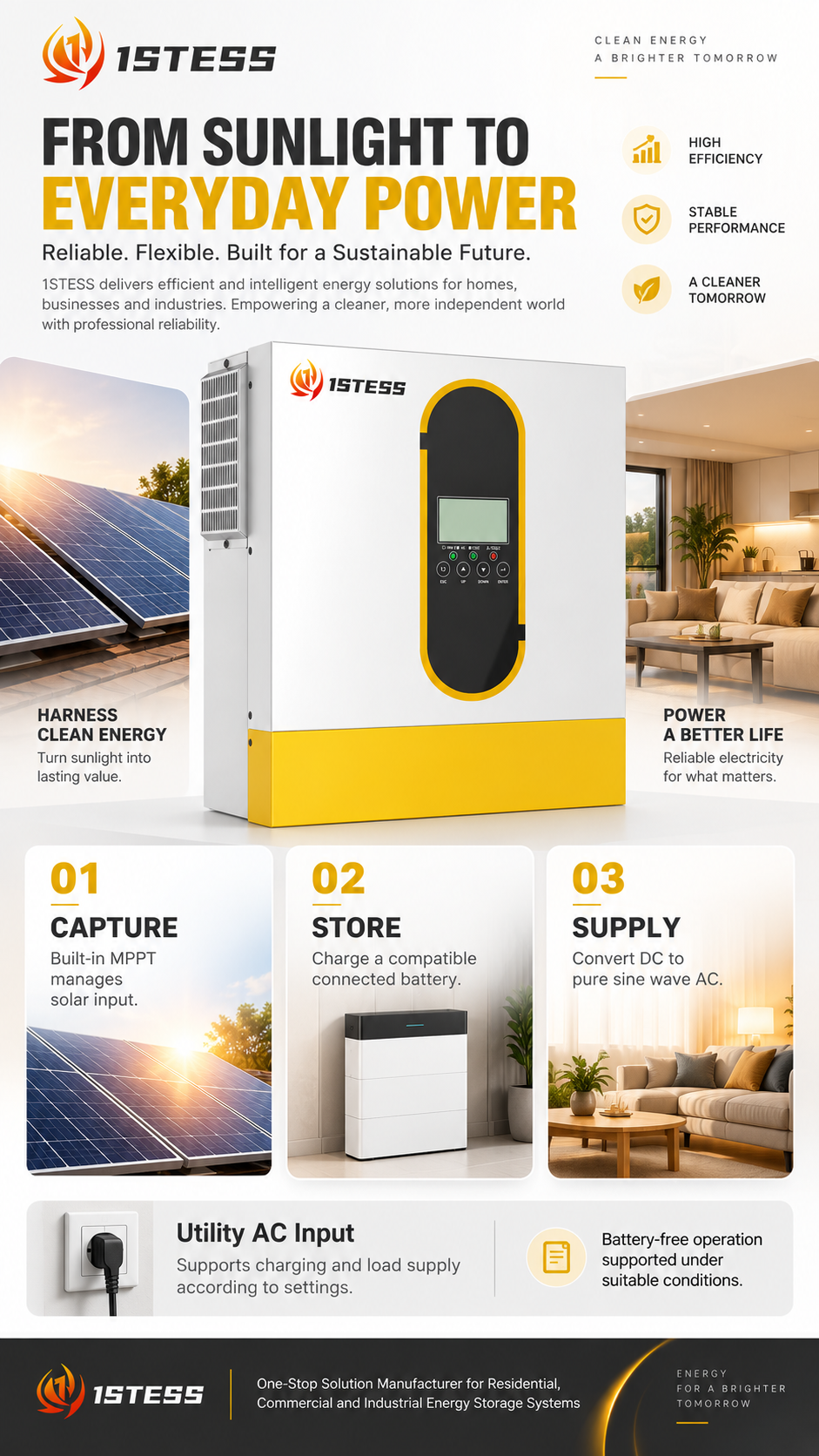

How the Solar Inverter Works
Solar panels supply DC power to the inverter's integrated MPPT stage. The system can supply connected loads and charge connected batteries depending on operating mode, available solar power and load demand.
The inverter converts DC power into pure sine wave AC power for compatible equipment. A connected battery provides energy when solar generation is insufficient, while utility AC input supports charging and load supply.

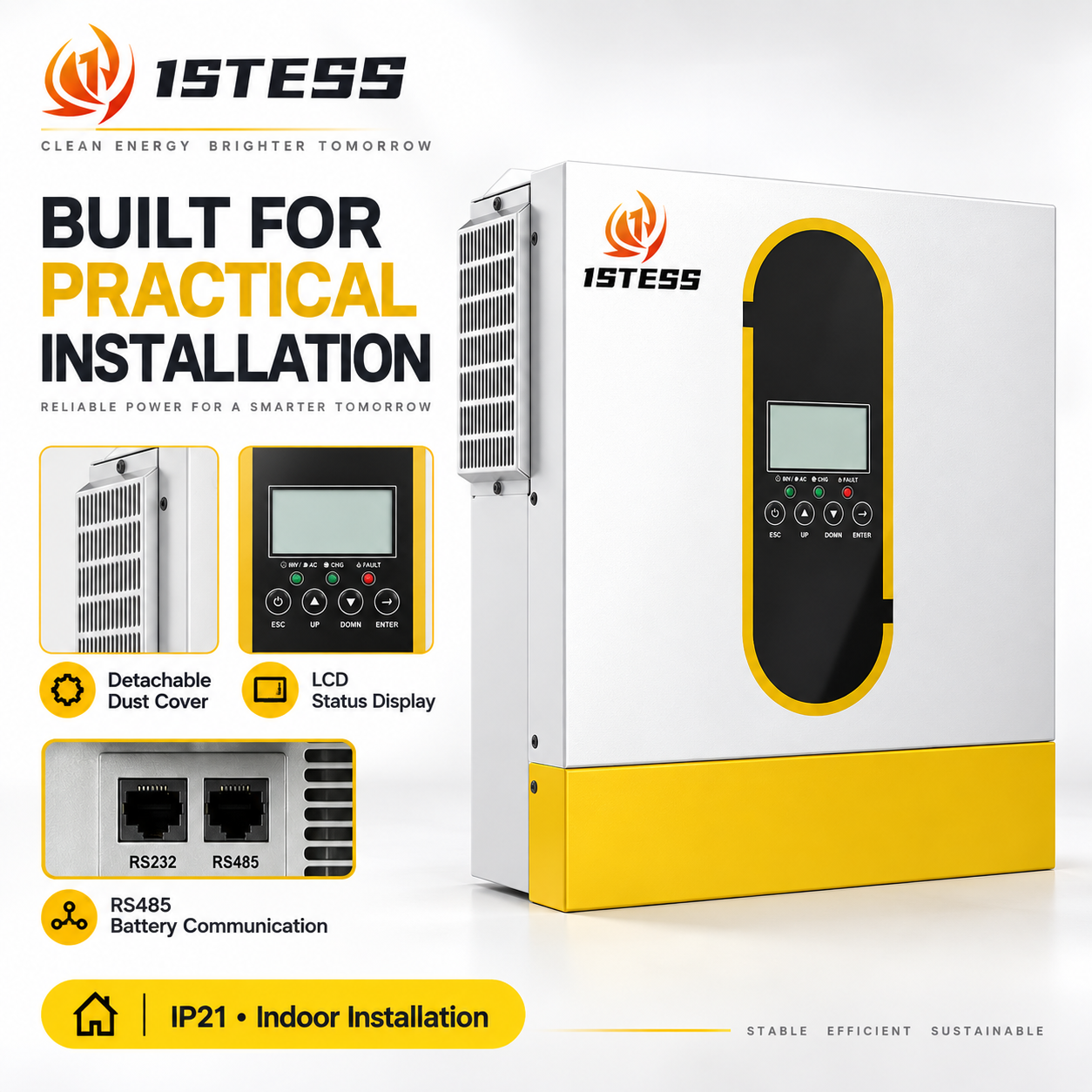

Practical Installation and Monitoring
An LCD display provides local operating information, while optional WiFi monitoring supports remote system visibility. The detachable dust cover facilitates routine servicing.
With an IP21 protection rating, the EMT Series is intended for suitable indoor installation. Installation locations must meet specified environmental limits and provide adequate ventilation and clearances.

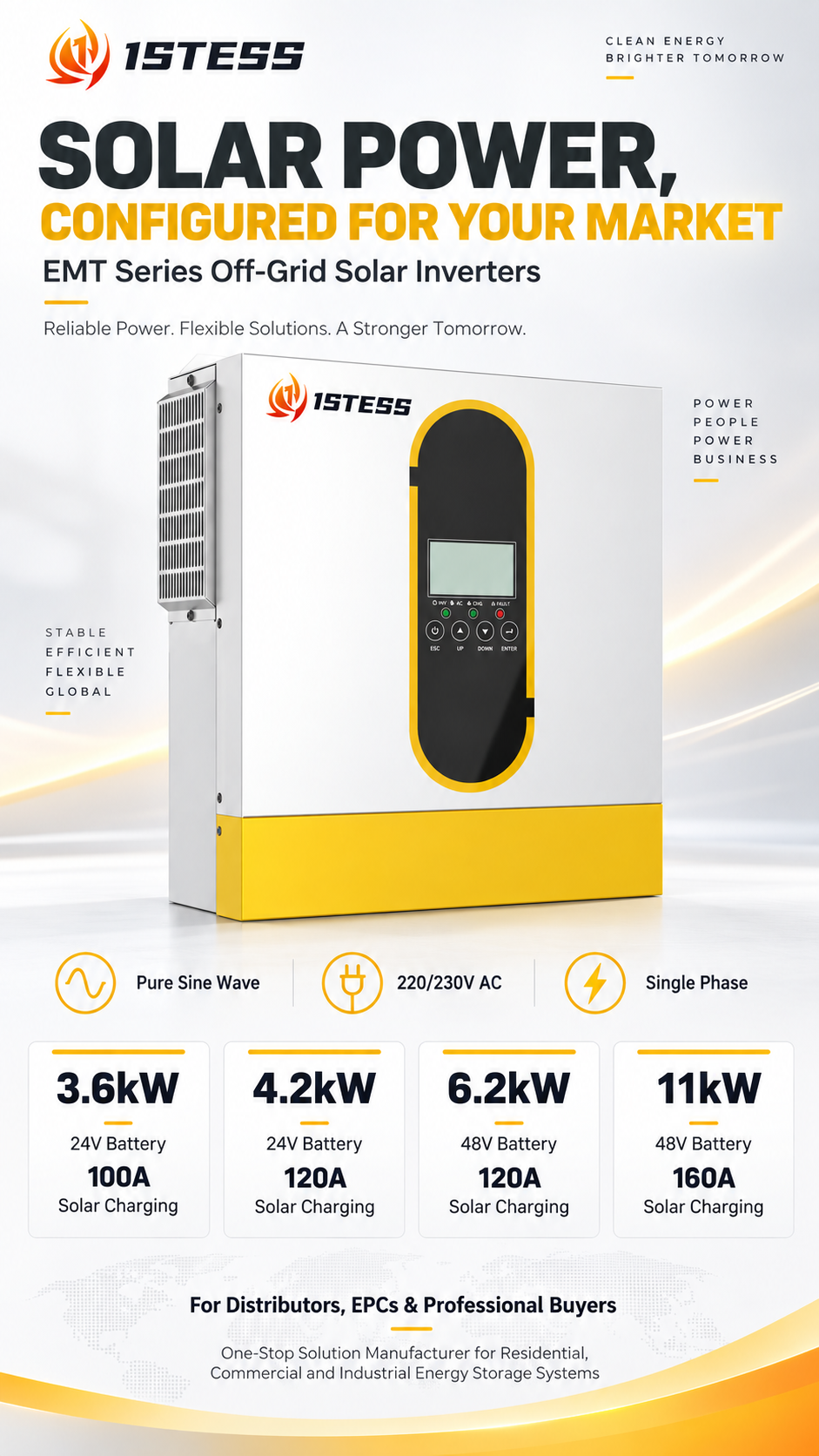

Model Specifications
Specification 3.6kW 4.2kW 6.2kW 11kW
Maximum total output power 3,600W 4,200W 6,200W 11,000W
Nominal battery voltage 24V DC 24V DC 48V DC 48V DC
Maximum PV array power 4,000W 6,200W 9,000W 11,000W
Maximum solar charging current 100A 120A 120A 160A
Maximum second-output power 3,600W 4,200W 6,200W 5,500W
Shared features include single-phase 220/230V AC output, pure sine wave operation, dual outputs, RS485 lithium battery communication and IP21 protection.
1stess EMT Series 3.6kW–11kW Off-Grid Solar Inverter with MPPT and Dual Outputs 1stess EMT Series 3.6kW–11kW Off-Grid Solar Inverter with MPPT and Dual Outputs 1stess EMT Series 3.6kW–11kW Off-Grid Solar Inverter with MPPT and Dual Outputs 1stess EMT Series 3.6kW–11kW Off-Grid Solar Inverter with MPPT and Dual Outputs 1stess EMT Series 3.6kW–11kW Off-Grid Solar Inverter with MPPT and Dual Outputs
Request a Project-Based Quotation
Sourcing solar inverters for distribution or installation projects? Provide 1stess with your destination market, required quantity, continuous and starting loads, PV array specifications, battery details and monitoring requirements.
Our team will review your requirements and discuss the appropriate EMT Series configuration for your solar power and battery backup application.
