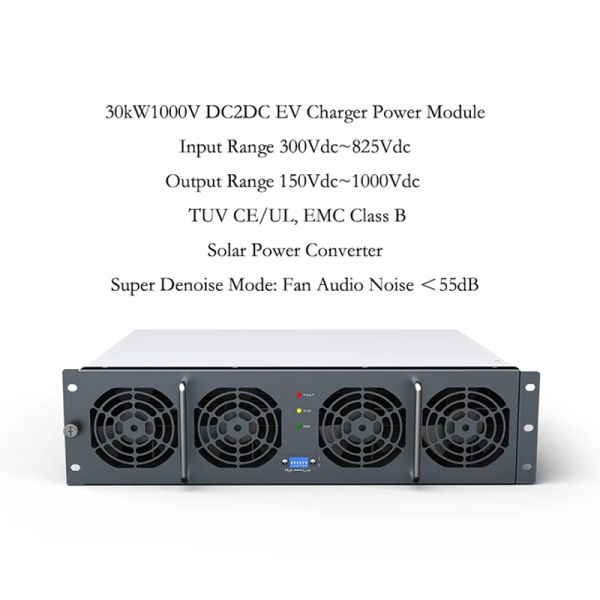

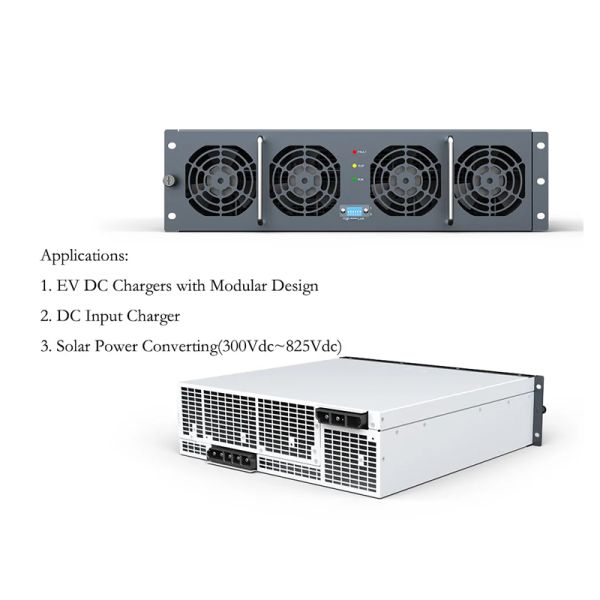

High Voltage MPPT Solar Inverter Dcdc Power Module 30kw for DC Input Charger
High Voltage MPPT Solar Inverter Dcdc Power Module 30kw for DC Input Charger
High Voltage MPPT Solar Inverter Dcdc Power Module 30kw for DC Input Charger
High Voltage MPPT Solar Inverter Dcdc Power Module 30kw for DC Input Charger
High Voltage MPPT Solar Inverter Dcdc Power Module 30kw for DC Input Charger
High Voltage MPPT Solar Inverter Dcdc Power Module 30kw for DC Input Charger
High Voltage MPPT Solar Inverter Dcdc Power Module 30kw for DC Input Charger
High Voltage MPPT Solar Inverter Dcdc Power Module 30kw for DC Input Charger
Specifications
Description

Main features:

  1. high frequency transformer isolation
  2. full hot plug design
  3. super denoise mode less than 55dB fan audio noise
  4. solar power input support by MPPT
  5. wide output range of voltage from 150Vdc to 1000Vdc, workable on a wide range of electric vehicles
  6. constant current for higher output power at low output voltage
  7. wide input DC voltage from 300V to 825Vdc
  8. intelligent automatic discharging of residual charge
  9. super standby power consumption 2W
  10. ambient temperature from -40ºC to +75ºC
  11. input voltage from 260V to 530V, allowing normal function under most poor grid conditions
  12. CAN bus communication, max 48 power modules in parallel
  13. alarm and protection: 1. over/under voltage leads to automatic shutdown and power module will restart after voltage resumes normal; 2. over/short circuit leads to automatic shotdown and lock, and will restart after power off; 3. over temperature leads to automatic shotdown and power module will restart after temperature resumes normal.

Product parameters:

DC Input 300Vdc~825Vdc, max 50A, efficiency ≥95%
DC Output 30kW@above 300Vdc, 150Vdc~1000Vdc, 0~100A
Rated Power 30kW
Dimension & Weight 110mm*385mm*395mm(H*W*Dmm)/≤22.5kg
