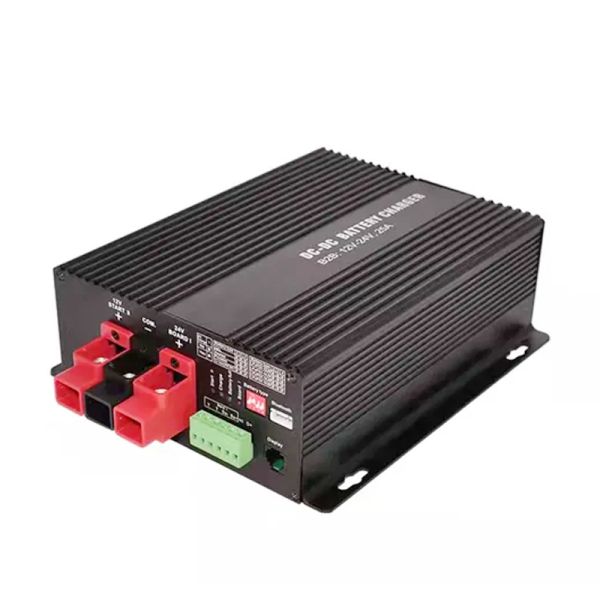

DC to DC Converter MPPT Solar Charge Controller Battery Charger
DC to DC Converter MPPT Solar Charge Controller Battery Charger
DC to DC Converter MPPT Solar Charge Controller Battery Charger
DC to DC Converter MPPT Solar Charge Controller Battery Charger
DC to DC Converter MPPT Solar Charge Controller Battery Charger
DC to DC Converter MPPT Solar Charge Controller Battery Charger
Specifications
Description

Product Description:

  • The output voltage is stabilized, free of peaks, smoothed and filtered.
  • Galvanic isolation between input and output:
  • No overvoltage at the output and thus protection of the consumer if the ground line is lost.
  • Clean, undisturbed mass ratios, even with long supply lines.
  • Stable operating voltage on site in mobile operation, e.g. Containers, trailers, roll containers etc.
  • Filtering and suppression of disturbances on the input to the output side.
  • Fully automatic continuous operation: The DC-DC converter can constantly work with the battery
  • Surveillance-free operation: multiple protection against overload, overheating, over voltage, short circuit, Misconduct and deep discharge of the battery through electronic regulation to complete
  • Switch off by built-in safety switch.

Product parameters:

Main battery " Bord "
Lead-Acid, Gel, AGM Batteries Nominal Voltage 12V
LiFePO4 Nominal Voltage 12.8V
lithium- ion( NCM) Nominal Voltage 11.1V
Capacity (Battery Size), recommended: 45-280AH
Vehicle Starter Battery "Start II":
Vehicle Starter Battery Nominal Voltage: 12V
Min. Battery Capacity (Size), recommended: 60AH
12 V / 12 V B2B Charging operation
Input Voltage Range "Start II" ,"D+" controlled: 10.5-16V
Maximum charging power: 650W
" Bord " Max. charge current 30A
Activation Control Input "D+" 8-16V
Signal Output "OK/TR", Switch Position "TR",
Cutoff Relay Bypass/max		 12V/1A
Signal Output "OK/TR", Switch Position "OK" 12V/1A
Input "T T" for Battery Temperature Sensor "Board I": YES
" Ss-" "Ss+" Inputs Sensor Cables "-" and "+" for Battery "Board I": YES
stand-by current 24mA
Main battery overvoltage protection 15.5V
weight 1.44kg
demension 190×194×70mm
Operating temperature -20-50ºC
