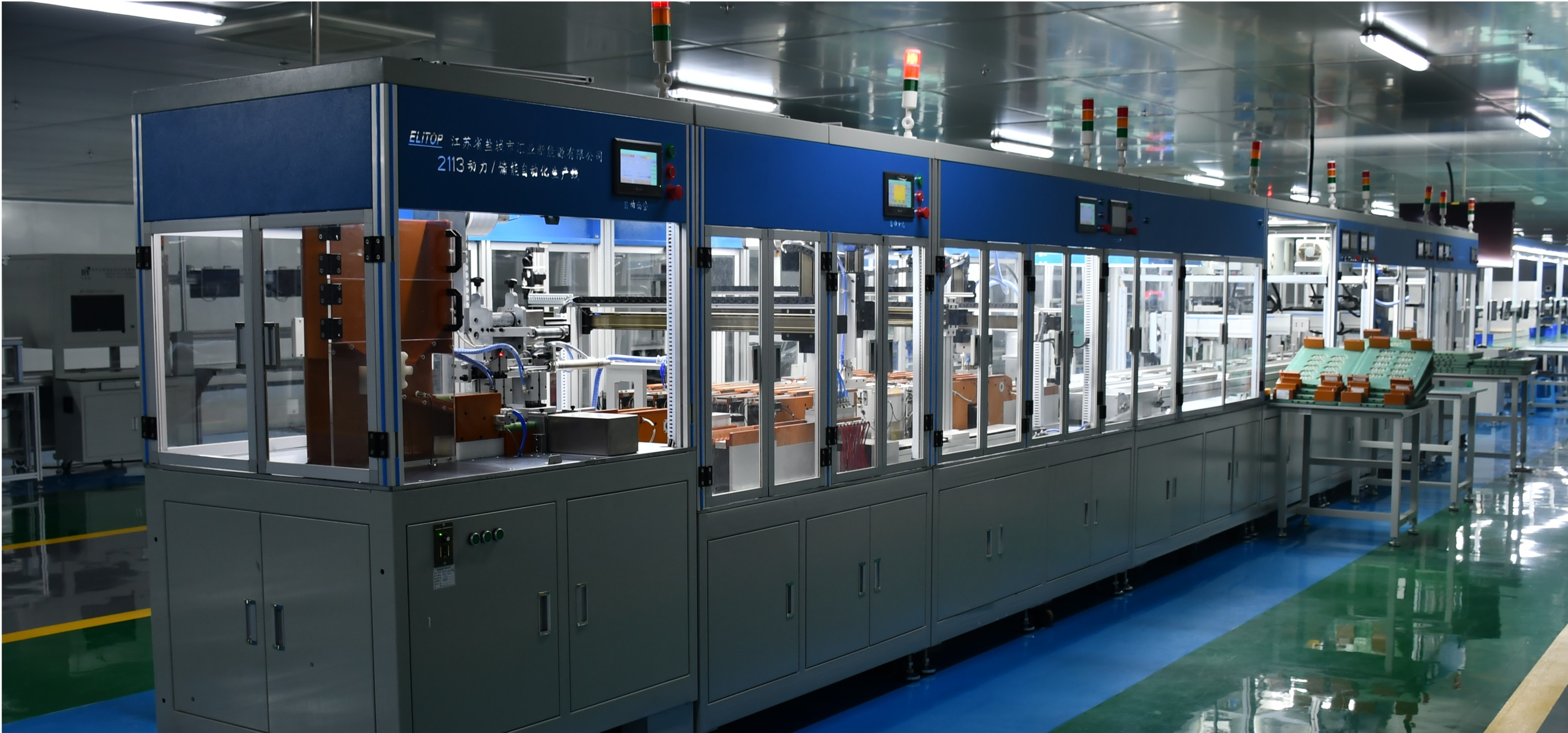

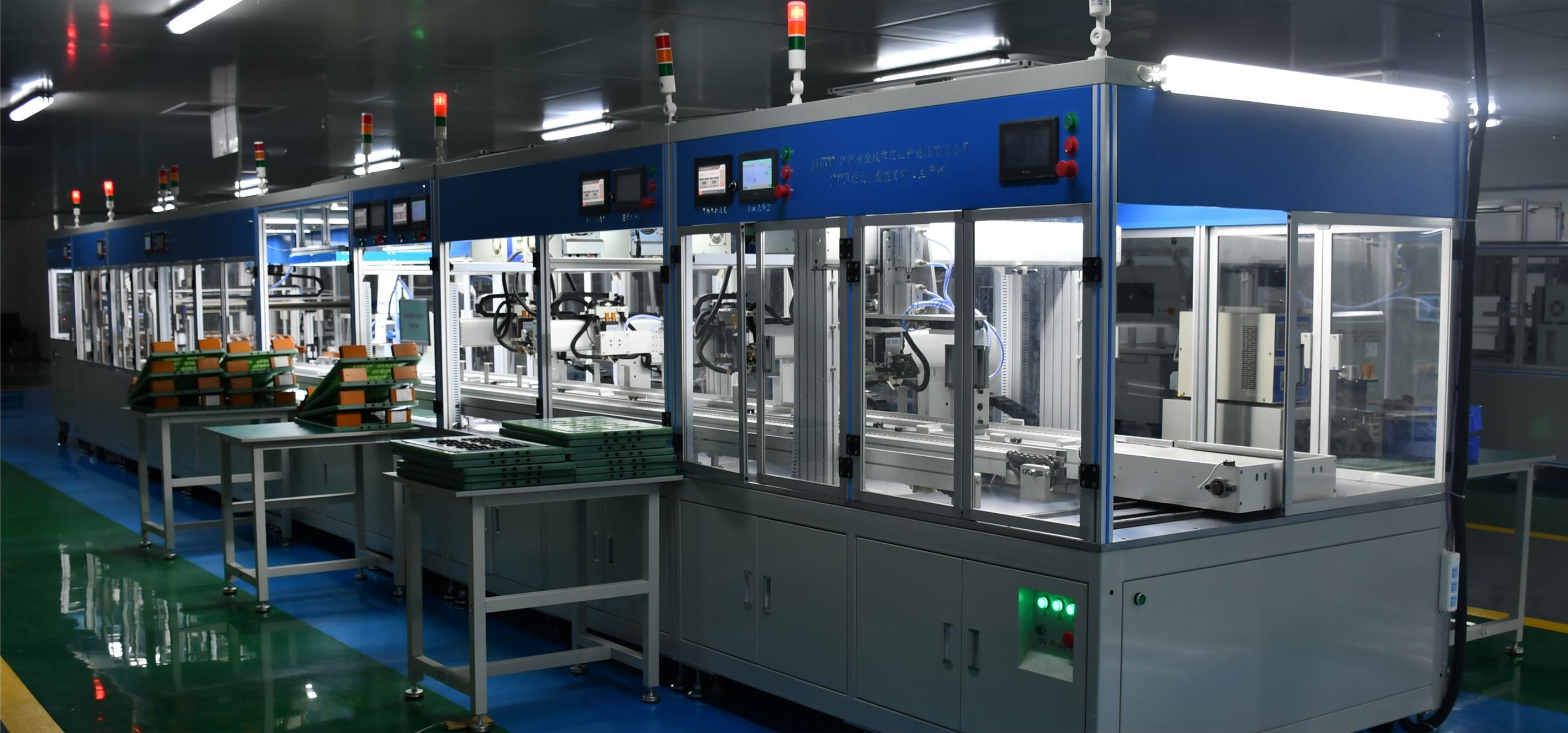

14450 21700 26650 Lithium Battery Making Machine Database Storage
Main Functions
  • Compatible with 18650/21700 batteries
  • Used for power/energy storage battery packs semi-automated production
  • Automatically takes battery cells according to set quantity and places them into plastic boxes to prevent chaotic arrangement
  • Excellent product consistency and stable quality
  • Customizable battery cell scan code function with database storage and barcode traceability data generation
Product Specifications
ParameterSpecification
PowerAC380v 50/60Hz
Air Pressure0.4-0.8Mpa, Air source must be used with filter device to ensure water-free impurities
Width of Insulating Paper100mm ±1mm, inner diameter coil 75mm, outer 350mm
Highland Barley Paper Thickness0.1MM-0.3MM
Insulating Paper Size18650-outer diameter 17.5mm, inner diameter 10mm
21700-outer diameter 20mm, inner diameter 11mm
Pad Power400W variable frequency motor debugging with buffer power to prevent core damage
Test InstrumentHK3562 (12 road test)
Voltage0.00000V-6.0000V
Internal Resistance000.00-999.99mΩ
Channel5 OK, 1NG
Communication InterfaceRS485
Test Method4-wire system
Suitable Cells18650 and 21700 cells compatible
SizeL11000×W1500×H1680MM
Weight2000KG
Positive and Negative Electrode Detector
ParameterSpecification
Device FunctionFor cylindrical cells, collects positive and negative electrode data via camera, compares with sample data, analyzes results (NG or OK), marks NG positions to confirm battery orientation before spot welding
PowerAC220V, 0.6KW 50/60HZ
Cell RangeCylindrical cell 14430/14500/18500/18650/21700/32650
Detection Range400×300mm, custom-made for larger sizes
Detection Speed100PCS cell/1.5S
Testing Accuracy100% for non-deformed or non-rusty cells
SizeL1050×W1025×H1600MM
Weight120KG
BT-850B-10000A Transistor Double-Side Automatic Spot Welding Machine
ParameterSpecification
PowerAC220V 4KW 50/60HZ
Air Pressure0.4-0.8Mpa, Air source must be used with filter device to ensure water-free impurities
Spot Welding Power8000B Transistor spot welding power supply, quantity 2
Welding Output CurrentMax 10000A
Spot Welding DataCAD data import/dot matrix data import/manual input
Run PowerServo electric
Cell Range14300/14500/18500/18650/21700/26650/26700/32650/32700
ProductivityApproximately 4000-5000 PCS cells/hour
Max StrokeX axis: 200-600mm, Y axis: 200-400mm
Nickel Sheet Thickness0.1mm-0.2mm (0.15-0.2mm thickness nickel sheet needs slotted)
Bump welding nickel sheet 0.21-0.4mm
Spot Welding PinImported diameter 1.7×100mm (spot welding)
Imported diameter 4-4×6 flat-head welding needle (for bump welding)
SizeL1630×W850×H1630MM
Weight200KG
