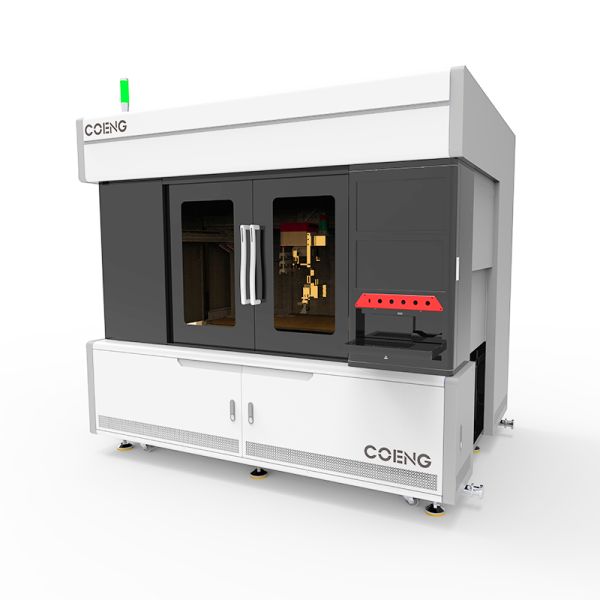

Continuous automatic laser welding machine with protective cover
Continuous automatic laser welding machine with protective cover
Specifications
Description

Product Description:

This model is equipped with a closed protective cover. It integrates important components such as a continuous fiber laser, a gantry motion structure, a high-power galvanometer welding head, a water cooling system, and a PC control system. It features high power, fine beam quality, maintenance-free operation, and high electro-optical conversion efficiency. It can perform welding of any planar geometric shapes such as points, lines, and circles. It is an efficient, safe, and stable high-power fiber laser welding machine, and exhibits excellent performance in lithium battery welding processes.

Product parameters:

Laser parameters

Power of laser

1000W,1500W,2000W,3000W,4000W,6000W

Wavelength of laser

1070±10nm

Power adjustable range

10-100%

Light fiber core

20μm/50μm/100μm(Optional according to application requirements)

Mode of cooling

Constant temperature water cooling

Operating temperature

10℃-35℃

Other Parameters

Effective travel distance

The X axis 900(800)MM The Y axis 600MM The Z axis400MM

Machine weight

<1000KG

Overall dimensions

L1650×W1520×H2200mm
