Specifications
Brand Name :
Zynshield
Model Number :
ZIPC02NC
Certification :
FCC, CE, RoHS
Place of Origin :
China
MOQ :
1
Price :
221USD
Payment Terms :
T/T
Supply Ability :
1000pieces
Delivery Time :
7 working days
CPU :
Intel® 12th/13th/14th Gen LGA1700 processors
RAM :
4*U-DIMM DDR5 slots, up to 5600MHz
SSD :
3*M.2 NVMe 2280; 8~12 SATA 3.0 ports
Etehrnet :
1*10Gbps LAN; 2*2.5Gbps LAN
Expansion :
2*PCIe X16 slots; 2*PCIe X4 slots
Dimension :
244mm*244mm
Description

Products Highlight

  • 244mm x 244mm standard M-ATX form factor, ATX 24+8+4Pin power supply

  • Intel W680 chipset, workstation/NAS server-grade, a stable choice for commercial platforms

  • LGA1700 socket, compatible with Intel 12th/13th/14th Gen CPUs

  • 4x U-DIMM DDR5 slots, supports pure ECC server memory, 5600MHz (downward compatible)

  • 1x 10Gb Ethernet port, Marvell AQC113CS chip, 10G network speed

  • Dual 2.5G Ethernet ports, Intel i226-V/i226-LM, supports vPro remote management

  • 3x SFF-8643 (2 native, 1 via ASM1164), 12x SATA ports in total

  • 3x M.2 slots: 2x PCIe 4.0 x4, 1x PCIe 3.0 x4

  • 2x PCIe x16 slots: Gen5 x16 (single slot) / Gen4 x8 (dual slots)

  • 1x Type-C (USB 3.2 + DP), theoretical speed 10G, supports display output

  • Dual HDMI 2.0 + Dual DP 1.4a + Type-C (DP signal), 5 display interfaces in total

  • 2x USB 3.2 (10G) + 2x USB 3.2 (10G) + 2x USB 2.0, 6 USB ports in total

  • Built-in 1x USB 3.0 header + 1x Type-E header

  • 1x ALC897 audio chip, supports microphone input and audio output

Products Datasheet


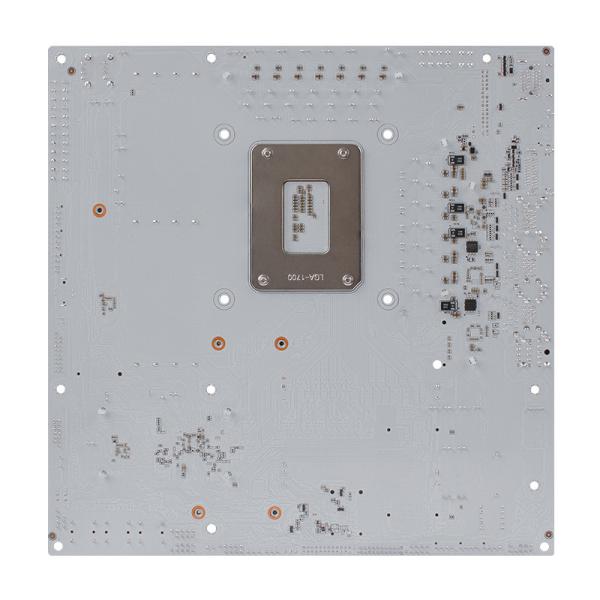

Motherboard Features - 8-layer white PCB
- Full protection (supports all USB, audio, and network interfaces)
- PCI-E x16 signal supports automatic splitting and multi-Gen4x8 signals + Gen4x8 signal
Processor - Supports compatible/12th/13th/14th Gen (LGA1700 or higher CPUs)
- Note: VPO feature requires 15-1X500 or higher processors; unsupported models need additional support
- Default support for 128W TDP processors; K-series processors not recommended
- Recommended: 1500T or similar new processors for low power consumption and long-term use
Memory - Supports standard DIMM-DDR5 memory
- 4x U-DIMM DDR5 quad-channel memory slots
- DDR5 default support: 5600MHz (Note: 12th Gen processors only support 4800MHz)
- Max single RAM capacity: 32GB; Max total capacity: 128GB (4 slots)
Storage - 2x M.2 NVMe PCIe4.0 x4 / 1x M.2 NVMe PCIe3.0 x4 (total 3x M.2 slots)
- 3x SFF-8643 (based on SFF-8643-L and Z quantum signals; SFF-8643-3 for ASM1164 expansion)
Network - 1x MARVELL AQC113C 10G RJ45
- 1x Intel I226-V 2.5G RJ45
- 1x Intel I226-M 2.5G RJ45 (supports vPro remote management)
Display - CPU-integrated graphics:
- 2x HDMI 2.0 (supports 4K@60Hz)
- 2x DP 1.4 (supports 8K@60Hz)
- 1x Type-C (supports 8K@60Hz)
Expansion - 2x PCIe3.0 x4 slots (supports 64-bit network/expansion cards)
- 2x PCI-E x16 slots (supports network/star cards)
- 1x PCIe5.0 x16 shielded slot (isolated wide PCIe4.0 x8 signal)
Power Supply - ATX 24Pin (main power)
- ATX 8Pin + ATX 4Pin (CPU enhanced power)
Form Factor - ITX size: 9.5-in x 9.5-in (244mm x 244mm)
- Solid capacitor design
OS Support - Microsoft Windows 10/11 64-bit
- Linux compatible
- EFI mode only

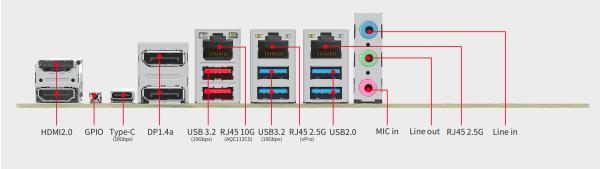

I/O Ports - 2x HDMI 2.0
- 1x GPIO
- 1x Type-C (USB3.2 Gen2, 10Gbps theoretical)
- 2x DP 1.4
- 1x 10G RJ45
- 2x 2.5G RJ45
- 4x USB3.2 (Gen2, 10Gbps)
- 2x USB2.0
- Audio jacks: Line in (blue), Line out (green), Mic (red)

CPU Comparison


Processor Generation Cores (P+E) Threads Base Clock (GHz) Max Turbo (GHz) Cache (L3) TDP (W) iGPU
i3-12100 12th 4P + 0E 8 3.3 4.3 12 MB 60 UHD 730
i5-12400 12th 6P + 0E 12 2.5 4.4 18 MB 65 UHD 730
i7-12700 12th 8P + 4E 20 2.1 (P) / 1.6 (E) 4.9 25 MB 65 UHD 770
i3-13100 13th 4P + 0E 8 3.4 4.5 12 MB 60 UHD 730
i5-13400 13th 6P + 4E 16 2.5 (P) / 1.8 (E) 4.6 20 MB 65 UHD 730
i7-13700 13th 8P + 8E 24 2.1 (P) / 1.5 (E) 5.2 30 MB 65 UHD 770
i3-14100 14th 4P + 0E 8 3.5 4.7 12 MB 60 UHD 730
i5-14400 14th 6P + 4E 16 2.5 (P) / 1.8 (E) 4.7 20 MB 65 UHD 730
i7-14700 14th 8P + 12E 28 2.1 (P) / 1.5 (E) 5.4 33 MB 65 UHD 770
i9-14900 14th 8P + 16E 32 2.0 (P) / 1.5 (E) 5.8 36 MB 65 UHD 770
