Specifications
Brand Name :
Zynshield
Model Number :
ZIPC18UC
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1
Price :
72USD/unit
Payment Terms :
T/T
Supply Ability :
3000 pcs/month
Delivery Time :
5~7 days
Packaging Details :
Standard Exportation Package
CPU :
Intel® D525
RAM :
1 * SO-DIMM DDR3 1066/1333/1600MHz MAX 8G
SSD :
1 * SATA3.0 6Gbps / 1*mSATA
GPU :
Integrated Intel UHD Graphics

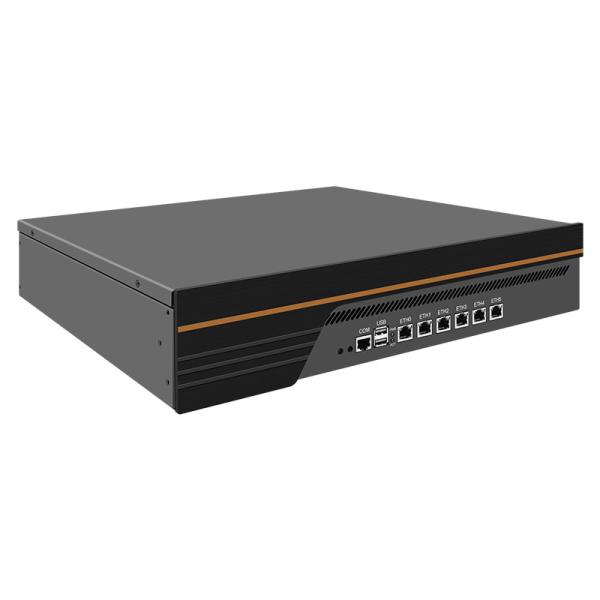

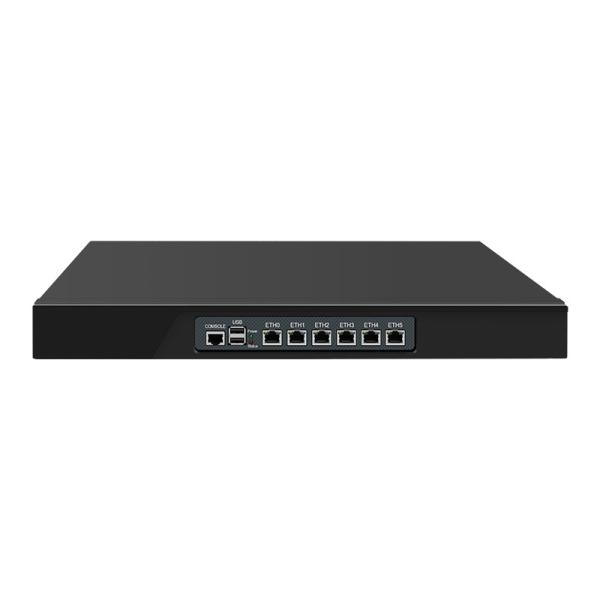

Front I/O :
4/6*Ethernet ports; 2 * USB2.0; 1*RJ45 Console

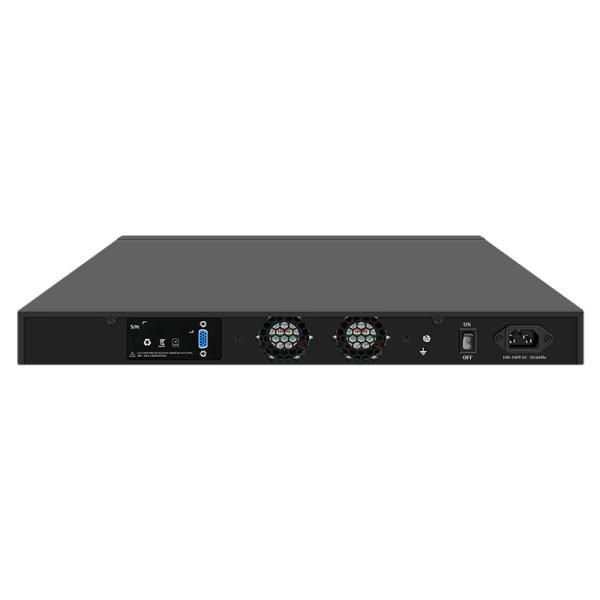

Back I/O :
1*VGA port; 1*AC Power input,1*Power Button
Expansion Slot :
N/A
General Functions :
Auto Start; Wake on LAN; PXE; Watchdog
Description

Products Highlight

  • ​​Intel 82574L​​ server-grade network card
  • ​​Supports customized​​ 9-inch / ​​1U / 2U​​ chassis (full compatibility)
  • ​​CPU processors compatible​​ with legacy ​​Windows XP Professional SP3​​ system
  • ​​Choice of two solutions:​​ ​​Quad-port​​ or ​​Hex-port​​ industrial & cybersecurity network configuration
  • ​​All fans utilize double-ball bearing​​ technology for system cooling
  • ​​Aluminum front panel​​ offers ​​complimentary laser engraving​​ for custom logos
  • ​​Requires an 800W rated power supply​​ to support ​​dual/quad-port 40G NICs​

Products Datasheet

Main CPU Intel D525
Chipeset Intel NM10
Memory 1*SO-DIMM DDR3 1066/1333/1600MHz MAX 8G
LAN IC Intel 82574L /Intel i226-V
Speed 1000Mbps/2500Mbps 2.5G adapting
Interface 4/6*Intel Ethernet Contoller RJ45
Storage M.2 N/A
mSATASATA 1*SATA3.0 6Gbps/1*mSATA
Display Header/Pin 1*VGA, 2*15 Pin max to 1920*1080@60HZ
BIOS UEFI AMI UEFI BIOS Legacy
USB Speed 2*USB2.0
Header/Pin 1*USB2.0(Array pin)
Power Supply Voltage DC12V-5A 55*25/AC 100-240V~50/60Hz
Power mode 60W Single power supply
Other GPIO 8*programmable GPIO
Watchdog 255 Levels,0-255 Seconds
Bypass N/A
COM 1*RJ45 Console
TPM N/A
4G N/A Customizable
WiFi N/A Customizable
Other NetWork WakeUp/PXE
Dimension Spec 1U(440mm*255mm*45mm)
Work Temp Temperature 0℃~60℃,Storage:-10℃~70℃
Humidity 10%~90%,Storage:5%~95%,non-condensing
Optional Ethernet Ports
Number of network ports Network card chip
4*RJ45 4*Inteli211-AT
6*RJ45 6*Inteli210-AT
6*RJ45
6*Inteli211-AT

CPU Comparison

Parameter Specification
Processor Core Single-Die Dual-Core
Clock Speed 1.80 GHz
Hyper-Threading Yes (2 cores / 4 threads)
L2 Cache 1 MB (shared)
Lithography 45 nm
TDP (Thermal Design Power) 13 W (CPU only)
Integrated Graphics Intel GMA 3150
Graphics Clock Up to 400 MHz
Memory Support DDR2 667/800 MHz
Max Memory 4 GB (Single-channel)
Memory Controller External (Northbridge)
FSB (Front-Side Bus) 667 MHz (DMI equivalent)
Socket FCBGA559
Package Size 22mm x 22mm
64-bit Support No (32-bit only)
Virtualization (VT-x) No
Turbo Boost No
Typical Platform Intel NM10 Express Chipset
Release Date Q2 2010

Products Design

Zynshield 1U Rackmount Firewall pfSense OpenWRT Debian Windows XP Intel D525 6 1G LAN

Zynshield 1U Rackmount Firewall pfSense OpenWRT Debian Windows XP Intel D525 6 1G LAN

Recommended Operating System

System Supported Notes
XP Yes Explicitly listed in specifications.
Win7 Yes Explicitly listed in specifications.
Win10 Yes Explicitly listed in specifications.
Winserver2019/2022 Yes "Windows Server" is listed; 2019/2022 should be compatible.
Centos Yes Linux-based; supported under the "Linux" category.
Ubuntu Yes Linux-based; supported under the "Linux" category.
Ros (RouterOS) Yes Linux-based; compatible as hardware supports Linux.
Panabit No FreeBSD-based; not listed in specifications.
Exsi (ESXi) No Not listed; may require specific hardware support not confirmed.
PVE (Proxmox VE) Yes Debian-based (Linux); CPU supports virtualization.
pfSense No FreeBSD-based; not listed in specifications.
Opnsense No FreeBSD-based; not listed in specifications.
Debian Yes Linux-based; supported under the "Linux" category.

Shipping Solution

  1. We offer three shipping options: DHL, UPS, and FedEx.

  2. If you maintain your own DHL, UPS, or FedEx account, we can arrange shipping using your account at no additional charge.

  3. If you have a designated freight forwarder in China, we will deliver the goods directly to your forwarder without extra fees. Furthermore, we will coordinate directly with your forwarder and prepare all necessary documentation.

  4. For your reference in freight cost estimation, should you require product packaging dimensions and weight details, please feel free to contact us. We will respond to your inquiry promptly.

Simple Customization(Laser Logo)

Zynshield 1U Rackmount Firewall pfSense OpenWRT Debian Windows XP Intel D525 6 1G LAN

Complex Customization (Silk Screen)

Phase Stage Key Activities & Deliverables
1 Inquiry • Client submits detailed customization requirements
2 Requirements Confirmation • Supplier provides feasibility previews
• Client approves technical specifications
3 Feasibility Analysis • Technical validation of design/production
• Risk assessment report
4 Quotation • Detailed cost breakdown
• Production timeline with milestones
5 Place Order • Contract execution with payment terms
• Final requirement verification (double-check)
6 Mass Production • Bulk manufacturing launch
• Quality control during production
7 Pre-Delivery Audit • Export documentation (HS code, invoice)
• Declared value verification
• Final QC inspection
8 Delivery & Support • Logistics coordination
• Real-time shipment tracking
• Post-delivery support
