Zynshield N2815 N2940 J1900 Dual LAN Dual RS232 COM 4 USB 4G Wifi VESA Wallmount Industrial Control Mini PC
Zynshield N2815 N2940 J1900 Dual LAN Dual RS232 COM 4 USB 4G Wifi VESA Wallmount Industrial Control Mini PC
Zynshield N2815 N2940 J1900 Dual LAN Dual RS232 COM 4 USB 4G Wifi VESA Wallmount Industrial Control Mini PC
Zynshield N2815 N2940 J1900 Dual LAN Dual RS232 COM 4 USB 4G Wifi VESA Wallmount Industrial Control Mini PC
Zynshield N2815 N2940 J1900 Dual LAN Dual RS232 COM 4 USB 4G Wifi VESA Wallmount Industrial Control Mini PC
Zynshield N2815 N2940 J1900 Dual LAN Dual RS232 COM 4 USB 4G Wifi VESA Wallmount Industrial Control Mini PC
Zynshield N2815 N2940 J1900 Dual LAN Dual RS232 COM 4 USB 4G Wifi VESA Wallmount Industrial Control Mini PC
Zynshield N2815 N2940 J1900 Dual LAN Dual RS232 COM 4 USB 4G Wifi VESA Wallmount Industrial Control Mini PC
Specifications
Brand Name :
Zynshield
Model Number :
ZIPC04DX
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1
Price :
51USD/unit
Payment Terms :
T/T
Supply Ability :
3000 pcs/month
Delivery Time :
5~7 days
Packaging Details :
Standard Exportation Package
Product Model :
ZIPC04DX
Processor :
Intel Celeron N2840N2940/J1900
Memory :
1x DDR3 SODIMM slots, supports up to 8GB
Storage :
1x Full-size mSATA socket; 1x SATA 2.5" HDD
Mounting :
VESA/Wall-mount/Desktop
Expansion Slots :
1x Half height Mini PCIe slot for 4G/Wifi module
Description

Products Highlight

  • Intel Celeron J1900 (Quad-core, Quad-thread)

  • 1 × SODIMM slot, supporting DDR3L 1066/1333/1600MHz memory

  • Storage: 1 × built-in SATA 2.5" HDD/SSD + 1 × mSATA slot

  • 1 × Mini-PCIe slot (expandable for Wi-Fi)

  • 2 × RS-232 serial ports

  • Compact, mini, fanless, low-power design

Products Datasheet


Processor Intel Celeron J1900
• Base: 2.0GHz, Turbo: 2.42GHz
• Quad-core/Quad-thread
Memory • Single-channel SODIMM
• DDR3L 1066/1333/1600MHz
• Max Capacity: 8GB
Display • VGA: 2560×1600@60Hz
• HDMI: 1920×1200@60Hz
• Dual Display: VGA+HDMI (Synchronous/Asynchronous)
Ethernet 1× Gigabit LAN (Realtek 8111F)
• Wake-on-LAN
Audio Realtek ALC662 Audio Codec
• 2-channel stereo, Line-out
I/O Interfaces • USB: 1× USB 3.0 + 3× USB 2.0
• Serial Ports: 2× RS-232
Storage • 1× Half-size Mini PCIe (SATA II for 2.5" HDD/SSD)
• 1× Full-size mSATA socket
OS Support Windows 7/8/10, Ubuntu, Linux, CentOS
Power • Input: 12V DC (5.5×2.5mm Jack)
• Adapter: 12V/3A (36W)
• Universal Input: 100-240V AC
Power Consumption 10W (Typical)
Physical • Material: Aluminum
• Mounting: VESA/Wall/Desktop
• Dimensions: 136×128×39mm
• Weight: 0.65kg
• Color: Black
Environment • Operating Temp: -20°C to +65°C
• Storage Temp: -20°C to +75°C
• Humidity: 5–95% RH (non-condensing)


CPU Comparison


Processor Cores/Threads Base Clock (GHz) Max Turbo Clock (GHz) TDP (W) Cache Lithography (nm) Release Year
N2815 25/2/2 1.86 2.13 7.5 1 MB 22 2013
N2830 25/2/2 2.16 2.41 7.5 1 MB 22 2014
N2840 25/2/2 2.16 2.58 7.5 1 MB 22 2014
N2920 25/4/4 1.86 2 7.5 2 MB 22 2013
N2940 25/4/4 1.83 2.25 7.5 2 MB 22 2014
J1800 25/2/2 2.41 2.58 10 1 MB 22 2013
J1900 25/4/4 2 2.42 10 2 MB 22 2013
J2900 25/4/4 2.41 2.67 10 2 MB 22 2014

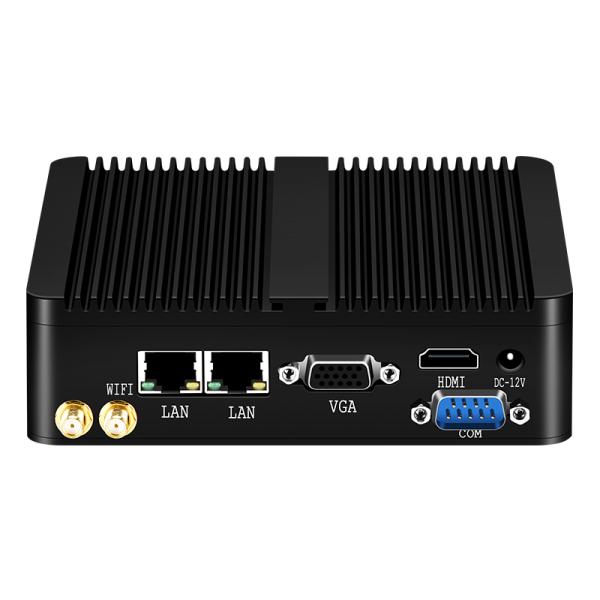

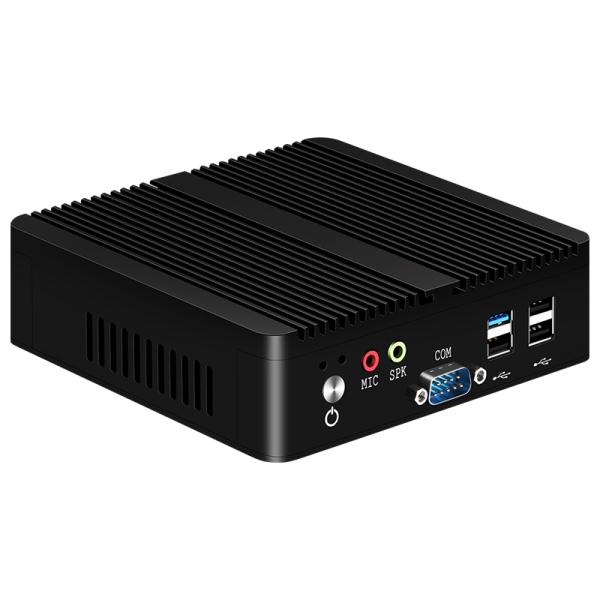

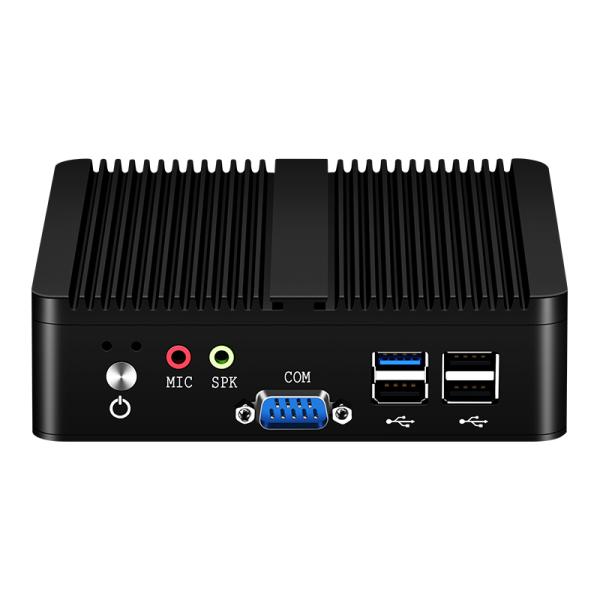

Products Design


Zynshield N2815 N2940 J1900 Dual LAN Dual RS232 COM 4 USB 4G Wifi VESA Wallmount Industrial Control Mini PC

Zynshield N2815 N2940 J1900 Dual LAN Dual RS232 COM 4 USB 4G Wifi VESA Wallmount Industrial Control Mini PC


Recommended Systems

System Supported Reason
Windows 7 Yes Explicitly listed in OS support; drivers available for Intel HD Graphics, Realtek NICs, and storage.
Windows 10 Yes Explicitly listed in OS support; compatible with Intel Celeron CPUs and all onboard hardware.
Windows Server 2019/2022 Yes Compatible with x86 architecture and similar hardware to Windows 10; supports low-resource server roles (e.g., lightweight VM or network services), but limited by 8GB RAM for intensive tasks.
CentOS Yes Explicitly listed in OS support; works with Intel CPUs, Realtek drivers, and standard Linux kernel.
Ubuntu Yes Explicitly listed in OS support; Ubuntu has broad hardware compatibility for Intel/Realtek components.
RouterOS (Ros) Yes MikroTik RouterOS has an x86 version that supports generic PC hardware, including Realtek NICs and Intel CPUs; suitable for routing/firewall applications.
Panabit Yes Based on FreeBSD and supports x86 platforms; drivers available for Realtek NICs and storage; designed for network appliances.
Proxmox VE (PVE) Yes Based on Debian Linux; compatible with x86 hardware, Intel CPUs, and Realtek NICs; can host lightweight virtual machines.
pfSense (pfSens) Yes Based on FreeBSD; supports x86 firewalls with Realtek NICs; community drivers ensure compatibility.
OPNsense (Opnsens) Yes Similar to pfSense (FreeBSD-based); designed for x86 hardware with Realtek driver support.
Debian Yes As a Linux distribution, it is covered under the "Linux" OS support; compatible with Intel CPUs, Realtek drivers, and storage.


Shipping Solution

  1. We offer three shipping options: DHL, UPS, and FedEx.

  2. If you maintain your own DHL, UPS, or FedEx account, we can arrange shipping using your account at no additional charge.

  3. If you have a designated freight forwarder in China, we will deliver the goods directly to your forwarder without extra fees. Furthermore, we will coordinate directly with your forwarder and prepare all necessary documentation.

  4. For your reference in freight cost estimation, should you require product packaging dimensions and weight details, please feel free to contact us. We will respond to your inquiry promptly.


About Customization


All products can be customized according to your requirements, including:

  • Chassis (color, appearance, etc.)

  • Motherboard (number of Ethernet ports, chipset type, SIM card slot expansion, etc.)

  • Carton (logo customization)

The process is as follows:


Phase Stage Key Activities & Deliverables
1 Inquiry • Client submits detailed customization requirements
2 Requirements Confirmation • Supplier provides feasibility previews
• Client approves technical specifications
3 Feasibility Analysis • Technical validation of design/production
• Risk assessment report
4 Quotation • Detailed cost breakdown
• Production timeline with milestones
5 Place Order • Contract execution with payment terms
• Final requirement verification (double-check)
6 Mass Production • Bulk manufacturing launch
• Quality control during production
7 Pre-Delivery Audit • Export documentation (HS code, invoice)
• Declared value verification
• Final QC inspection
8 Delivery & Support • Logistics coordination
• Real-time shipment tracking
• Post-delivery support
