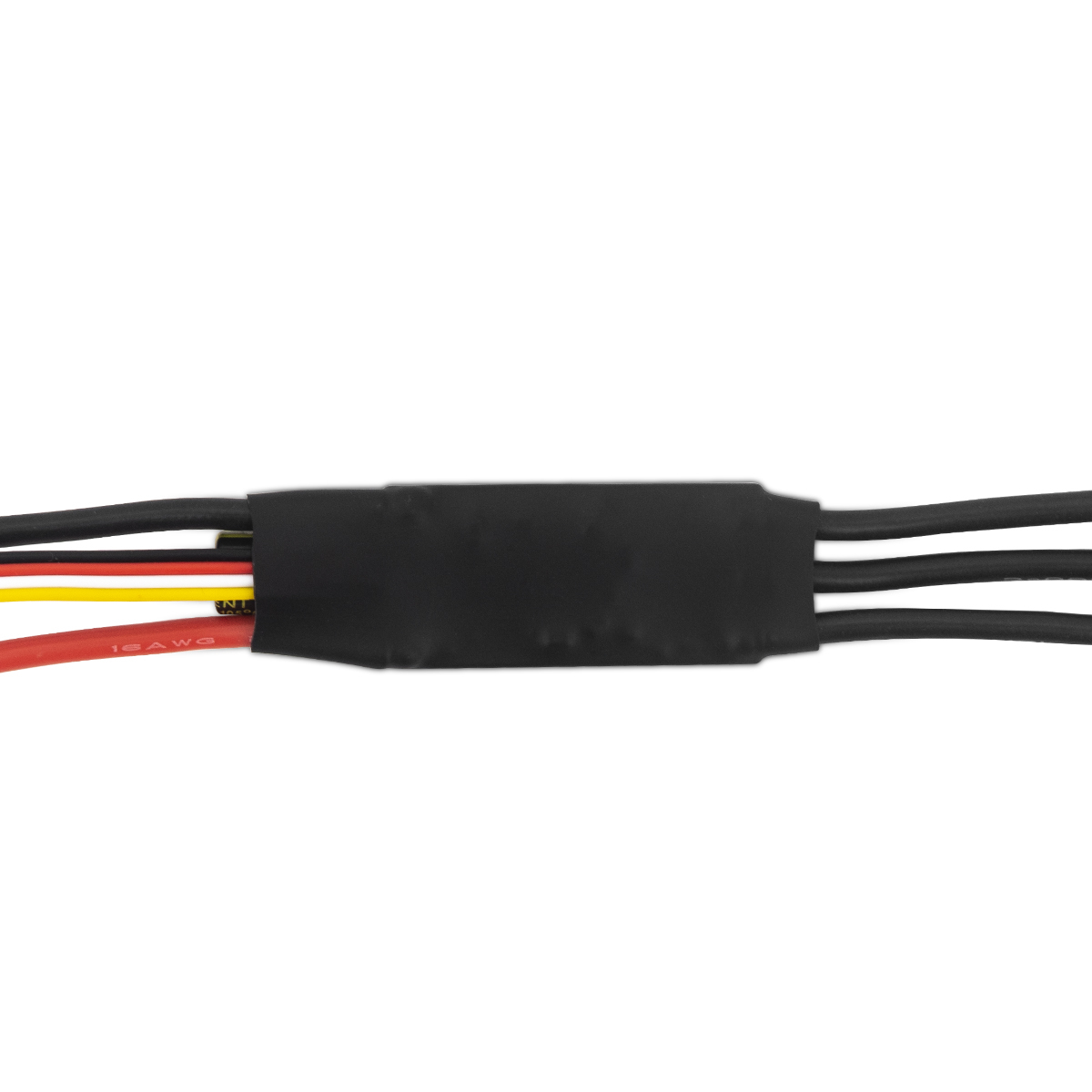

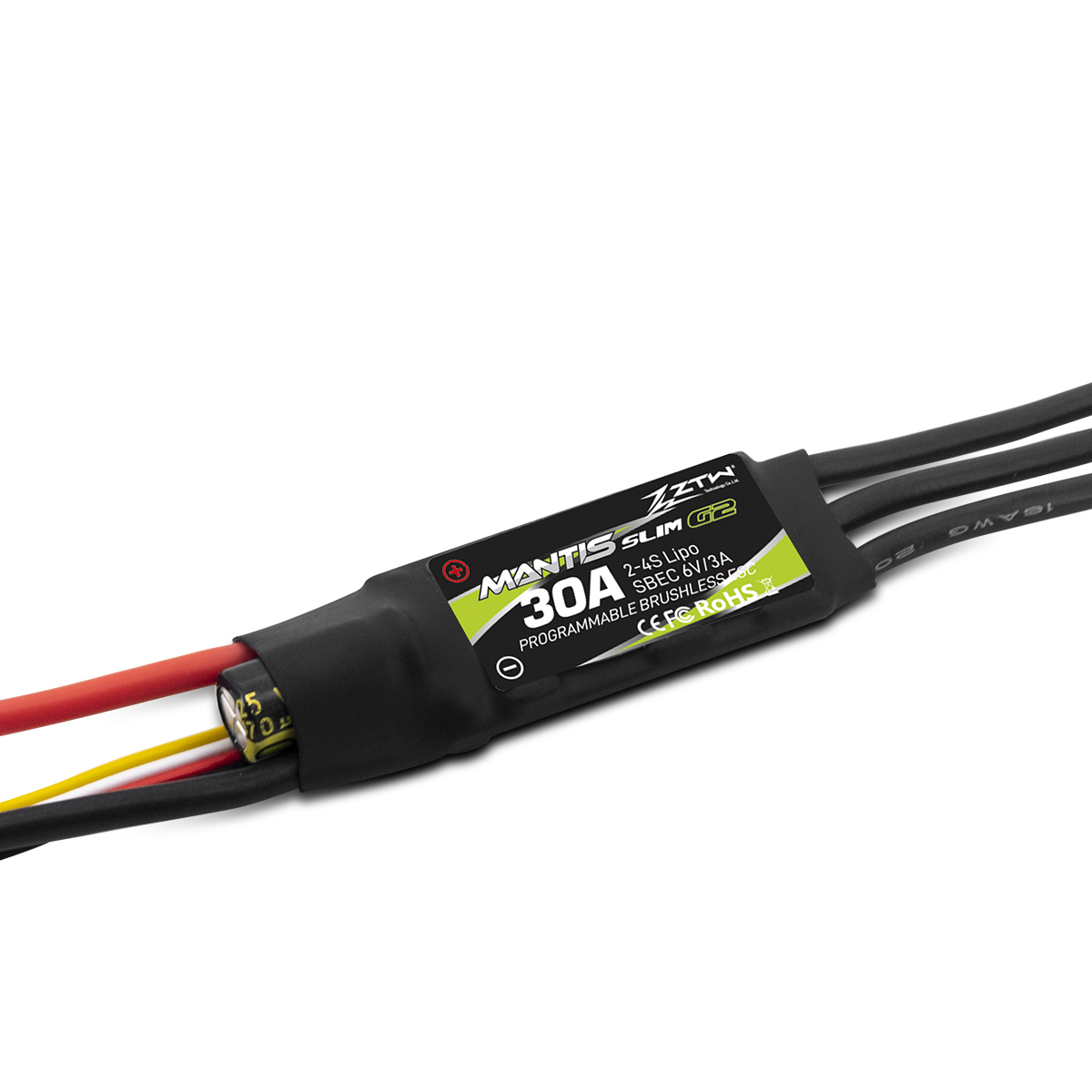

2S-4S ZTW Mantis Slim 30A SBEC ESC G2 6V/3A BEC For Park Flyer
2S-4S ZTW Mantis Slim 30A SBEC ESC G2 6V/3A BEC For Park Flyer
2S-4S ZTW Mantis Slim 30A SBEC ESC G2 6V/3A BEC For Park Flyer
2S-4S ZTW Mantis Slim 30A SBEC ESC G2 6V/3A BEC For Park Flyer
2S-4S ZTW Mantis Slim 30A SBEC ESC G2 6V/3A BEC For Park Flyer
2S-4S ZTW Mantis Slim 30A SBEC ESC G2 6V/3A BEC For Park Flyer
Specifications
Continuous/ Burst Current :
30A/40A
Size :
54.0*18.0*11.0mm
Weight :
18g
Input Voltage :
2-4S LiPo/5-12NC
Programming Way :
Transmitter/LCD Program Card G2/Android & IOS APP
Product Name :
Mantis Slim 30A SBEC G2
BEC Output :
6V/3A
Description

ZTW Mantis Slim 30A SBEC G2 32-Bit ESC 2-4S with 6V/3A BEC for F3P Extreme 3D, Foamie and Park Flyer

Highest-Current Slim ESC for Extreme 3D

The Mantis Slim 30A is the most powerful model in the Slim lineup, delivering 30A continuous in an 11mm-thick, 18g flat package — built for extreme F3P 3D, high-performance foamies, and lightweight park flyers that need more current but cannot fit a standard ESC.

30A Continuous / 40A Burst on 2-4S

30A sustained and 40A peak on 2-4S LiPo/LiHV through 16-gauge wires handles hotter outrunners and higher cell counts than the 15A/20A Slim models, with generous burst headroom for aggressive 3D.

32-Bit Processor & Synchronous Rectification

The 32-bit MCU delivers smooth startup, precise throttle linearity, and fast response. Synchronous rectification keeps temperatures low and efficiency high during sustained high-power aerobatics.

Forward/Reverse with Linear Braking

RVS motor direction switching and linear braking reverse support 4D aerobatics and controlled short landings — competition features in an 18g package.

6V/3A Switching BEC (5A Peak)

The 6V/3A switching BEC with 5A peak powers multiple mini digital servos for high-energy 3D sequences without brownouts.

Triple Programming & Protections

Program via transmitter, LCD Program Card G2, or APP. Full protection suite: start-up, over-heat, phase-loss, signal-loss, low-voltage, and over-current.

Pre-Soldered XT60 & 2mm Bullets

Amass XT60 and 2mm gold bullets come pre-soldered for fast installation.

2S-4S ZTW Mantis Slim 30A SBEC ESC G2 6V/3A BEC For Park Flyer

2S-4S ZTW Mantis Slim 30A SBEC ESC G2 6V/3A BEC For Park Flyer

Technical Specifications

Specifications Mantis Slim 15A SBEC G2 Mantis Slim 20A SBEC G2 Mantis Slim 30A SBEC G2 Mantis 6A SBEC G2 Mantis 25A SBEC G2 Mantis 35A SBEC G2 Mantis 45A SBEC G2
Continuous Current 15A 20A 30A 6A 25A 35A 45A
Burst Current 30A 30A 40A 10A 35A 45A 55A
Input Voltage 2-4S LiPo / 5-12 NC 2-4S LiPo / 5-12 NC 2-4S LiPo / 5-12 NC 2-3S LiPo / 5-10 NC 2-4S LiPo 2-4S LiPo 2-6S LiPo
BEC Output 5V / 3A 6V / 3A 6V / 3A 5V / 3A 5.0/6.0/7.4V Adj. / 4A 5.0/6.0/7.4V Adj. / 4A 5.0/6.0/7.4V Adj. / 4A
CPU Frequency 32-bit / 96MHz 32-bit / 96MHz 32-bit / 96MHz 32-bit / 96MHz 32-bit / 96MHz 32-bit / 96MHz 32-bit / 96MHz
Programming Tx / LCD Card G2 / App Tx / LCD Card G2 / App Tx / LCD Card G2 / App Tx / LCD Card G2 / App Tx / LCD Card G2 / App Tx / LCD Card G2 / App Tx / LCD Card G2 / App
Firmware Upgrade Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported
Power Wire 20AWG 18AWG 16AWG 22AWG 18AWG 16AWG 14AWG
Motor Wire 20AWG 18AWG 16AWG 22AWG 18AWG 16AWG 14AWG
Battery Plug JST Female XT60 (Amass) XT60 (Amass) XT30 (Amass) XT60 (Amass) XT60 (Amass) XT60 (Amass)
Motor Bullet 2.0mm 2.0mm 2.0mm 2.0mm 3.5mm 3.5mm 3.5mm
Size (L×W×H) 25.5×15.0×5.0mm 38.0×16.0×10.0mm 54.0×18.0×11.0mm 25.0×15.0×6.0mm 68.0×28.0×10.0mm 68.0×28.0×10.0mm 73.0×28.0×10.0mm
Weight 10g 14g 18g 7g 36g 40g 45g
