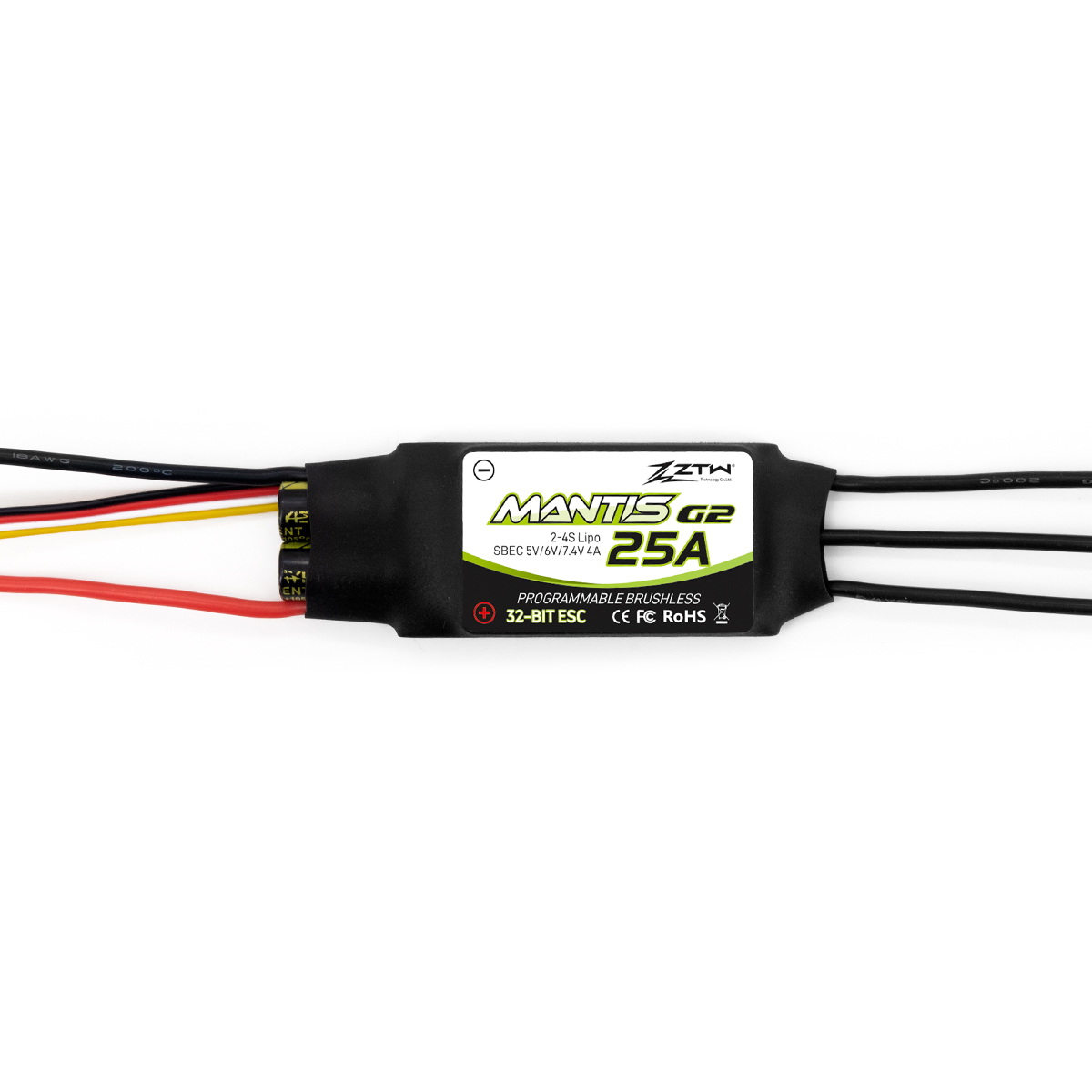

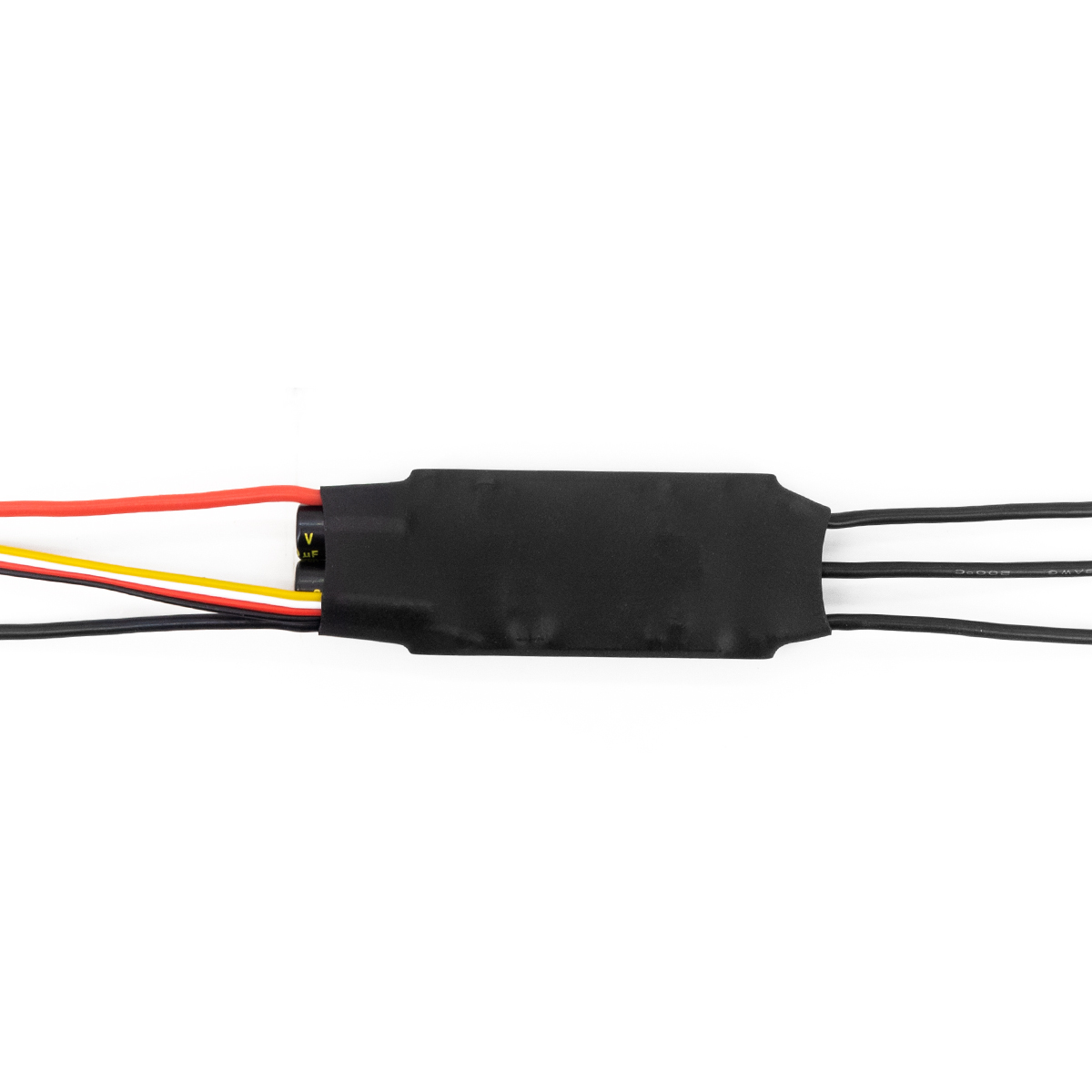

2-4S Mantis 25A SBEC G2 32 Bit ESC Adjustable BEC Mantis ESC
2-4S Mantis 25A SBEC G2 32 Bit ESC Adjustable BEC Mantis ESC
2-4S Mantis 25A SBEC G2 32 Bit ESC Adjustable BEC Mantis ESC
2-4S Mantis 25A SBEC G2 32 Bit ESC Adjustable BEC Mantis ESC
2-4S Mantis 25A SBEC G2 32 Bit ESC Adjustable BEC Mantis ESC
2-4S Mantis 25A SBEC G2 32 Bit ESC Adjustable BEC Mantis ESC
Specifications
Programming Way :
Transmitter/LCD Program Card G2/Android & iOS APP
Continuous/ Burst Current :
25A/35A
Size :
68.0*28.0*10.0mm
Input Voltage :
2-4S LiPo
BEC Output :
5.0,6.0,7.4V adjustable /4A
Application :
UAV, VTOL, Fixed-Wing & RC Helicopter
Model Name :
Mantis 25A SBEC G2
Weight :
36g
Description

Mantis G2 Series: 32-Bit Brushless ESC

ZTW Mantis 25A SBEC G2 32-Bit ESC 2-4S with Adjustable BEC for RC Fixed Wing F3P EDF Jet Mini VTOL Aircraft

10mm Flat ESC for Sport & Scale Airplanes

The Mantis 25A features a slim 10mm flat profile (68×28×10mm, 36g) designed to tuck inside narrow fuselages of sport planes, warbirds, and 3D foamies where a standard ESC won't fit.

25A Continuous / 35A Burst on 2-4S

Delivers 25A sustained and 35A peak on 2-4S LiPo through 18-gauge wires, driving 28-35mm outrunners in sport aerobatic and scale warbird applications.

32-Bit Processor & Auto Timing

The 32-bit MCU with automatic motor timing identification ensures optimal efficiency and broad motor compatibility — no manual timing setup needed when swapping motors.

Synchronous Rectification

Synchronous rectification delivers faster throttle response, lower temperatures, and longer flight times by reducing switching losses.

5/6/7.4V Adjustable 4A BEC

The switching BEC is adjustable between 5V, 6V, and 7.4V at 4A, supporting both standard and HV digital servos without an external BEC.

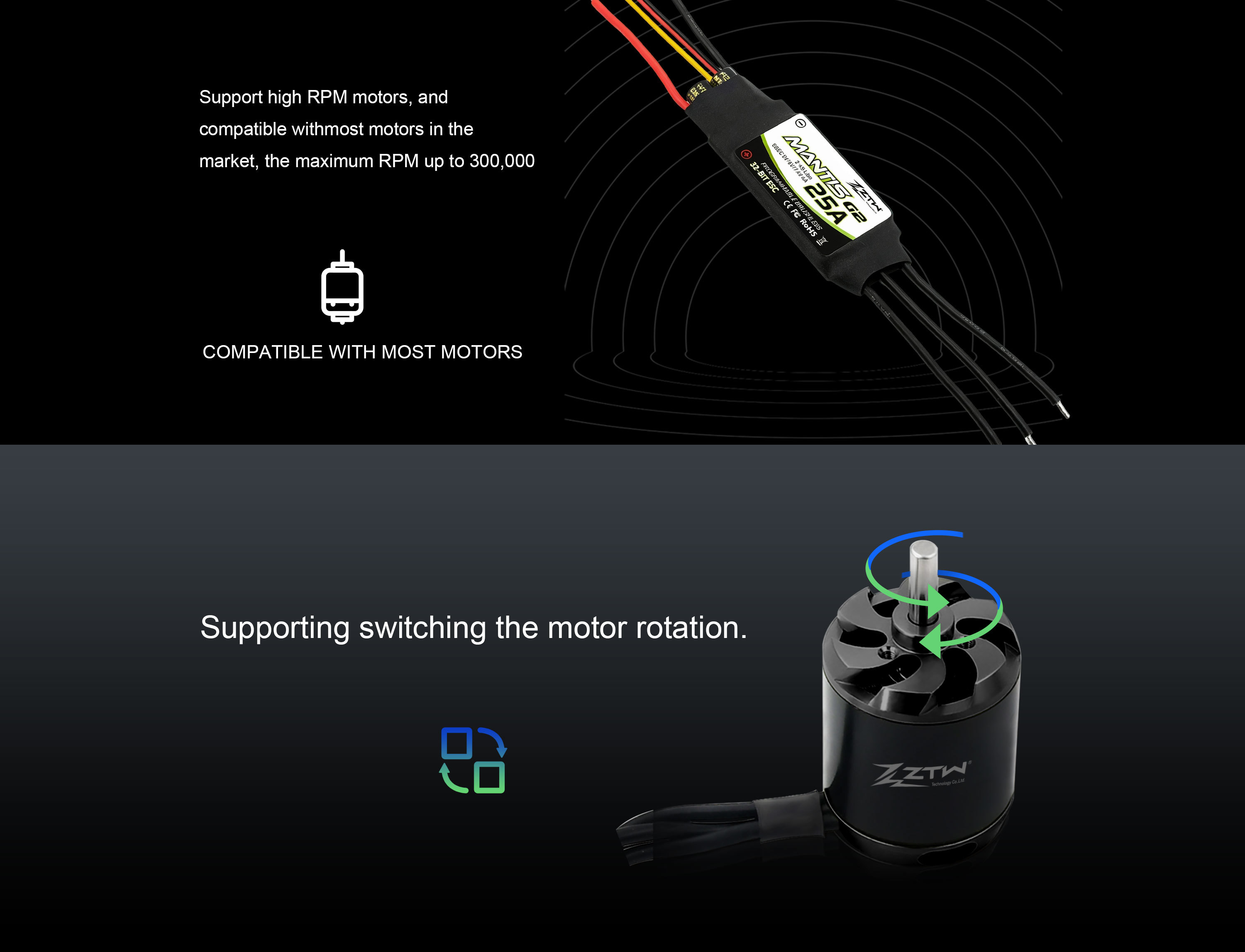

Normal/Soft Acceleration & RVS Braking

Selectable normal or soft acceleration (soft recommended for EDF), plus motor direction switching with braking reverse for shortened landing rolls.

Triple Programming & Protections

Transmitter, LCD Program Card G2, or APP programming with six protection layers. Pre-soldered XT60 and 3.5mm gold bullets.

2-4S Mantis 25A SBEC G2 32 Bit ESC Adjustable BEC Mantis ESC

2-4S Mantis 25A SBEC G2 32 Bit ESC Adjustable BEC Mantis ESC

2-4S Mantis 25A SBEC G2 32 Bit ESC Adjustable BEC Mantis ESC

Technical Specifications

Specifications Mantis Slim 15A SBEC G2 Mantis Slim 20A SBEC G2 Mantis Slim 30A SBEC G2 Mantis 6A SBEC G2 Mantis 25A SBEC G2 Mantis 35A SBEC G2 Mantis 45A SBEC G2
Continuous Current 15A 20A 30A 6A 25A 35A 45A
Burst Current 30A 30A 40A 10A 35A 45A 55A
Input Voltage 2-4S LiPo / 5-12 NC 2-4S LiPo / 5-12 NC 2-4S LiPo / 5-12 NC 2-3S LiPo / 5-10 NC 2-4S LiPo 2-4S LiPo 2-6S LiPo
BEC Output 5V / 3A 6V / 3A 6V / 3A 5V / 3A 5.0/6.0/7.4V Adj. / 4A 5.0/6.0/7.4V Adj. / 4A 5.0/6.0/7.4V Adj. / 4A
CPU Frequency 32-bit / 96MHz 32-bit / 96MHz 32-bit / 96MHz 32-bit / 96MHz 32-bit / 96MHz 32-bit / 96MHz 32-bit / 96MHz
Programming Tx / LCD Card G2 / App Tx / LCD Card G2 / App Tx / LCD Card G2 / App Tx / LCD Card G2 / App Tx / LCD Card G2 / App Tx / LCD Card G2 / App Tx / LCD Card G2 / App
Firmware Upgrade Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported Not Supported
Power Wire 20AWG 18AWG 16AWG 22AWG 18AWG 16AWG 14AWG
Motor Wire 20AWG 18AWG 16AWG 22AWG 18AWG 16AWG 14AWG
Battery Plug JST Female XT60 (Amass) XT60 (Amass) XT30 (Amass) XT60 (Amass) XT60 (Amass) XT60 (Amass)
Motor Bullet 2.0mm 2.0mm 2.0mm 2.0mm 3.5mm 3.5mm 3.5mm
Size (L×W×H) 25.5×15.0×5.0mm 38.0×16.0×10.0mm 54.0×18.0×11.0mm 25.0×15.0×6.0mm 68.0×28.0×10.0mm 68.0×28.0×10.0mm 73.0×28.0×10.0mm
Weight 10g 14g 18g 7g 36g 40g 45g
