3S-8S ZTW Seal ESC 130A SBEC G2 32 Bit Waterproof Large RC Boat ESC
3S-8S ZTW Seal ESC 130A SBEC G2 32 Bit Waterproof Large RC Boat ESC
3S-8S ZTW Seal ESC 130A SBEC G2 32 Bit Waterproof Large RC Boat ESC
3S-8S ZTW Seal ESC 130A SBEC G2 32 Bit Waterproof Large RC Boat ESC
3S-8S ZTW Seal ESC 130A SBEC G2 32 Bit Waterproof Large RC Boat ESC
3S-8S ZTW Seal ESC 130A SBEC G2 32 Bit Waterproof Large RC Boat ESC
3S-8S ZTW Seal ESC 130A SBEC G2 32 Bit Waterproof Large RC Boat ESC
3S-8S ZTW Seal ESC 130A SBEC G2 32 Bit Waterproof Large RC Boat ESC
Specifications
Continuous Current :
125A
BEC Output :
6.0,7.4,8.4V adjustable /10A
Weight :
205g
Size :
95*44*27mm
Burst Current :
135A
Input Voltage :
3-8S LiPo
Programming Way :
LCD Program Card G2/Android&IOS APP
Model Name :
Seal 130A HV SBEC G2
Description

ZTW Seal 105A SBEC G2 32-Bit Waterproof ESC 3-8S with Water Cooling for Racing Boats and Industrial Thrusters

32-Bit 170MHz Flagship Low-Voltage Power

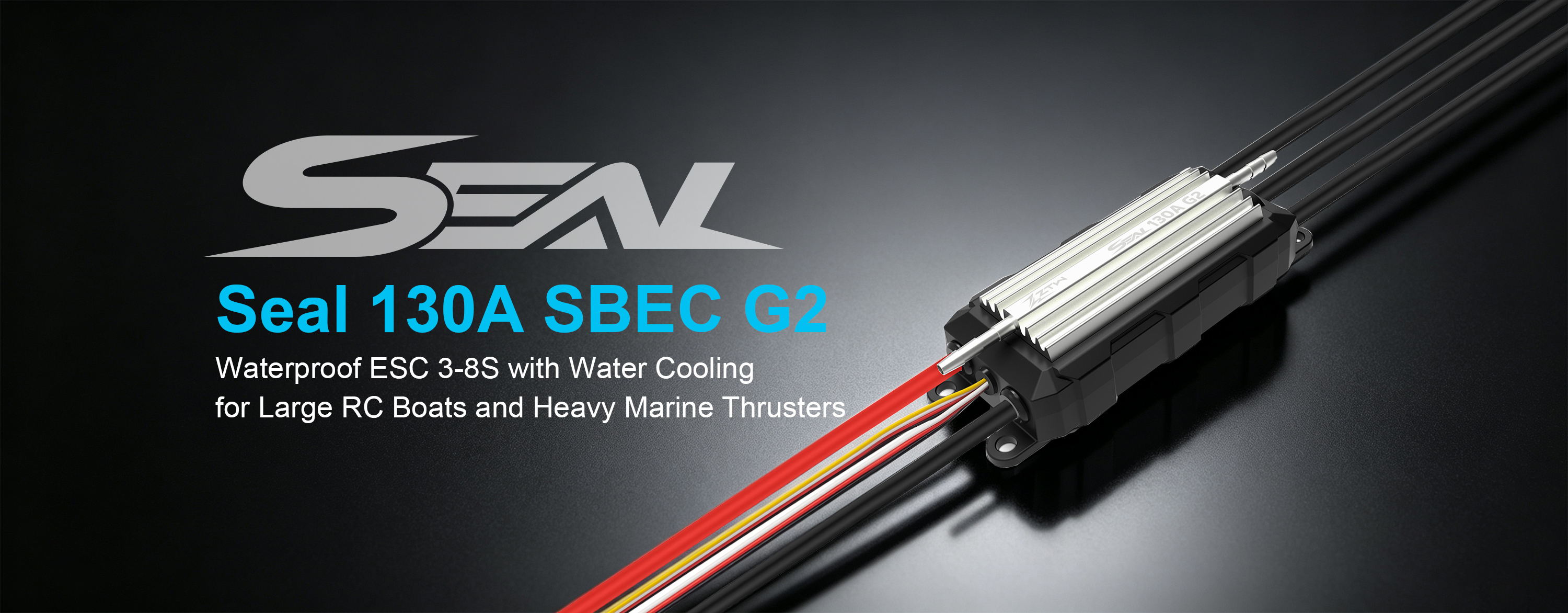

The Seal 130A G2 is the top-current 3-8S model, combining a 170MHz 32-bit processor with 125A continuous output for large RC boats, high-performance catamarans, and heavy industrial marine thrusters demanding maximum 8S power.

125A Continuous / 135A Burst with Next-Gen MOSFETs

Advanced MOSFET technology provides low heat, instant current withstand, and high reliability. 125A sustained and 135A peak drives the largest 8S-compatible motors with confidence for big-block boats and heavy-lift subsea thrusters.

IP67 Waterproof + Dual-Channel Cooling

Full IP67 waterproof construction with two water-cooling pipes and custom heat sinks ensures efficient heat dissipation even in the confined, hot motor boxes of large boats.

8A Adjustable SBEC for Complex Setups

6.0/7.4/8.4V switching BEC at 8A powers multiple high-torque servos for dual rudder, trim tab, and reverse setups — eliminating the need for an external BEC.

Forward/Reverse & Freewheeling Efficiency

Dual running modes for racing or scale operation. Freewheeling circuitry reduces off-throttle drag, improving overall efficiency and runtime.

Full Protection Suite

Over-temperature power reduction protects the boat from thermal damage. Plus LVC, start-up, signal loss, phase loss, over-current, abnormal voltage, and over-load protection.

Telemetry & G2 Programming Ecosystem

Real-time current, voltage, temperature, RPM, throttle, and status telemetry via ZTW App or LCD Program Card G2. Full programming via Bluetooth app, LCD card, or transmitter stick.


3S-8S ZTW Seal ESC 130A SBEC G2 32 Bit Waterproof Large RC Boat ESC

3S-8S ZTW Seal ESC 130A SBEC G2 32 Bit Waterproof Large RC Boat ESC


Technical Specifications

Specifications Seal 70A SBEC G2 Seal 90A SBEC G2 Seal 105A SBEC G2 Seal 130A SBEC G2 Seal 200A SBEC G2
Continuous Current 70A 85A 105A 125A 200A
Burst Current 80A 95A 115A 135A 240A
Input Voltage 3-6S LiPo 3-8S LiPo 3-8S LiPo 3-8S LiPo 4-8S LiPo
BEC Output 6.0/7.4/8.4V Adj. / 8A 6.0/7.4/8.4V Adj. / 8A 6.0/7.4/8.4V Adj. / 8A 6.0/7.4/8.4V Adj. / 8A 6.0/7.4/8.4V Adj. / 10A
CPU 32-bit / 170MHz 32-bit / 170MHz 32-bit / 170MHz 32-bit / 170MHz 32-bit / 170MHz
Water Cooling Dual-Channel Dual-Channel Dual-Channel Dual-Channel Dual-Channel
Programming Tx / LCD Card G2 / App Tx / LCD Card G2 / App Tx / LCD Card G2 / App Tx / LCD Card G2 / App Tx / LCD Card G2 / App
Firmware Upgrade Supported Supported Supported Supported Supported
Waterproof Yes Yes Yes Yes Yes
Power Wire 14AWG 12AWG 10AWG 10AWG 10AWG
Motor Wire 14AWG 12AWG 12AWG 10AWG 10AWG
Battery Plug XT60 XT90 (Amass) XT90 (Amass) XT90 (Amass) None (Solder)
Motor Bullet 3.5mm Gold 4.0mm Gold 4.0mm Gold 4.0mm Gold None (Solder)
Size (L×W×H) 64×38×26mm 95×44×27mm 95×44×27mm 95×44×27mm 106×52×30mm
Weight 107g 196g 199g 205g 306g
