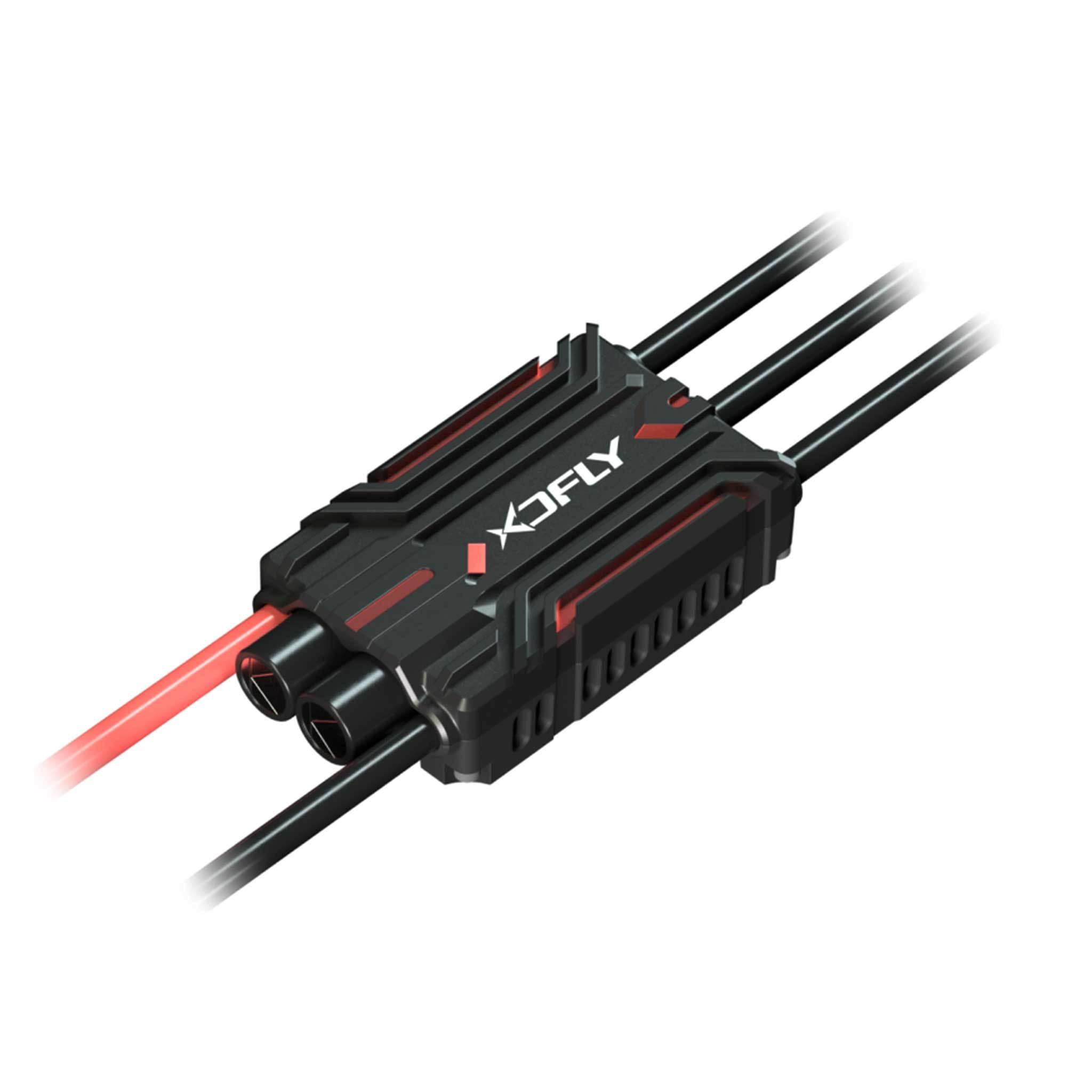

3-6S G4 XDFly 85A SBEC 32 Bit ESC For 380-420 RC Helicopter EDF
3-6S G4 XDFly 85A SBEC 32 Bit ESC For 380-420 RC Helicopter EDF
Specifications
Programming Way :
LCD Program Card G2/Android&IOS APP
Continuous/ Burst Current :
85A/160A
Size :
70*36*21mm
Weight :
93g
Input Voltage :
3-6S LiPo
BEC Output :
6-12V Adjustable /10A
Product Name :
XDFly HPRO 85A SBEC
Description

XDFly HPRO 85A SBEC 32-Bit G4 ESC 3-6S with 6-12V BEC for 380-420 RC Helicopter, EDF and Fixed-Wing 3D

85A/160A for 420 Helis & High-Power Fixed-Wing

The HPRO 85A delivers 85A continuous and 160A burst — substantial headroom over the 130A burst typical of this class — using new-generation MOSFETs that run cooler and handle instantaneous current spikes with ease. Ideal for 380-420 helis, .70-class fixed-wing 3D, and 75mm EDF jets.

Lighter Than Comparable ESCs

At just 93g and 70×36×21mm, the HPRO 85A is significantly lighter than same-class competitors (typically 105-110g), reducing all-up weight on aerobatic airframes where every gram affects flight performance.

32-Bit G4 Precision

The 170MHz G4 processor delivers efficient processing and accurate motor output, with smooth startup and linear throttle response that pilots can feel in both heli collective management and fixed-wing 3D sequences.

6-12V Wide-Range SBEC

The 6-12V adjustable SBEC (10A continuous, 0.2V steps) powers HV servos and gyro/flybarless controllers directly, eliminating the weight and complexity of an external BEC.

Vented Case for Superior Cooling

The unique HPRO housing with side air vents and optimized internal airflow increases heat dissipation area, keeping MOSFET temperatures low during sustained high-power aerobatics.

XT60 & 3.5mm Bullets Pre-Installed

Amass XT60 battery connector and 3.5mm gold bullets come pre-soldered for fast, reliable installation.

Full Telemetry Ecosystem & Protections

Telemetry for VBar VBCt/E, Rotorflight2, SBUS2, Jeti, Brain, and iKon. APP/LCD G2 programming, firmware upgrades, heli governor, fixed-wing mode, ARTime autorotation restart, self-check, and seven protection layers.


3-6S G4 XDFly 85A SBEC 32 Bit ESC For 380-420 RC Helicopter EDF

3-6S G4 XDFly 85A SBEC 32 Bit ESC For 380-420 RC Helicopter EDF


Technical Specifications

Specifications H-Pro 35A SBEC H-Pro 65A SBEC H-Pro 85A SBEC H-Pro 125A SBEC H-Pro 155A SBEC H-Pro 195A HV SBEC H-Pro 300A HV SBEC
Continuous Current 35A 65A 85A 125A 155A 195A 300A
Burst Current 55A 130A 160A 200A 260A 260A 400A
Input Voltage 3-6S LiPo 3-6S LiPo 3-6S LiPo 3-8S LiPo 3-8S LiPo 6-14S LiPo 6-14S LiPo
BEC Output 6-12V Adj. / 8A 6-12V Adj. / 10A 6-12V Adj. / 10A 6-12V Adj. / 10A 6-12V Adj. / 10A 6-12V Adj. / 10A 6-12V Adj. / 10A
CPU Frequency 32-bit / 170MHz 32-bit / 170MHz 32-bit / 170MHz 32-bit / 170MHz 32-bit / 170MHz 32-bit / 170MHz 32-bit / 170MHz
Telemetry Supported Supported Supported Supported Supported Supported Supported
Governor Mode Supported Supported Supported Supported Supported Supported Supported
Anti-Ignition — — — — — — Supported
Cooling Fan — — — Auto Temp Control Auto Temp Control Auto Temp Control Auto Temp Control
RGB Light — — — Supported Supported Supported Supported
Programming LCD Card / iOS & Android App LCD Card G2 / App LCD Card G2 / App LCD Card G2 / App LCD Card G2 / App LCD Card G2 / App LCD Card G2 / App
Firmware Upgrade Supported Supported Supported Supported Supported Supported Supported
Power Wire 16AWG 14AWG 12AWG 10AWG 10AWG 8AWG 8AWG
Motor Wire 18AWG 14AWG 12AWG 10AWG 10AWG 10AWG 10AWG
Battery Plug None (Solder) XT60 (Amass) XT60 (Amass) None (Solder) None (Solder) None (Solder) None (Solder)
Motor Bullet 3.5mm Gold 3.5mm Gold 3.5mm Gold 4.0mm Gold 4.0mm Gold None (Solder) None (Solder)
Size (L×W×H) 48×25×16mm 60×36×19mm 70×36×21mm 90×43×36mm 90×43×36mm 103.5×48×37mm 95×57×42mm
Weight 42g 63g 93g 158g 158g 223g 302g
