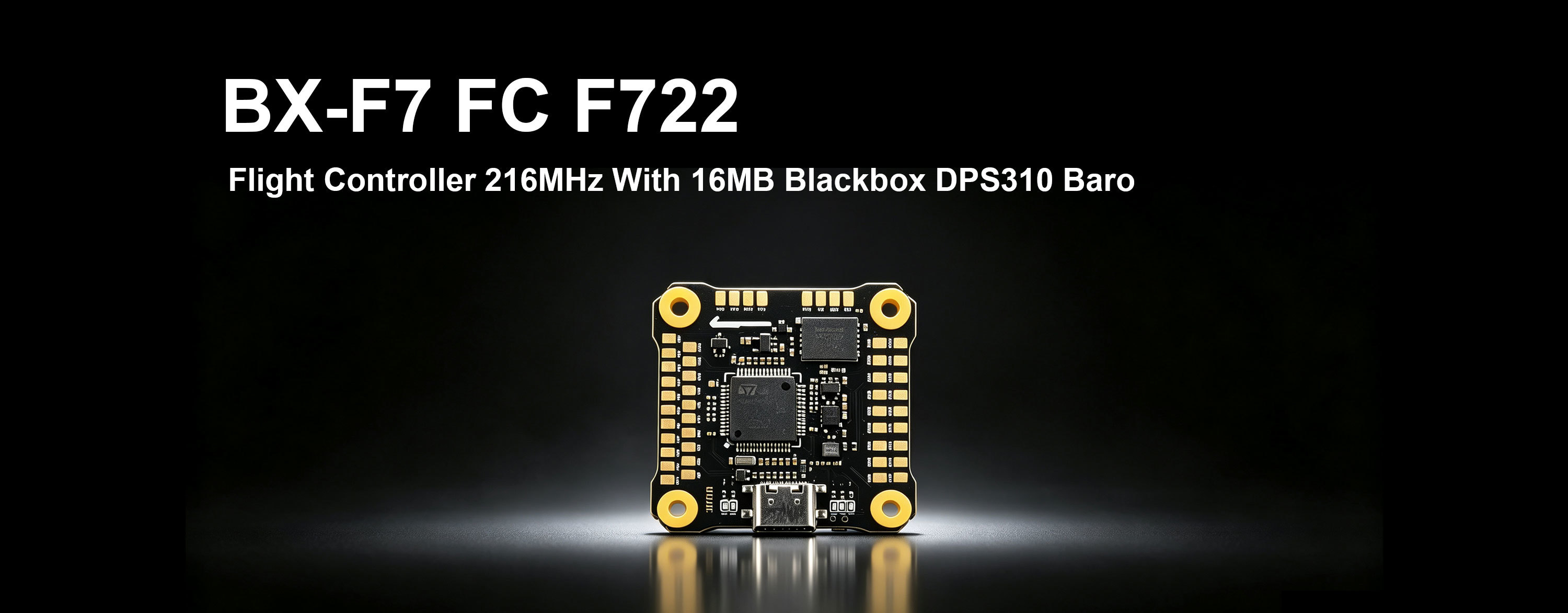

ZTW BX-F7 FC F722 Flight Controller 216MHz with ICM42688 Gyro, 16MB Blackbox, DPS310 Baro for 3-8S FPV Freestyle, Long-Range and Heavy-Lift Drones

216MHz F722 Power for Demanding Builds

The BX-F7 FC is built around an STM32F722RET6 processor running at 216MHz, supporting gyro and PID loop rates up to 8K simultaneously. The high processing headroom handles complex Betaflight filtering, GPS rescue, and OSD features without cycle overrun — ideal for freestyle, long-range, and heavy-payload multirotors.

ICM42688 Gyro & DPS310 Barometer

The ICM42688 six-axis IMU delivers low-noise gyro data at high sample rates, while the integrated DPS310 precision barometer provides accurate altitude hold for long-range and autonomous flight modes.

16MB Blackbox & AT7456E OSD

16MB of onboard flash stores detailed blackbox logs for PID tuning and troubleshooting. The AT7456E OSD chip supports both analog and DJI HD digital video systems, displaying critical flight data in real time.

3-8S Wide Voltage Input

Handles 3S through 8S LiPo directly (11-36V), covering everything from 5-inch freestyle to 8S-powered X8 and heavy-lift airframes without a separate voltage regulator.

Solder-Free Modular Wiring

Dedicated plug-and-play connectors for camera, ESC, ELRS receiver, VTX (HD/AV), and GPS eliminate soldering for core wiring — reducing build time and failure points in the field.

High-Redundancy BEC & TVS Protection

The over-rated BEC design easily powers high-current accessories including 10W VTX systems. TVS surge-suppression diodes protect the FC from voltage spikes caused by motor noise and hot-plugging.

Betaflight Ecosystem & Protocol Support

Ships with ZTW F722 Betaflight target. Supports CRSF, SBUS, and ELRS receivers plus DShot150-600, Multishot, Oneshot, and PWM ESC protocols. WS2812 LED strip output included. 38×38mm, 30.5mm mounting, 12g.
