Specifications
Model Number :
ZH-YF
Paperboard :
210-700gsm; E/N/F corrugated
Certification :
CE
Max line speed :
300m/min
Brand Name :
ZHANTIAN
Function :
side gluing+pre-folding+lock bottom+4/6 corner
Place of Origin :
CHINA
Max sheet feeding :
600/700/900/1100mm
Description

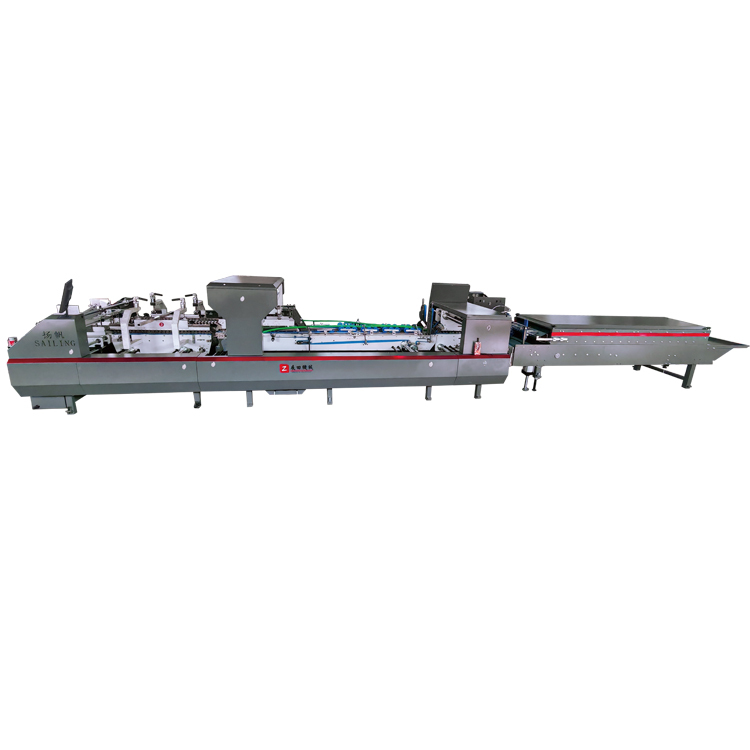

ZH-YF Series High-Speed Folder Gluer

The ZH-YF series combines a stylish aesthetic with the latest human-machine operation interface. Engineered for high speed and exceptional stability, this machine utilizes advanced transmission methods and precise, neat wiring to ensure maximum operational safety.

Key Advantages
  • High-Speed Performance: Optimized for rapid production cycles
  • Advanced Ergonomics: Latest human-machine interface for intuitive control
  • Superior Safety: Precision wiring design ensures long-term reliability
  • Versatile Functionality: Supports single/double side gluing, lock bottom, and 4/6 corner folding
Product Attributes
FOB Unit Set
Minimum Order Quantity 1 Set
Packaging 3 packages
Delivery Time 7-21 days

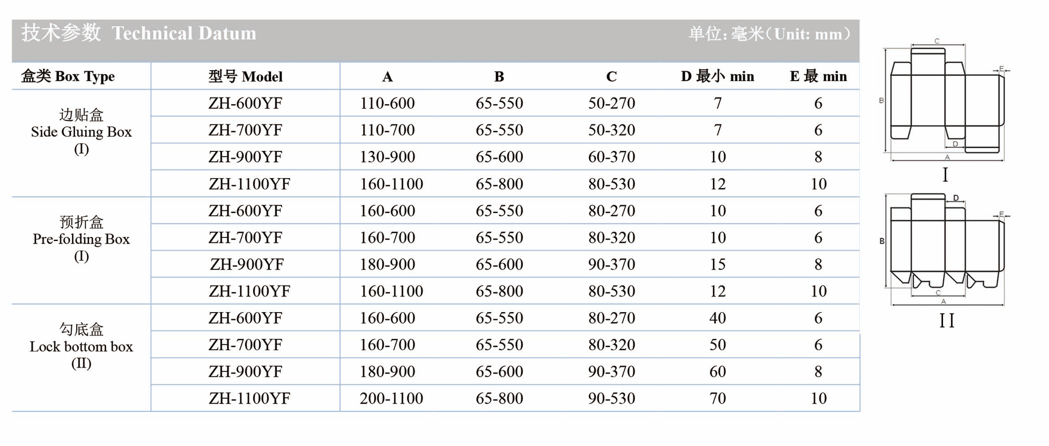

Technical Specifications
Parameter Specification
Function Single side gluing + double sides gluing + lock bottom + 4/6 corner
Paper Board 210-800 g/m², N/E/F corrugated box
Speed 0-300 m/min
Power 15KW 380V 3P
Weight 4000KG
Loading Port NINGBO PORT, CHINA
Payment Terms TT / LC / Western Union
Shipping Sea / Truck / Train / Courier
High-Speed Folder Gluer with 300m/min Max Line Speed, Advanced Human-Machine Interface, and Versatile Functionality High-Speed Folder Gluer with 300m/min Max Line Speed, Advanced Human-Machine Interface, and Versatile Functionality
Frequently Asked Questions
What is the machine warranty?
One year.
Does your machine have CE certificate?
Yes, issued by Italian organization.
What is the production time while placing order?
About 20-25 days.
What is the delivery time?
15-30 days after receiving payment.
Can your company handle shipping for customers?
Yes, just provide us with destination sea port or container yard.
Is the packing strong?
Yes, all packages are double-checked before delivery.
How about after-sales service process?
We offer lifetime after-sales service. Please feel free to contact our after-sales department.
Are you manufacturer or trading company?
We are manufacturer.
Do you have machines in stock?
For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
Do you inspect machines before packing?
Of course we do. We have QC department to debug the machine before packing.
What's the payment term?
T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.
Do you accept factory visiting?
We highly welcome your visit.
