Cold Glue Spray System for Folder Gluer Machine with 220 m/min Max Line Speed and Skip-Free High-Speed Gluing Using CNC-Controlled Precision Nozzles
Cold Glue Spray System for Folder Gluer Machine with 220 m/min Max Line Speed and Skip-Free High-Speed Gluing Using CNC-Controlled Precision Nozzles
Specifications
Max line speed :
220 m/min
Model Number :
ZH-800B
MOQ :
1 set
Max feeding size :
600mm
Paperboard :
210-700gsm; E/F/N flute
Function :
Single side gluing +double sides gluing+sleeves gluing
Certification :
CE
Brand Name :
ZHANTIAN
Place of Origin :
CHINA
Description
Cold Glue Spray System for Folder Gluer Machine — Carton Corrugated Box Gluing
Product Overview

Engineered for modern folder gluer machines, this cold glue spray system delivers electronically controlled, skip-free adhesive application for carton and corrugated box gluing. Each spray valve responds in milliseconds with closed-loop precision, producing a uniform, accurately positioned glue pattern across a wide range of board weights — even at maximum machine speed. The result is secure, airtight seams without glue starvation or excess buildup, keeping every box structurally sound and every line running clean.

  • Precision glue placement — CNC-controlled nozzles apply a consistent, sharply defined glue pattern, eliminating misaligned or uneven bonding.
  • Skip-free at high speed — fast valve response keeps pace with rapid folder gluer output, preventing missed spots on every joint.
  • Cleaner, more economical bonding — cold glue cuts adhesive waste and avoids heat-related curling or board damage, lowering cost per box.
  • Fast, intuitive changeover — glue length and position are adjusted in seconds via the control panel, minimizing downtime between jobs.
  • Low-maintenance reliability — self-cleaning nozzles and durable valve construction reduce maintenance frequency and extend service life.
Product Attributes
Customization Supported
Minimum Order Quantity 1 Set
Loading Port Ningbo Port, China
Delivery 3-5 Days

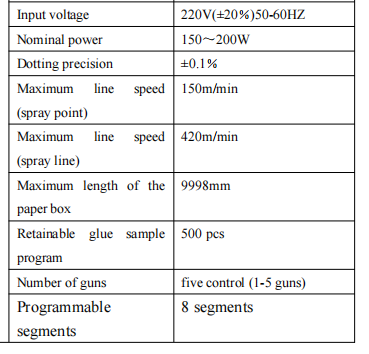

Technical Specifications
Parameter Detail
Function Gluing
Paper Board 210-700 g/m², N/E/F Corrugated
Speed 0-220 m/min
Power 150-200w 220V 1P
Weight 100KG
Shipping Sea/Truck/Train/Courier
Payment TT/ LC/ Western Union
Cold Glue Spray System for Folder Gluer Machine with 220 m/min Max Line Speed and Skip-Free High-Speed Gluing Using CNC-Controlled Precision Nozzles
Frequently Asked Questions
Q: What is the machine warranty?
A: One year.
Q: Does your machine with CE certificate?
A: Yes, issued by Italian organization.
Q: What is the production time while placing order?
A: About 20-25 days.
Q: What is the delivery time?
A: 15-30 days after get the payment.
Q: Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.
Q: Does the packing strong?
A: Yes, all packages are double-checking before delivery.
Q: How about after-sales service process?
A: We offer life time A.S.S. Please feel free to contact after-sales department.
Q: Are you manufacturer or trading company?
A: We are manufacturer.
Q: Do you have machines in stock?
A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
Q: Do you inspect machines before packing?
A: Of course we do. We have QC department to debug the machine before packing.
Q: What's the payment term?
A: T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.
Q: Do you accept factory visiting?
A: We are highly greeting for your visiting.
