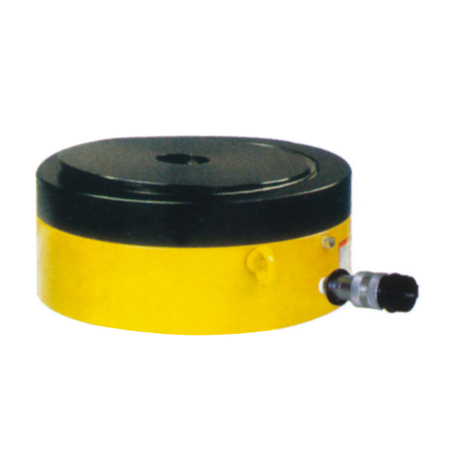

Customizable Thin Jack CLP Series Self-Locking Hydraulic Jack For Narrow Spaces
Customizable Thin Jack CLP Series Self-Locking Hydraulic Jack For Narrow Spaces
Customizable Thin Jack CLP Series Self-Locking Hydraulic Jack For Narrow Spaces
Customizable Thin Jack CLP Series Self-Locking Hydraulic Jack For Narrow Spaces
Specifications
Brand Name :
ZHONGTUO
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Price :
negotiated
Supply Ability :
10000 set/month
Delivery Time :
7-15 Days
Packaging Details :
Wooden Cases
storke :
50, 45, Customizable
Maximum inclination of the saddle :
5°, 4°, 3°
Height of self-locking nut :
28-62mm, Customizable
Saddle plug protrusion height :
96-290, Customizable
Description
Introduction of Thin self-locking jack

Ultra thin mechanical self-locking separation jack is a special type of jack equipment that adopts a thin, single acting design, with very small height and width, suitable for load support in narrow spaces. The main feature of this jack is its self-locking function, which can stably support the load for a long time without connecting the hydraulic source.

Feature of Thin self-locking jack

1. Thin design for narrow spaces where standard cylinders cannot be used

2. Self locking can meet long-term stable and safe load support

3. Single acting, load return

4. Capable of withstanding 3% of the rated load deviation without causing compression damage

5. Overflow hole with limited travel function

Customizable Thin Jack CLP Series Self-Locking Hydraulic Jack For Narrow Spaces

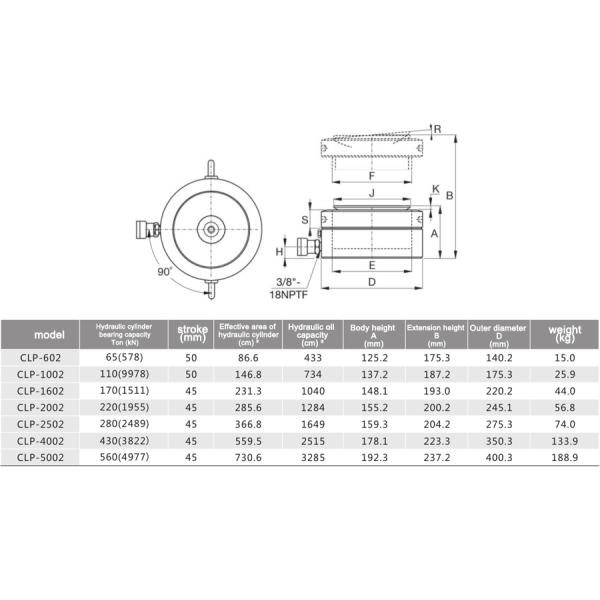

Specification of Thin self-locking jack

The ultra-thin mechanical self-locking detachable jack belongs to the ZHONGTUO series of detachable jack products, which can be customized according to customer needs. With more than 20 years of industry experience and a professional team, the product is reliable.

Single acting spring reset, slim design suitable for situations where standard jacks cannot be used. The piston nut is self-locking on the end face of the cylinder body, ensuring safe load retention for a long time. The specially customized spherical bearing system of the piston can withstand 5% of any angle deviation load. It has an over stroke protection valve and adopts copper welding technology on the piston part, which is not easy to pull the cylinder. It can be used repeatedly to create more efficient and cost saving benefits for customers.

Model stroke

Plunger Diameter

mm

Saddle diameter

mm

Weight

kg
CLP602 50 Tr104x4 96 15
CLP1002 50 Tr136x6 126 26
CLP1602 45 Tr171x6 160 44
CLP2002 45 Tr190x6 180

57
