Portable Manual Hydraulic Pump Ultra High Pressure Dual Speed Design Manual Pump
Portable Manual Hydraulic Pump Ultra High Pressure Dual Speed Design Manual Pump
Portable Manual Hydraulic Pump Ultra High Pressure Dual Speed Design Manual Pump
Portable Manual Hydraulic Pump Ultra High Pressure Dual Speed Design Manual Pump
Specifications
Brand Name :
ZHONGTUO
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Price :
negotiated
Supply Ability :
10000 set/month
Packaging Details :
Wooden Cases
Working pressure :
Max 2800bar
color :
customizable
Type :
Manual
Speed :
adjustable
Material :
corrosion preventive
Description
What is Ultra High Pressure Dual Speed Design Manual Pump?

Ultra high pressure manual hydraulic pumps, as a simple and convenient hydraulic power source, are widely used in various fields such as shipbuilding industry, coal mining machinery, petrochemicals, metallurgy, power, and heavy machinery. And it is widely accepted by users for its advantages such as small size, light weight, easy portability, and strong safety.

Portable Manual Hydraulic Pump Ultra High Pressure Dual Speed Design Manual Pump

  • Lightweight design, high strength, strong corrosion resistance, suitable for various harsh environments
  • Adjust the precise pressure setting of the relief valve and install an overload safety protection valve
  • Dual speed design

Specification and parameter

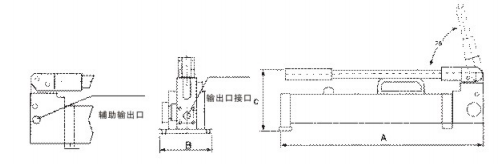

Type Model Working pressure
bar		 Oil output per stroke
cm³		 capacity Size
mm		 Interface thread size Weight
Level 1 Level 1 Level 1 Level 2 cm³ A B C kg
Single acting PML-162 20 1600 32 1.6 1680 575 120 170 1/4"BSP 6.2
PML-164 2250 575 140 170 8
PML-166 3580 575 140 190 10
PML-202 20 2000 32 1.3 1680 575 120 170 1/4"BSP 6.2
PML-204 2250 575 140 170 8
PML-206 3580 575 140 190 10
PML-282 20 2800 32 1.6 1680 575 120 170 1/4"BSP 6.2
PML-284 2250 575 140 170 8
PML-286 3580 575 140 190 10
PML-300 20 3000 32 1.6 3580 580 180 120 1/4"BSP 5.5

How Does Ultra High Pressure Dual Speed Design Manual Pump Work?


Portable Manual Hydraulic Pump Ultra High Pressure Dual Speed Design Manual PumpPortable Manual Hydraulic Pump Ultra High Pressure Dual Speed Design Manual Pump

Cylindrical axis: Inject high-pressure hydraulic oil between the bearing and the mating surface of the circular shaft to form a high-pressure oil film. Due to the action of oil pressure, the disassembly of the bearing can be completed with only a small force

Conical axis: Inject high-pressure hydraulic oil between the bearing and the mating surface of the conical shaft to form a high-pressure oil film. When sufficient pressure is reached, the bearing will be pushed down.

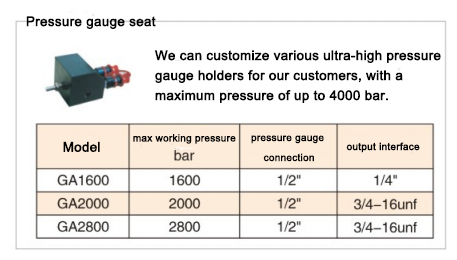

Pressure gauge seat


Portable Manual Hydraulic Pump Ultra High Pressure Dual Speed Design Manual Pump

Feature


1. Hydraulic bolt tensioner pump for pressing
2. Hydraulic nut pressure pump
3. Disassembly and assembly of interference fit shaft/bearing/sleeve
4. Disassembly and assembly of locomotive wheels
5. Dismantling of ship steering gear and propeller
6. Hydraulic installation and disassembly of interference fit (keyless connection) type shafts

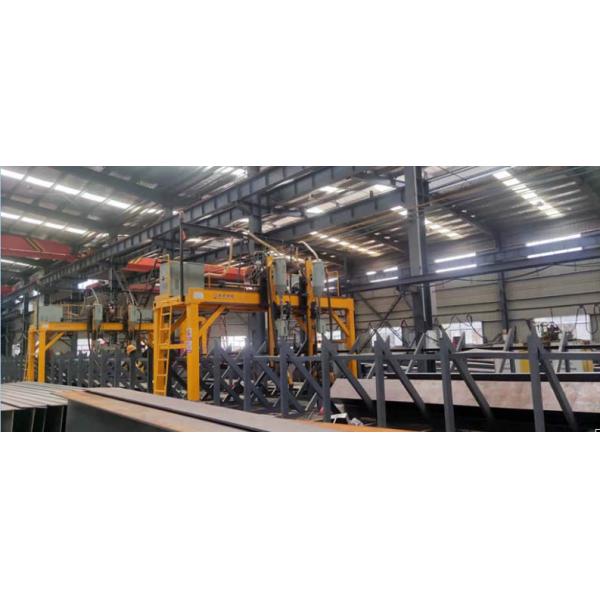

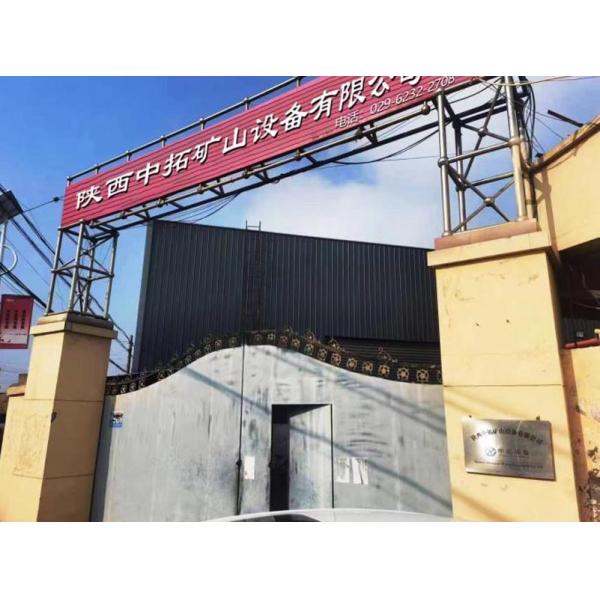

Certified Manufacturer
