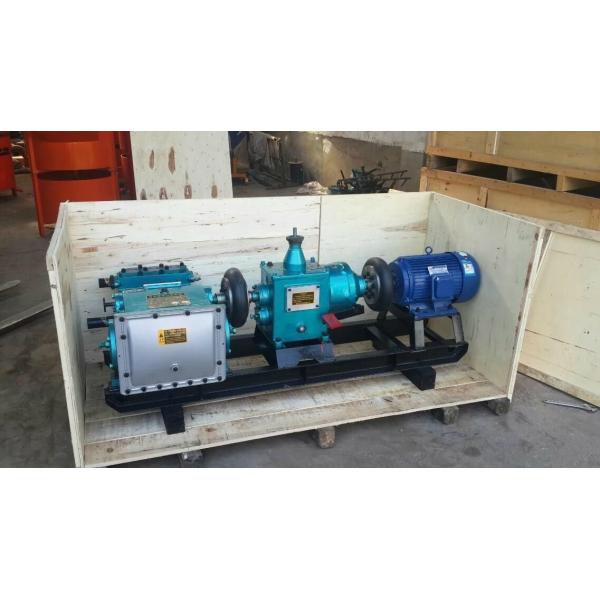

BW150 Mud Transport Equipment Cleaning Liquid Transport Mud Pump
BW150 Mud Transport Equipment Cleaning Liquid Transport Mud Pump
BW150 Mud Transport Equipment Cleaning Liquid Transport Mud Pump
BW150 Mud Transport Equipment Cleaning Liquid Transport Mud Pump
BW150 Mud Transport Equipment Cleaning Liquid Transport Mud Pump
BW150 Mud Transport Equipment Cleaning Liquid Transport Mud Pump
Specifications
Brand Name :
ZT
Model Number :
BW 150
Certification :
CE, ISO, SGS
Place of Origin :
CN
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
10000sets/Year
Delivery Time :
1 week
Max.Flow :
150L/Min
Max.Pressure :
7Mpa
Input Power :
15kw
Suction Pipe Diameter :
76mm
Discharge pipe Diameter :
51mm
Weight :
650kg
Size(mm) :
1560*995*650
Description

BW150 Mud Transport Equipment Cleaning Liquid Transport Mud Pump

Product Description
BW Series Slurry Pump is one of the principal equipment for geological drilling. It delivers the enough volume circulating mud water of desired characteristic under pressure into the well to bring the rock clastic up to the ground, to cool the drill bit to lubricate the drill tool and protect the wall of the well. So the function of the mud pump affects the efficiency of dilling and safety in production directly.
Technical Data
Model
Max.Flow
Max.Pressure
Input Power
Suction Pipe Diameter
Discharge pipe Diameter
Weight
Size(mm)
BW80/3
80L/Min
3Mpa
5.5kw
38mm
25mm
205kg
1220*590*550
BW100/5
100L/Min
5Mpa
18.5kw
76mm
38mm
700kg
2250*750*1770
BW150
150L/Min
7Mpa
7.5kw
51mm
32mm
560kg
1840*795*995
BW160H
160L/Min
1.3Mpa
5.5kw
51mm
32mm
130kg
850*600*450
BW160/10
160L/Min
10Mpa
11kw
51mm
32mm
430kg
1450*745*970
BW200/4
200L/Min
4Mpa
15kw
76mm
51mm
300kg
1050*630*820
BW240/10
240L/Min
10Mpa
15kw
51mm
32mm
430kg
1450*745*970
BW250
250L/Min
7Mpa
15kw
76mm
51mm
650kg
1560*995*650
BW320
320L/Min
10Mpa
30kw
76mm
51mm
720kg
1905*1100*1200
BW350/13
350L/Min
13Mpa
45kw
76mm
51mm
760kg
1850*1050*1230
BW400/10
400L/Min
10Mpa
45kw
76mm
51mm
720kg
1905*1100*1200
BW450
450L/Min
2Mpa
18.5kw
89mm
51mm
540kg
1350*820*1040
BW450/5
450L/Min
5Mpa
22kw
76mm
51mm
520kg
1000*995*650
BW500/10
500L/Min
10Mpa
45kw
89mm
51mm
1200kg
1455*890*1230
BW600/10
600L/Min
10Mpa
55kw
89mm
51mm
1400kg
1500*890*1230
BW750
750L/Min
6Mpa
45kw
89mm
51mm
1400kg
1500*890*1230
BW850/2
850L/Min
2Mpa
37kw
127mm
64mm
1500kg
2000*1030*1400
BW850/5
850L/Min
5Mpa
90kw
152mm
64mm
3100kg
3018*1120*2050

BW series Mud Pump Advantage
1. Multi-speed shift gears for variable displacement. 2. Lightweight structure, easy to move. 3. Easy to operate.
Product Application
BW series mud pump is widely used to transfer water, mud, and other flushing fluids when drilling in water well, and oil and gas well areas, such as mining, drilling, coal, railway, highway, water conservancy, hydropower, and bridges. It can be also used for high-rise buildings, and foundation reinforcement works.
Contact Us
We have many different models for your option, if you are interested in our mud pump or other related pump, welcome to send inquiry to us.
Before we send quotation, please let me know the following questions:
1. What is the pressure and flow you need? (Or what's your hole diameter and hole depth?)
2. Do you need electric motor driven or diesel engine driven or hydraulic motor driven?
3. If you need electric motor driven, the voltage in China is 3 phase 380V 50Hz, is it ok for you?
Packaging&Shipping

BW150 Mud Transport Equipment Cleaning Liquid Transport Mud Pump

Packaging and shipping

Packaging details:

1. Outer packaging: standard sea export bakelite box;

2. Inner packaging: stretch film, moisture-proof plastic film;

3. Customized according to your requirements.

Shipping

1.Port: Tianjin, Qingdao, Shanghai or other ports according to your requirements.

2.Shipping: FOB/CIF/DDU quotations are available.

3.Mode of transportation: Logistics; by car; by train; by transportation; by air, etc.
