Specifications
Brand Name :
ZHONGTUO
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Price :
negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
7-15 Days
Packaging Details :
Wooden Cases
Diameter :
12-16mm
Certification: CE Color: Blue Diameter: 12-16mm Distance of Pushing :
50-200m
Specification :
55× 40× 24cm
Color :
Blue
Voltage :
Three Phase, 380V or Single Phase, 220V
Origin :
China
HS Code :
8475100000
Trademark :
ZHONGTUO
Description

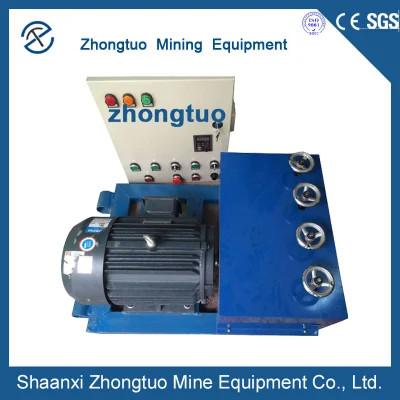

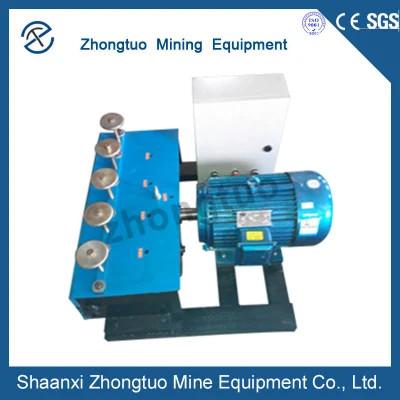

Description of pusher machine

The pc strand-pulling machine is mechanically driven, and the rollers clamp the strand for transmission.

The pc strand-pulling machine can advance, retreat, continuously transmit, and also jog transmission.

To convey the speed of the steel strand with step-less speed regulation.

This pc strand-pulling machine is widely used in large bridges, box beams, and structures.

Working Principle of Pusher Machine

The reducer drives the double driving wheel to rotate, the steel hinge wire is inserted from one end of the wire inlet, and the driving wheel and the double cluster moving wheel press the steel hinge wire to move forward along the conduit and penetrate the reserved hole until the other end of the hole reaches the tension.

Technical Parameter of Pusher Machine

Model Diameter of pc strand Distance of pushing Voltage Power weight Size
of motor
mm m v kw kg cm
LS-4 12 to 16 50 380/220 4 120 55×40×24
LS-5.5 12 to 16 150 380/220 5.5 180 64×44×24
LS-7 12 to 16 200 380/220 7 230 95×44×40

Post Tensioning Bridge Construction Pusher Machine For PC Strand

Post Tensioning Bridge Construction Pusher Machine For PC Strand

The attention of using the Pusher Machine
1. The operators at both ends should cooperate closely, especially when the operator at the incoming end is cutting steel strands or guide caps, the operator at the outgoing end should not put their hands on the control buttons to prevent misoperation and hurt people.
2. When working, people should be prohibited from crossing at both ends to prevent the steel strand from popping out and hurting people.
3. When the pressure roller slips during work and the steel strand do not move forward, it should be stopped immediately to avoid excessive wear of the steel strand and the pressure roller. Work can be continued until the cause is identified and resolved.
4. There is a forced interlock emergency stop design of the cutting machine and the main motor in the circuit diagram, and the user can choose to use it.

Post Tensioning Bridge Construction Pusher Machine For PC Strand
