Hydraulic Synchronous Lifting System Strand Jacks Customizable OEM
Hydraulic Synchronous Lifting System Strand Jacks Customizable OEM
Specifications
Brand Name :
ZT
Model Number :
ZT-300
Certification :
CE ISO
Place of Origin :
China
MOQ :
1PC
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100pcs/month
Delivery Time :
7-15 Work Days
Packaging Details :
Wooden Case
Description

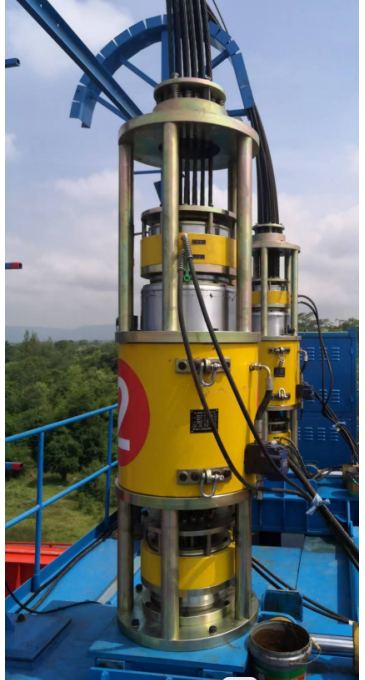

Hydraulic Synchronous Lifting System Strand Jacks

Hydraulic Synchronous Lifting System Strand Jacks include 50Ton 100Ton 150Ton 250 ton,300tons,350tons,400tons,450tons, 500Ton,650tons and so on.

Synchronous lifting hydraulic system for the computer control of the overall lifting and lowering, technology using flexible steel strand bearing, lifting steel strand hydraulic jack cluster, computer control, hydraulic synchronous lifting principle, combined with modern construction technology, mainly used to lift heavy objects.

Parameters

model Safe working load

Working pressure

MPA

Cylinder stroke

mm

Retraction height

mm

Jack weight

KG

Fixed anchor weight

KG

boost speed

m/h

 Number of strands Strand diameter mm
ZT-TSD15 15 31.5 500 1846 148 3.2 0-25 1 18
ZT-TSD45 45 31.5 500 1726 600 28 0-25 3 18
ZT-TSD60 60 31.5 500 1726 630 32 0-25 4 18
ZT-TSD100 100 31.5 500 1790 930 46 70-25 7 18
ZT-TSD180 180 31.5 500 1886 1560 90 0-25 12 18
ZT-TSD280 280 31.5 500 1938 2330 130 0-25 19 18
ZT-TSD300 300 31.5 500 1940 2460 140 0-25 20 18
ZT-TSD400 400 31.5 500 2100 3396 220 0-25 27 18
ZT-TSD580 580 31.5 500 2220 4980 260 0-25 38 18
ZT-TSD680 680 31.5 500 2180 5410 320 0-25 45 18
ZT-TSD800 800 31.5 500 2200 6880 360 0-25 54 18
ZT-TSD1000 1000 31.5 500 2286 8520 560 0-25 66 18

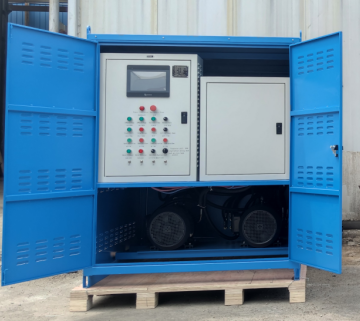

MCLC series hydraulic lifting system

Hydraulic Synchronous Lifting System Strand Jacks Customizable OEMHydraulic Synchronous Lifting System Strand Jacks Customizable OEM

Major component description

Hydraulic Synchronous Lifting System Strand Jacks Customizable OEM
