Automatically Hydraulic Synchronous Lifting System Jack For Bridge And Repositionin
Automatically Hydraulic Synchronous Lifting System Jack For Bridge And Repositionin
Automatically Hydraulic Synchronous Lifting System Jack For Bridge And Repositionin
Automatically Hydraulic Synchronous Lifting System Jack For Bridge And Repositionin
Specifications
Brand Name :
ZHONGTUO
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1
Price :
negotiated
Supply Ability :
10000 set/month
Delivery Time :
7-15 Days
Packaging Details :
Wooden Cases
Cylinder Stroke mm :
500
Working Pressure MPa :
31.5
Specification :
customized
Jack Weight :
148-8520
After-sales Service :
Tracking Guidance & Service
Description
What is the CNC synchronous control jack

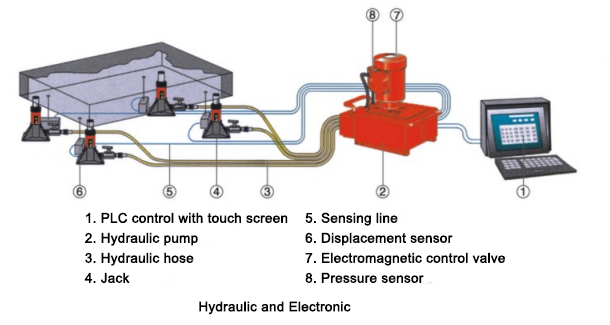

The synchronous lifting system consists of an electric motor, high-pressure hydraulic pump, oil tank and operation control system, jack and oil pipe, splitter, etc.
The flow rate of a pumping station is outputted through a splitter and provided to each executing oil cylinder. The displacement control system controls the loading and lifting speed of each oil cylinder based on the feedback signal from each different measuring point, achieving synchronous lifting action of the entire concrete continuous beam.

As modern transportation becomes increasingly busy, the frequency of reinforcement work for highway bridges and overpasses will increase. By adding additional piers and evenly distributing the load of the bridge beams to the old piers, the traffic flow can be increased.
The use of ultra-thin hydraulic jacks or self-locking hydraulic jacks to lift the bridge, replace the cushion layer, and finally place it back in the new pier position is the current stable maintenance of the bridge.

Automatically Hydraulic Synchronous Lifting System Jack For Bridge And Repositionin

How does the automatic control jack work

  • The digital automatic control system can synchronously control 24 hydraulic cylinders, allowing for more lifting points in parallel facilities
  • Capable of single person operation, computer control provides a user-friendly human-machine interface
  • High precision sensor (+1mm) measures the accurate position of the load
model

working pressure

Bar

Flow rate

L/min

Power source

Remote control cable

m

weight

kg
PTC 700 10.5 230V/50Hz 6 38

Usage scenarios for synchronous lifting of jacks

  • Bridge Jacking and Repositioning
  • Jacking and Lowering of Heavy Equipment
  • Building structure uplift
  • Leveling of existing buildings
  • Hull Jacking
  • Structural testing
  • Jacking and weighing of oil platforms
  • Synchronous pressurization
  • Horizontal load movement
  • Heavy objects are heavy
  • Tunnel support and propulsion

Automatically Hydraulic Synchronous Lifting System Jack For Bridge And RepositioninAutomatically Hydraulic Synchronous Lifting System Jack For Bridge And Repositionin
