Intelligenct Solar Panel Cleaning Machine All Specs Available Quality Guarantee
Intelligenct Solar Panel Cleaning Machine All Specs Available Quality Guarantee
Specifications
Brand Name :
ZT
Model Number :
ZTZD-20
Certification :
CE, ISO, SGS
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram, D/P, D/A
Delivery Time :
1 week
Length, width and height :
1200*700*240mm
Battery :
lithium battery
Battery endurance :
6 hours
Suitable for temperature :
-10~50°C
Control mode :
total intelligence
Products model :
ZTZD-20
Description

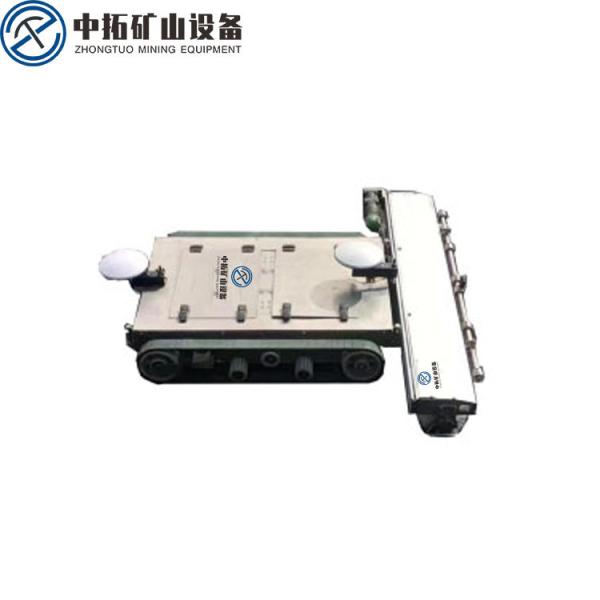

Description of Intelligent Solar Panel Cleaning Machine

The Intelligent Solar Panel Cleaning Machine consists mostly of the cleaning machine body, data transmission system, positioning system, power system, battery, operation APP, and cloud platform monitoring system.
The robot uses a completely intelligent, fully automated, unattended cleaning mode for the cleaning and maintenance of photovoltaic modules in solar power plants.
The intelligent cleaning robot is capable of autonomous navigation, positioning, cleaning, and charging thanks to high-precision satellite positioning. Under some conditions, the cleaning can be performed without the need for manual intervention.

This smart solar panel cleanup kit includes the following features:
1. Full intelligence and automation.
2. Recognize unmanned
3. High cleaning efficiency.
4. The turning radius is quite tiny, and there is no cleaning dead angle.
5.The waterproof, dustproof, and anti-fog grade is high.
6.Support mobile phone APP/small program or PC web-side remote real-time view of the machine's running status.
7. It can be adjusted based on your specifications.
8.It can be switched to manual remote control mode under specific conditions.
9. Highly scalable.

Intelligenct Solar Panel Cleaning Machine All Specs Available Quality Guarantee

Product parameter of Fully intelligent cleaning machine

Products model:

ZTZD-20
Dimension

1200*700*240mm
Power source: lithium battery
Battery capacity: 40AH
Protection class IP65
Battery endurance 6 hours
Operating power 200w
Design life : 6 years
Controller Industrial PC (self-developed)
Communication protocol RS-485
Applicable temperature -10-50°C
Control platform APP , Applet, Web
Type automatic, remote control
Working mode

Clean mode

No water

 Cleaning speed : 0-20 m/min (adjustable)
Applicable temperature: -10-50°C

Cleaning efficiency

1200 m/h
Maximum longitudinal slope

<20°

 Maximum lateral slope

<15°
Component surface coverage

120%

 Span distance

≤600mm

RTK horizontal positioning accuracy

1.0cm + 1ppm (RMS)

Anti-drop auxiliary

support

Visual system

optional

4G communication module

support

Night operation

 support

Certifications

Intelligenct Solar Panel Cleaning Machine All Specs Available Quality Guarantee
