0.8mm Pitch Electronic Components Connectors Height 1.85mm WTB Connector
0.8mm Pitch Electronic Components Connectors Height 1.85mm WTB Connector
0.8mm Pitch Electronic Components Connectors Height 1.85mm WTB Connector
0.8mm Pitch Electronic Components Connectors Height 1.85mm WTB Connector
Specifications
Brand Name :
WINSHOR
Model Number :
WF08001-0XX-R00X02
Certification :
ROHS,SGS,ISO
Place of Origin :
China
MOQ :
Customize
Payment Terms :
T/T
Delivery Time :
1-3 weeks
Packaging Details :
Reel
Pitch :
0.8mm
Pins :
2-30PINS
Height :
1.85mm
HOUSING :
HIGH-TEMP THERMOPLASTIC UL94V-O,COLOR:NATURAL
TERMINAL :
COPPER ALLOY,PLATNG:GOLD FLASH
SMT :
Horizontal Smt
Description

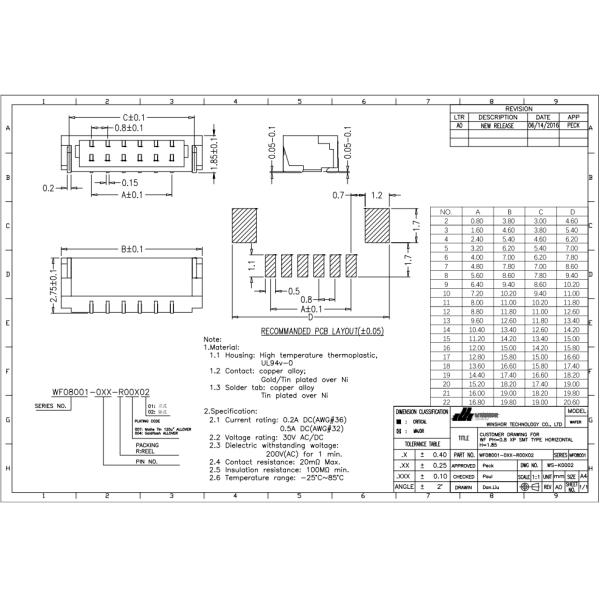

Horizontal WTB 0.8mm Pitch Wafer Wire To Board Connector Vertical Smt Height 1.85mm

0.8mm Pitch Electronic Components Connectors Height 1.85mm WTB Connector

Note:
1.Material:
1.1 Housing:High temperature thermoplastic,UL94v-0
1.2 Contact:copper alloy;
Gold/Tin plated over Ni
1.3 Solder tab:copper alloyTin plated over Ni
2.Specification:
2.1 Current rating:0.2A DC(AWG#36)
0.5A DC(AWG#32)
2.2 Voltage rating:30V AC/DC
2.3 Dielectric withstanding woltage:200V(AC)for 1 min.
2.4 Contact resistance:20mΩ Max.
2.5 Insulation resistance:100MΩ min.
2.6 Temperature range:-25°C~85°C

NO. A B C D
2 0.80 3.80 3.00 4.60
3 1.60 4.60 3.80 5.40
4 2.40 5.40 4.60 6.20
5 3.20 6.20 5.40 7.00
6 4.00 7.00 6.20 7.80
7 4.80 7.80 7.00 8.60
8 5.60 8.60 7.80 9.40
9 6.40 9.40 8.60 10.20
10 7.20 10.20 9.40 11.00
11 8.00 11.00 10.20 11.80
12 8.80 11.80 11.00 12.60
13 9.60 12.60 11.80 13.40
14 10.40 13.40 12.60 14.20
15 11.20 14.20 13.40 15.00
16 12.00 15.00 14.20 15.80
17 12.80 15.80 15.00 16.60
18 13.60 16.60 15.80 17.40
19 14.40 17.40 16.60 18.20
20 15.20 18.20 17.40 19.00
21 16.00 19.00 18.20 19.80
22 16.80 19.80 19.00 20.60
