2-6 GHz 23 DBM Rf Amplifier Broadband Performance​ Reliability 14 DB Small Signal Gain
2-6 GHz 23 DBM Rf Amplifier Broadband Performance​ Reliability 14 DB Small Signal Gain
Specifications
Brand Name :
ZR Hi-Tech
Model Number :
LT-PA-020060-G14P23
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Delivery Time :
4 weeks
Packaging Details :
carton packing
Product name :
LT-PA series Power Amplifier
Application :
Wireless Communication
Global Compliance​​ :
CE, RoHS, and REACH
Temperature Range :
-40~85℃
Frequency range :
2 to 6 GHz
Power Output :
23dBm
Description

​​2-6GHz LT-PA Series Power Amplifier​​

​​Key Features:​​

  • ​​Broadband Performance (2-6GHz)​​: Optimized for multi-band applications
  • ​​High Power Output (23dBm)​​: Delivers robust signal amplification
  • ​​Precision Gain (14dB)​​: ±1.0dB flatness ensures signal integrity
  • ​​Rugged Aluminum Enclosure​​: Provides superior EMI protection
  • ​​Wide Temperature Range (-40℃~+85℃)​​: Reliable operation in extreme conditions
  • ​​Custom Frequency Options​​: Tailored to specific system requirements
  • ​​Global Compliance​​: CE, RoHS, and REACH certified
  • ​​Quality Assurance​​: Backed by 1-year warranty

​​Product Overview:​​

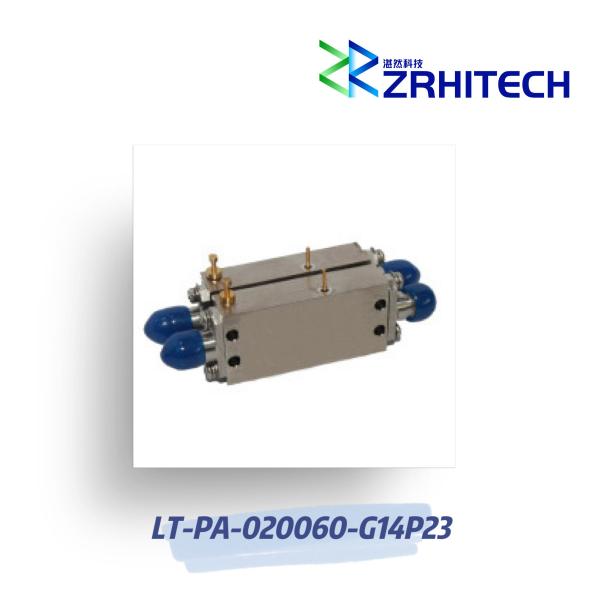

The ​​ZR LT-PA-020060-G14P23​​ is a high-performance RF power amplifier featuring ​​14dB gain​​ (±1.0dB flatness) across ​​2-6GHz​​, with ​​23dBm output power​​ capability. Designed for demanding RF applications, this amplifier combines power efficiency with exceptional signal fidelity.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)



Items Specification Conditions
Part Number LT-PA-020060-G14P23
Configuration Module with Connector
Frequency Range 2 to 6 GHz
Small Signal Gain 14 dB
Gain Flatness ±1.0 dB
Output Power 23 dBm
Input Power 15 dBm
VSWR 2.0:1
Power Supply +12V / 150mA
Operating Temperature -40 to +85 ℃
Dimension 34.4*16.8*8.1 mm
Note: for custom specs, please contact us directly.
