30dB Small Signal Gain​ Low Noise RF Amplifier 1-18 GHz Gain 10dBm High Linearity
30dB Small Signal Gain​ Low Noise RF Amplifier 1-18 GHz Gain 10dBm High Linearity
Specifications
Brand Name :
ZR Hi-Tech
Model Number :
LT-LA-010180-G30P10
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Delivery Time :
4 weeks
Packaging Details :
carton packing
Product name :
LT-CR series Low Noise Amplifier
Features :
High Gain
Material :
Aluminum
Temperature :
-40~85℃
Frequency range :
1-18GHz
Low Noise Figure :
3.5dB
Description

​​1-18GHz Low Noise Amplifier (30dB Gain, 10dBm Output Power)​​

​​Key Features:​​

  • ​​Ultra-Wideband (1-18GHz)​​: Supports multi-band RF applications
  • ​​High Gain (30dB)​​: Ensures superior signal amplification
  • ​​Low Noise Design​​: Optimized for maximum signal clarity
  • ​​Robust Construction​​: Aluminum housing for EMI shielding and durability
  • ​​Minimal Insertion Loss​​: Preserves signal integrity
  • ​​Extended Temperature Range (-40℃~+85℃)​​: Reliable performance in harsh environments
  • ​​Integrated Connectors​​: Ready for immediate deployment
  • ​​Global Certifications​​: CE, RoHS, and REACH compliant
  • ​​Warranty Coverage​​: 1-year quality guarantee

​​Product Overview:​​

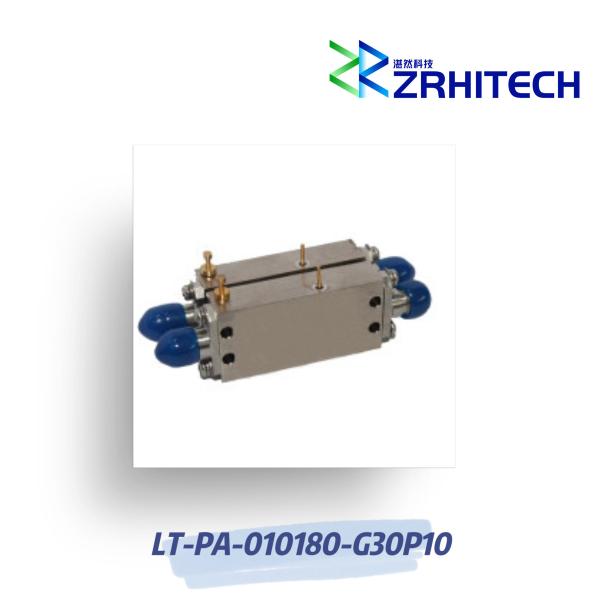

The ​​ZR LT-LA-010180-G30P10​​ is a high-performance RF amplifier delivering ​​30dB gain​​ (±2.5dB flatness) across ​​1-18GHz​​, with ​​10dBm output power​​ capability. Engineered for precision signal amplification, this low-noise amplifier (LNA) is ideal for demanding RF systems requiring both wide bandwidth and exceptional signal fidelity.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)


Items Specification Conditions
Part Number LT-LA-010180-G30P10
Frequency Range 1-18GHz
Small Signal Gain 30dB Min.
Gain Flatness +/-2.5dB Min.
Niose Figure 3.5dB Max.; 3.0dB Typ.
Input VSWR 2.2:1 Max.
Output VSWR 2.2:1 Max.
Output Power 10dBm Min.
Power Supply +12V/120mA
Operating Temperature -45 to +85 ℃
Connectors SMA-Female
Dimension 34.4x16.8x8.1mm
Note: for custom specs, please contact us directly.
