Precision Gain Control 0.5-18 GHz 12dBm Rf Amplifier 10dB Ruggedized Construction High Power Density
Precision Gain Control 0.5-18 GHz 12dBm Rf Amplifier 10dB Ruggedized Construction High Power Density
Specifications
Brand Name :
ZR Hi-Tech
Model Number :
LT-PA-005180-G10P12
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Delivery Time :
4 weeks
Packaging Details :
carton packing
Product name :
LT-PA series Power Amplifier
Application :
Wireless Communication
Warranty :
12-Month
Operating Temperature Range :
-40~85℃
Bandwidth Coverage :
0.5 to 18 GHz
Color :
Silver
Description

​​Ultra-Wideband 0.5-18GHz Power Amplifier​​

​​Key Features:​​

  • ​​Exceptional Bandwidth Coverage (0.5-18GHz)​​
  • ​​10dB Signal Gain with ±2.0dB Flatness​​
  • ​​12dBm Output Power Capability​​
  • ​​Robust Aluminum Housing​​
  • ​​Wide Operating Temperature Range (-40°C to +85°C)​​
  • ​​Custom Frequency Optimization Available​​
  • ​​Compliant with CE/RoHS/REACH Standards​​
  • ​​12-Month Manufacturer Warranty​​

​​Product Description:​​

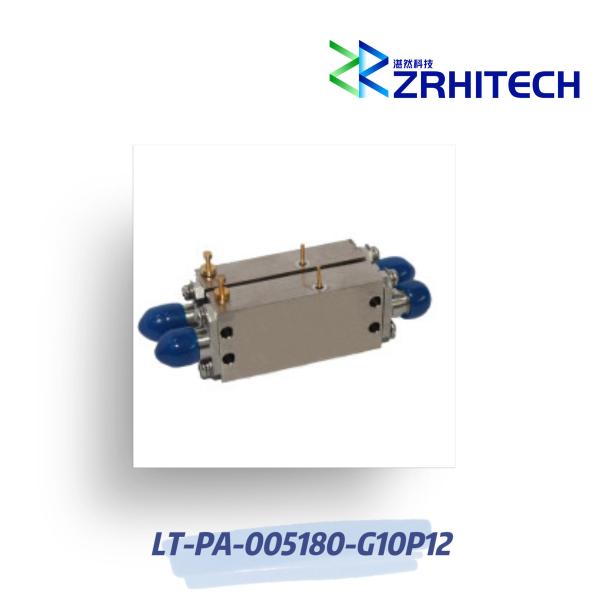

The ​​ZR LT-PA-005180-G10P12​​ represents a breakthrough in ultra-wideband amplification technology, delivering ​​10dB gain​​ with ​​±2.0dB flatness​​ across an unprecedented ​​0.5-18GHz bandwidth​​. This high-performance amplifier generates ​​12dBm output power​​ from ​​10dBm input​​, making it ideal for demanding wideband applications.




Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)




Items Specification Conditions
Part Number LT-PA-005180-G10P12
Configuration Module with Connector
Frequency Range 0.5 to 18 GHz
Small Signal Gain 10 dB
Gain Flatness ±2.0 dB
Output Power 12 dBm
Input Power 10 dBm
VSWR 2.0:1
Power Supply +12V / 150 mA
Operating Temperature -55 to +85 ℃
Dimension 34.4*16.8*8.1 mm
Note: for custom specs, please contact us directly.
