High Efficiency Inclined Plate Sedimentation Tank In Wastewater Treatment Industrial Equipment
High Efficiency Inclined Plate Sedimentation Tank In Wastewater Treatment Industrial Equipment
High Efficiency Inclined Plate Sedimentation Tank In Wastewater Treatment Industrial Equipment
High Efficiency Inclined Plate Sedimentation Tank In Wastewater Treatment Industrial Equipment
Specifications
Brand Name :
Zhongqiao Enlightenment
Model Number :
Inclined Plate Sedimentation Tank
Certification :
SGS
Place of Origin :
Shandong,China
MOQ :
1set
Price :
4500USD-13800USD
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Supply Ability :
70Set Per Month
Delivery Time :
7-30 working days
Packaging Details :
container or customized
Outline Dimension :
3500×1500×2700mm
Water Treatment Capacity (m³/d) :
5
Weight :
2.8t
Running :
8t
Description

High-Efficiency Inclined Plate Sedimentation Tank for Wastewater Treatment, Industrial Equipment

Introduction

The inclined tube (plate) sedimentation tank is an efficient combination sedimentation tank designed based on the theory of shallow tank sedimentation, also known as a shallow tank sedimentation tank. Set up many dense inclined pipes or plates in the settling area to allow suspended impurities in the water to settle in the inclined pipes or plates. The water rises and flows along the inclined pipes or plates, and the separated sludge slides down along the inclined pipes (plates) under the action of gravity to the bottom of the pool and is then discharged in a concentrated manner.

Features of the equipment

This structure can improve precipitation efficiency by 50-60% and increase processing capacity by 2-4 times on the same area. According to the experimental data of the original wastewater, inclined tube sedimenters with different flow rates can be designed, and coagulants are generally added during use.

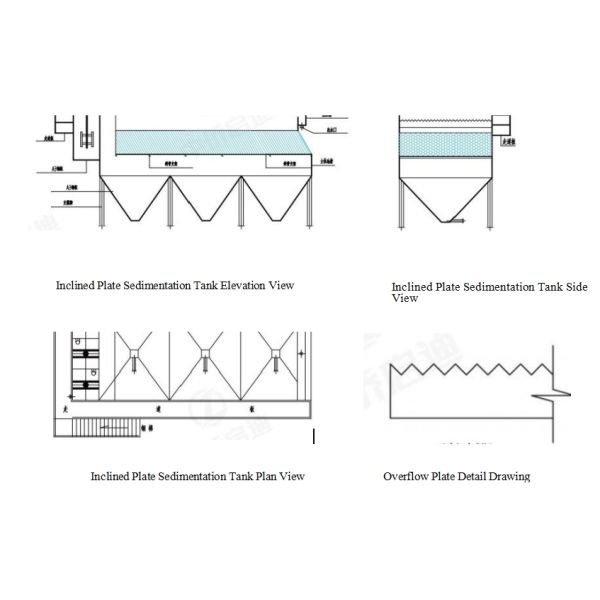

Structure and principle

The inclined tube sedimentation purification method is to install inclined tube components with a tilt angle of 60 degrees above the sludge suspension layer, so that suspended solids, solids or flocs formed by adding coagulants in the raw water can aggregate into a thin sludge layer on the bottom surface of the inclined tube, slide back to the sludge suspension layer by gravity, and then sink into the sludge collection hopper. The sludge is discharged into the sludge tank through the discharge pipe for further treatment or comprehensive utilization, and the supernatant gradually rises to the clean water area for discharge, which can be directly discharged or reused.

High Efficiency Inclined Plate Sedimentation Tank In Wastewater Treatment Industrial Equipment

Technical Specifications
Outline Dimension(mm) Water Treatment Capacity (m³/d) Weight
Equipment (t) Running (t)
3500×1500×2700 5 2.8 8
4600×1700×2700 10 3.3 13
6000×1700×2700 15 3.8 18
6500×2000×2700 20 4.2 25
6700×2000×3000 25 5 31
6900×2000×3000 30 6 37
8200×2200×3000 40 6.8 48
9800×2200×3000 50 8.1 60

High Efficiency Inclined Plate Sedimentation Tank In Wastewater Treatment Industrial Equipment
High Efficiency Inclined Plate Sedimentation Tank In Wastewater Treatment Industrial Equipment

Processing parameter requirement
Parameters/Index Inflow water quality mg/L (ppm) Outflow water requirement mg/L (ppm)
COD
BOD
TSS
Ammonia nitrogen
TN
TP
PH
E.coli
Others
Water flow m³/d
On/Underground If underground,pls indicate the depth
If integrated with control room
Appearance requirement Simple appearance, container appearance, Zhong qiao container appearance, please refer to our brochure for details
Voltage, HZ, Electric phase
Distance between regulating pool and equipment
Flange interface specifications
Special requirements
