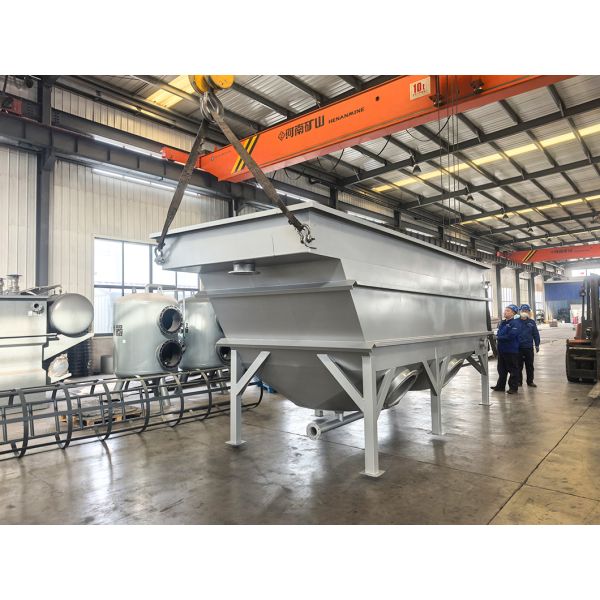

Wastewater Treatment Lamella Sedimentation Tank Integrated Purification Customizable Industrial Sedimentation Unit
Wastewater Treatment Lamella Sedimentation Tank Integrated Purification Customizable Industrial Sedimentation Unit
Wastewater Treatment Lamella Sedimentation Tank Integrated Purification Customizable Industrial Sedimentation Unit
Wastewater Treatment Lamella Sedimentation Tank Integrated Purification Customizable Industrial Sedimentation Unit
Specifications
Brand Name :
Zhongqiao Enlightenment
Model Number :
Lamella Sedimentation Tank
Certification :
SGS
Place of Origin :
Shandong,China
MOQ :
1set
Price :
2500USD-13800USD
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Supply Ability :
90Set Per Month
Delivery Time :
7-30 working days
Packaging Details :
container or customized
Retentiontime :
4 hours
Application :
Water and Wastewater Treatment
Dimensions :
Length 6m x Width 2m x Height 2.5m
Inlettype :
Overflow Inlet
Capacity :
5000 liters
Powerrequirement :
None (gravity based)
Productname :
Lanmeila Sedimentation Tank
Outlettype :
Sludge Outlet
Operatingtemperaturerange :
-10°C to 60°C
Maintenance :
Easy to clean and maintain
Installationtype :
Above Ground
Material :
Stainless Steel
Surfaceloadingrate :
1.5 m³/m²/hr
Type :
Sedimentation Tank
Weight :
1200 kg
Description

Lamella Sedimentation Tank, Wastewater Treatment, Integrated Purification, Customizable, Industrial Sedimentation Unit

Introduction

Lamella is a new type of high-efficiency water purification and clarification technology, featuring rapid sedimentation characteristics, mainly used to remove solids and particulate matter from water bodies.

It has been widely applied in solid-liquid separation processes such as raw water clarification, wastewater treatment, and sludge thickening. This technology demonstrates more significant advantages under conditions with higher suspended solids concentration, enabling efficient sedimentation of all solids within a specified timeframe. The separation process is straightforward and economical.


Wastewater Treatment Lamella Sedimentation Tank Integrated Purification Customizable Industrial Sedimentation Unit

Comparative items Lamella Sedimentation Pond Conventional inclined tube sedimentation tank
Structural form Parallel inclined plate structure, plate spacing 50–100mm, inclination angle 50°–60° Honeycomb hexagonal / rectangular tubular components, pipe diameter 25–50mm, inclination angle 60°
Hydraulic conditions Lamella flow of water, Reynolds number <200, Froude number 10⁻³~10⁻¹ Smaller hydraulic radius, Reynolds number ＜200, more stable flow, Froude number 10⁻³~10⁻⁴
Processing Efficiency Surface load is 2–4 times that of traditional sedimentation tanks, treatment capacity is 9–25 times that of horizontal flow tanks, sedimentation efficiency is 3–5 times that of inclined tube tanks, flow rate can be increased by 15%–35% Surface load 3–5 m³/(m²・h), removal rate of particles above 10μm 90%, retention time 15–30min
Shock Resistance and Adaptability Stronger resistance to shock load, suitable for high load scenarios Stronger adaptability to raw water with high turbidity
Space Occupation and Installation Modular design, occupying only 1/25 of the area of a horizontal flow sedimentation tank Higher installation space requirements
Maintenance Characteristics Equipped with online backwashing system, can be cleaned without stopping the water supply, sludge discharge system is optimized, not prone to blockage Structurally dense, prone to silt accumulation, requires regular cleaning, maintenance costs are high
Investment and Operation Material costs are 20%–30% higher, operating costs are low Less material consumption, low initial investment
Application Scenarios Limited space, sewage treatment upgrades, oil-containing / fibrous impurity wastewater (e.g., papermaking) Low flow rate, high turbidity water treatment (e.g., Yellow River water purification)

Working Principle

The inclined plate sedimentation tank is a high-efficiency solid-liquid separation device based on lamellar sedimentation theory.

Sewage flows into the tank and passes through a group of closely arranged inclined plates. Under gravity, suspended solids in the wastewater settle onto the plate surfaces, forming sludge that slides down to the sludge hopper at the bottom.

The inclined structure greatly increases the effective sedimentation area and shortens the settling distance of particles, significantly improving separation efficiency while reducing the overall footprint and residence time. Clean water after sedimentation overflows from the top outlet for subsequent treatment.


Wastewater Treatment Lamella Sedimentation Tank Integrated Purification Customizable Industrial Sedimentation Unit

Wastewater Treatment Lamella Sedimentation Tank Integrated Purification Customizable Industrial Sedimentation Unit
