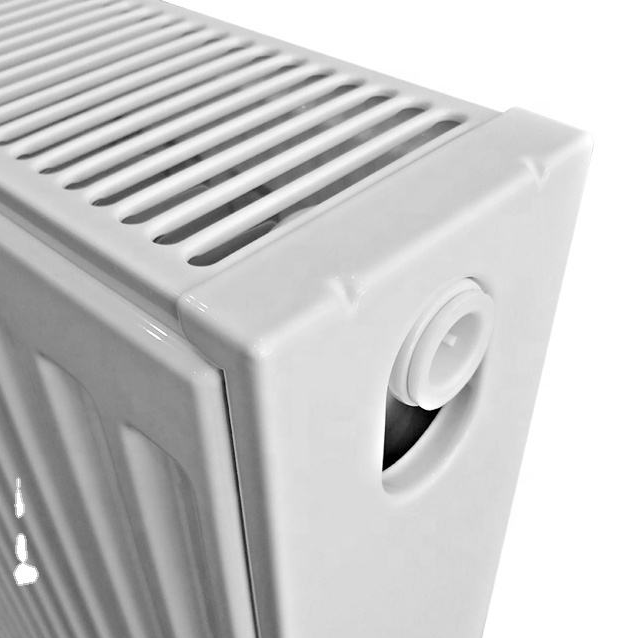

Steel Panel Radiator

Our Steel Panel Radiator is a versatile heating terminal designed for residential, commercial, and building heating applications. Its steel panel construction delivers efficient heat emission while maintaining a clean and compact profile for wall-mounted installations.

The range includes Type 22 and Type 33 panel radiators, with several height and connection options available. This allows heating distributors, contractors, and project engineers to select a suitable configuration according to system capacity and installation requirements.

Designed for Efficient Heat Emission

The radiator combines profiled steel panels with integrated convection fins to increase the heat-transfer area. As heated air rises and circulates through the room, the radiator helps provide steady and comfortable indoor heating.

It can be integrated into a variety of water-based heating systems, including conventional boiler systems and modern air source heat pump installations.

Strong Steel Construction

Manufactured from cold-rolled steel, the radiator is designed to maintain its structural stability during long-term operation.

The precisely formed panels and automated welding process provide consistent construction across production batches, while controlled manufacturing tolerances help ensure reliable installation and connection alignment.

Type 22 & Type 33 Panel Radiators

Two popular configurations are available to accommodate different heat output requirements.

Type 22
Two steel panels combined with two convection fin layers provide a balanced solution for general residential and commercial heating.

Type 33
Three panels and three convection fin layers provide increased heat-emitting capacity where additional heating performance is required.

The choice between Type 22 and Type 33 can be made according to room heat demand, available installation space, and heating system design.

Multiple Sizes for Different Installations

Different buildings require different radiator dimensions. Our product range covers multiple height options:

300 mm · 400 mm · 500 mm · 600 mm · 900 mm · 1800 mm

The available dimensions make it easier to match radiator placement with windows, walls, furniture layouts, and existing pipework.

Side or Bottom Connection Options

Connection configuration is another important consideration when replacing or designing a heating system.

Our steel panel radiators are available with side and bottom connection options, providing greater flexibility for different piping layouts and installation conditions.

This makes them suitable for both new construction and radiator replacement projects.

Multi-Stage Surface Treatment

To improve the durability of the exterior finish, the radiator goes through a controlled surface preparation and coating process.

The manufacturing process includes cleaning, surface treatment, and automated powder coating, producing a smooth and consistent finish while improving resistance to corrosion and coating separation.

The finished surface is suitable for residential interiors as well as commercial and public buildings.

Manufacturing Process

Each radiator is produced through a standardized manufacturing workflow:

Steel Forming → Precision Stamping → Automated Welding → Surface Treatment → Powder Coating → Pressure Testing → Quality Inspection

Automated production helps maintain consistent dimensions, welding quality, and coating coverage. Finished units are inspected and pressure-tested before shipment.
