Ceiling Mounted 8 Way FCU Cassette Type High Efficiency HVAC Terminal
Ceiling Mounted 8 Way FCU Cassette Type High Efficiency HVAC Terminal
Specifications
Power Input :
38W
Brand Name :
ZOVIV
Noise :
40dB
Model Number :
FP-85KM-8W
Power Supply :
220-240v/1ph/50Hz
Drain pipe :
Male thread 20mm
Payment Terms :
L/C,D/A,D/P,T/T
Water pipe for in/out :
ZG3/4” Femal thread
Packing Size :
860*860*380mm
Place of Origin :
China
Control way :
Wired or remote controller
Description
8 Way Cassette Fan Coil Unit for Advanced Ceiling HVAC Systems

The 8 Way Cassette Fan Coil Unit is an advanced ceiling-mounted HVAC terminal unit designed to provide efficient airflow distribution and comfortable indoor environments for commercial and residential applications.

Featuring an innovative eight-sided air outlet design, the unit delivers air quickly and evenly throughout the room, reducing airflow resistance and improving temperature consistency while maintaining low-noise operation.

The machine adopts an eight-sided air outlet design, which reduces the indoor air supply resistance, quickly delivers the airflow to every corner, makes the space environment temperature more uniform, and achieves low noise in overall operation.

DESIGN FEATURES
Control

√ Remote controller (Standard)
√ Wired controller (Optional) One unit could control at most 30 units
√ RS485 master-slave control (Standard)
√ WIFI connection (Optional)

Filter:
Removable and washable

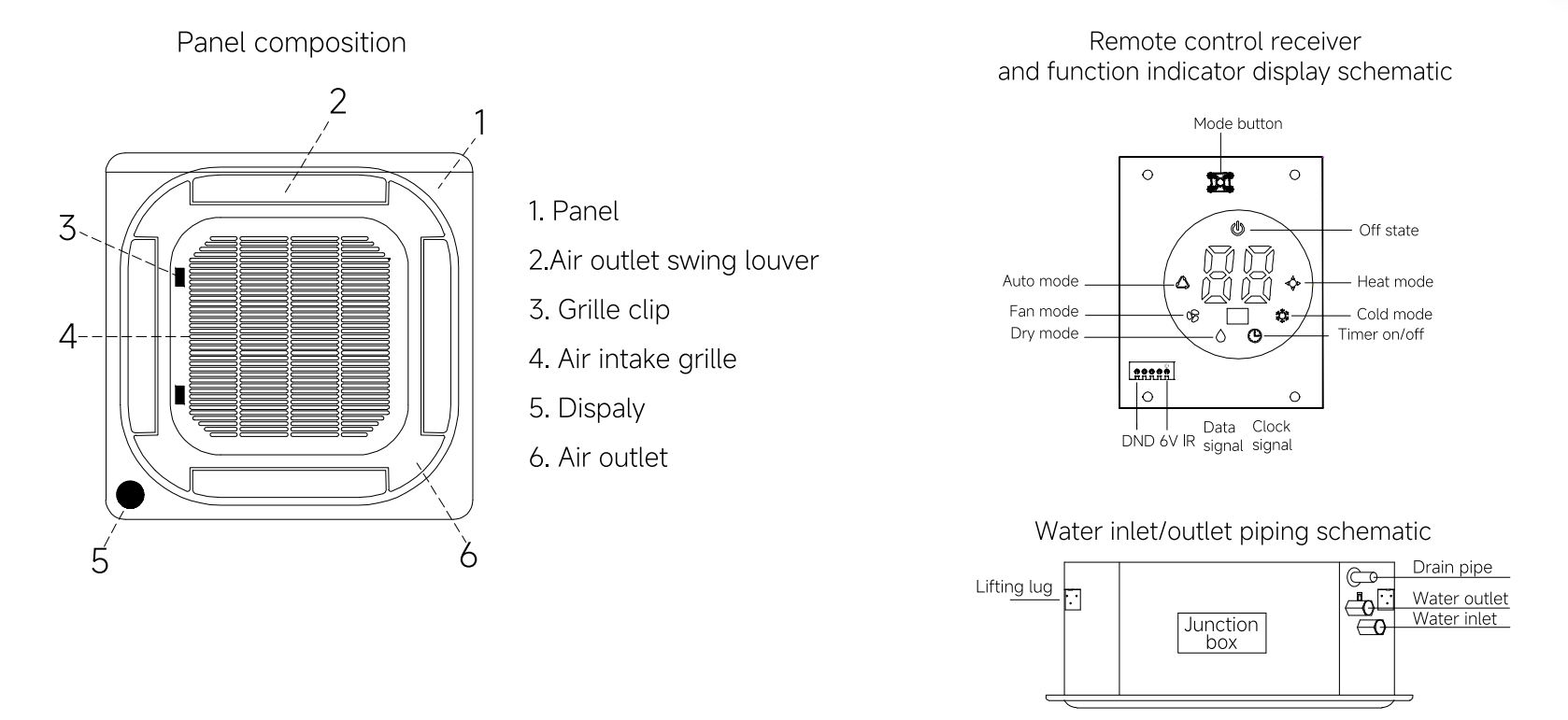

Panel:
It has a beautiful and elegant ABS panel, arc rounded corners, high-end atmosphere, integrated into a variety of decoration styles, and the digital display adopts the most popular light-transmitting design. The panel and the unit are connected by four-corner buckles, which makes installation and maintenance more convenient and convenient
Body:
Made of galvanized steel plate, with high-density sound insulation and heat insulation foam inside, with fresh air outlet
Heat exchanger:
It is composed of copper tubes and hydrophilic aluminum foil, with exhaust valve.
Drain pan:
it molded with high-density polystyrene
Drain pump:
The maximum lift is 100CM with water level switch

Ceiling Mounted 8 Way FCU Cassette Type High Efficiency HVAC Terminal
Ceiling Mounted 8 Way FCU Cassette Type High Efficiency HVAC Terminal

ModelFP-85KM-8WFP-102KM-8WFP-136KM-8WFP-170KM-8WFP-204KM-8WFP-238KM-8W
Cooling Ca. (kw) ( 7℃ )H4.985.47.29.910.812.6
Heating Ca. (kw) ( 60℃)H7.28.110.814.516.218.9
Air flow (m³/h)H85010201360170020402380
M6387881095127515751850
L42552573085010501250
Power Input (W)38507575125125
Noise dB (A)404243444649
Static pressure (Pa)12
Power Supply220-240v/1ph/50Hz
Control wayWired or remote controller
Water pipe for in/outZG3/4" Femal thread
Drain pipeMale thread 20mm
Packing Size(mm)860*860*3801000*1000*380

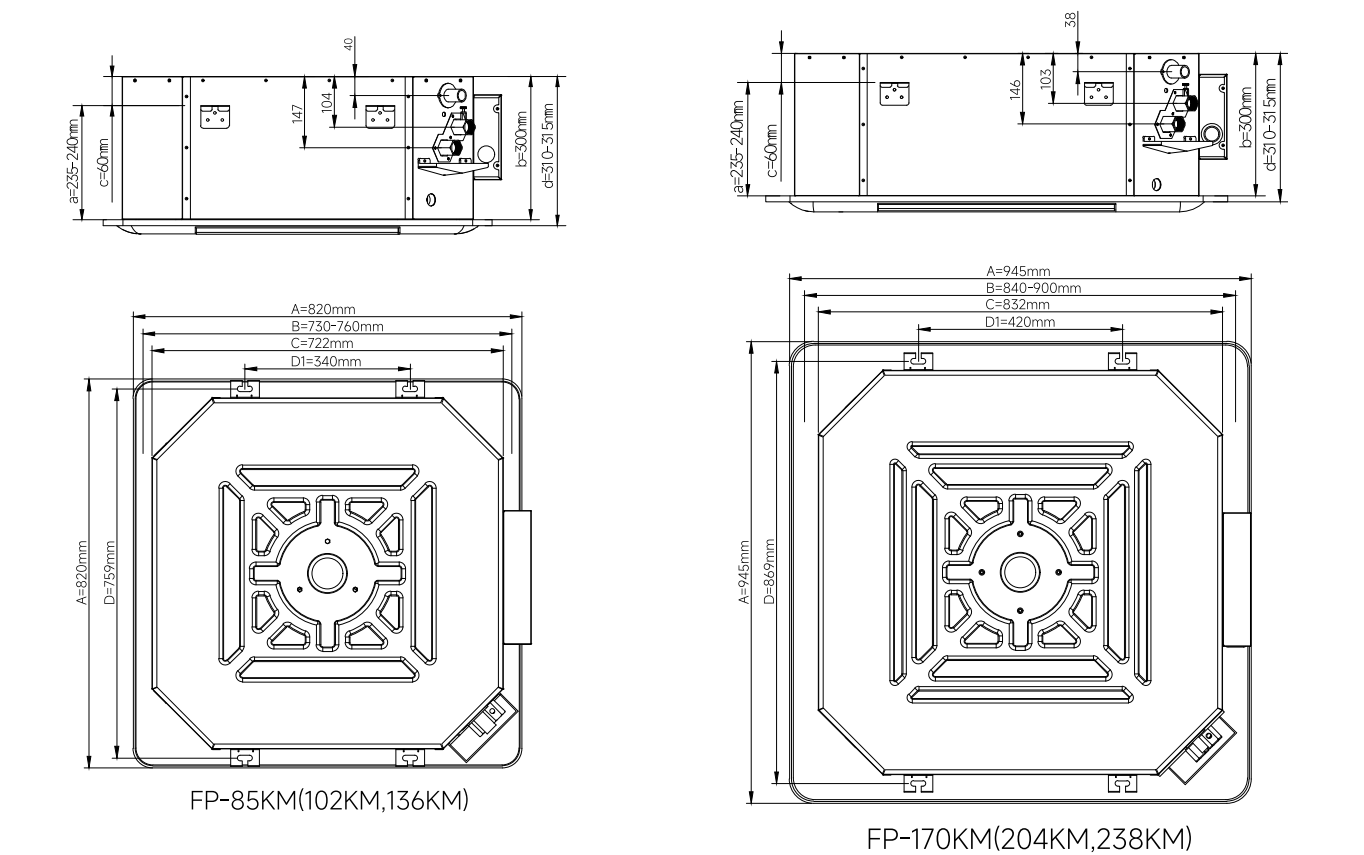

Install whole open size(mm)730-760840-900
