Compact Ultra Slim Fan Coil Horizontal Concealed Ceiling Chilled Water FCU
Compact Ultra Slim Fan Coil Horizontal Concealed Ceiling Chilled Water FCU
Specifications
Power consumption :
116W
Brand Name :
ZOVIV
Application :
hotel,restaurant,hospital,shopping mall,factory and office building
Model Number :
CBFCU- 08EC
Net weight :
31kg
Packaging Details :
1740*565*250mm
Air flow :
1750m³/h
Payment Terms :
L/C,D/A,D/P,T/T
Mounting Type :
Ceiling Mount
Motor power :
60W
Motor Type :
EC
Place of Origin :
China
Gross Weight :
35kg
Description

220V Ultra-Thin Horizontal Concealed Fan Coil Unit

The 220V Ultra-Thin Horizontal Concealed Fan Coil Unit is designed for modern chilled water HVAC systems. With its compact horizontal design, it fits easily into suspended ceilings and limited installation spaces, making it ideal for residential, commercial, hotel, school, and industrial applications.

Key Features

  1. Ultra-Thin Design: Space-saving horizontal structure for concealed ceiling installation.
  2. Efficient Cooling: Compatible with chilled water systems for stable and efficient temperature control.
  3. Low Noise: ABS silent fan wheel helps reduce operating noise to ≤45dB(A).
  4. Energy Saving: Efficient AC motor delivers strong airflow with controlled energy consumption.
  5. High Airflow: Airflow range from 530 to 1750 m³/h with 12Pa static pressure.
  6. Easy Maintenance: Detachable housing and fan wheel simplify cleaning and servicing.
  7. Durable Components: Anti-corrosion drain pan and high-density hydrophilic aluminum fins ensure reliable long-term operation.

Applications

Suitable for residential buildings, hotels, schools, offices, factories, greenhouses, and commercial HVAC projects.

Ultra-thin concealed fan coil unit (0-10v EC motor)
Model CBFCU-
03EC		 CBFCU-
04EC		 CBFCU-
05EC		 CBFCU-
06EC		 CBFCU-
08EC		 CBFCU-
10EC
Motor power (w) 60
Power consumption
(w)		 33 45 52 83 63 116
Motor NO. 1 2
Air flow
(m³/h)		 530 700 875 1080 1395 1750
Cooling capacity
kw(7°C chilled water)		 2850 3730 4700 5724 7810 9486
Heating capacity
kw(60°C hot water)		 5000 6520 7220 9108 11870 14810
Water flow(m³/h) 0.55 0.7 0.8 1 1.3 1.58
Weight(kg) Net
weight		 18.3 18.5 21.2 21.5 30.6 31
Gross
weight		 21 21.3 24.4 24.7 34.6 35
Coil length mm 650 650 900 900 1350 1350
Coil width mm 210
Coil thickness mm 39
Package
size mm		 L 1040 1040 1290 1290 1740 1740
H 565
W 250
All figurs in MMCompact Ultra Slim Fan Coil Horizontal Concealed Ceiling Chilled Water FCU
Model A Total
length		 B Body
length		 C air outlet
length		 D lifting eye
distance		 F & G Air intake
length
CBFCU-03EC 926 848 650 890 740
CBFCU-04EC 926 848 650 890 740
CBFCU-05EC 1176 1098 900 1140 990
CBFCU-06EC 1176 1098 900 1140 990
CBFCU-08EC 1626 1548 1350 1590 1440
CBFCU-10EC 1626 1548 1350 1590 1440

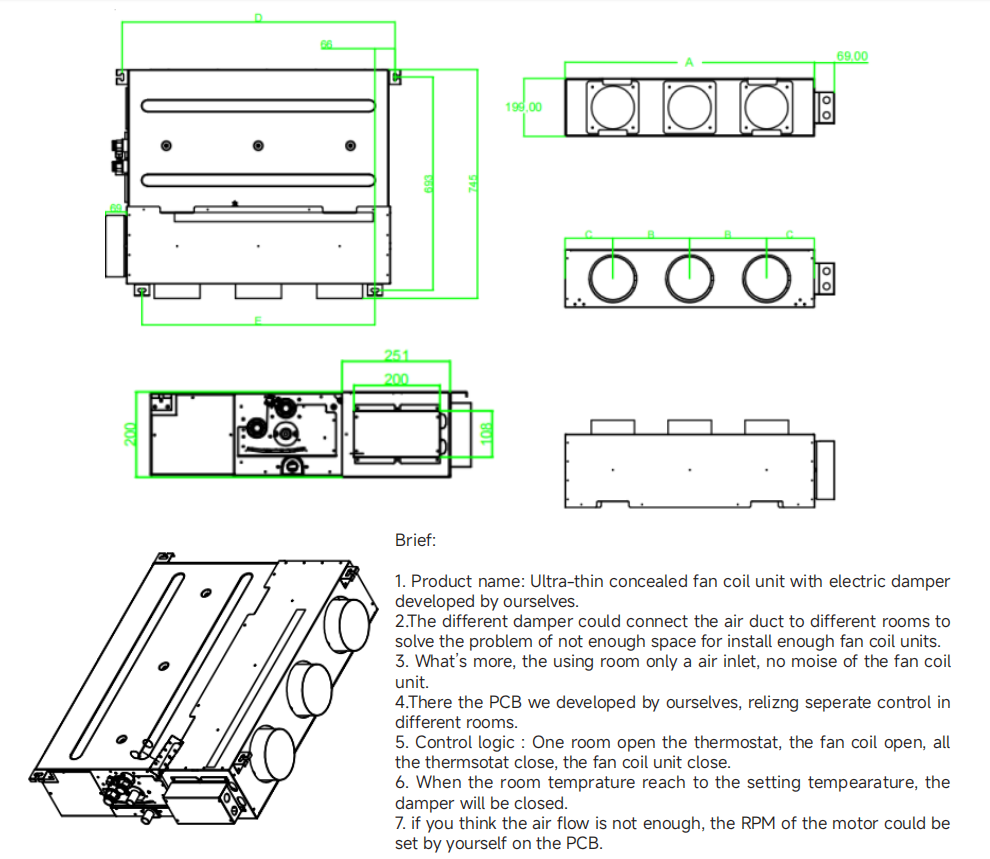

WITH DAMPER

Compact Ultra Slim Fan Coil Horizontal Concealed Ceiling Chilled Water FCU
Model NO. Measure(mm) Damper Dia
A B C D E
CBFCU-03EC 859 265 163.5 890 759 150
CBFCU-04EC 859 265 163.5 890 759
CBFCU-05EC 1109 312.5 241 1140 1009
CBFCU-06EC 1109 312.5 241 1140 1009
CBFCU-08EC 1579 400 188 1609 1478
CBFCU-10EC 1579 400 188 1609 1478
