Specifications
Brand Name :
Zoomline
Model Number :
ZT-1.5*12/15 2.7*7.0
Place of Origin :
Henan
MOQ :
1
Price :
1
Payment Terms :
T/T
Supply Ability :
1000
Delivery Time :
25
Packaging Details :
Wooden box or film
model :
ZT-1.5*12/15
insidedia.（m) :
1.5
length :
12/15m
power :
15kw
Description

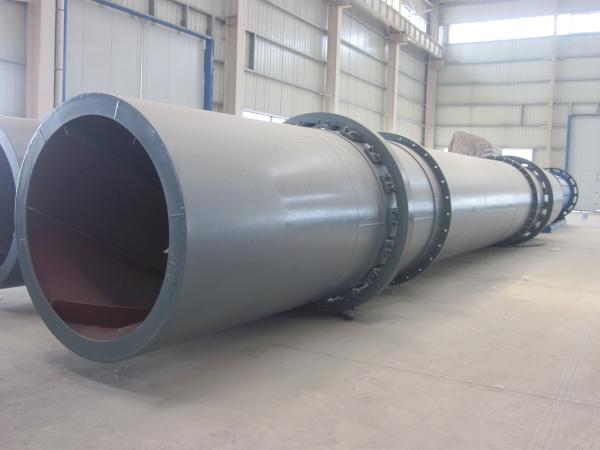

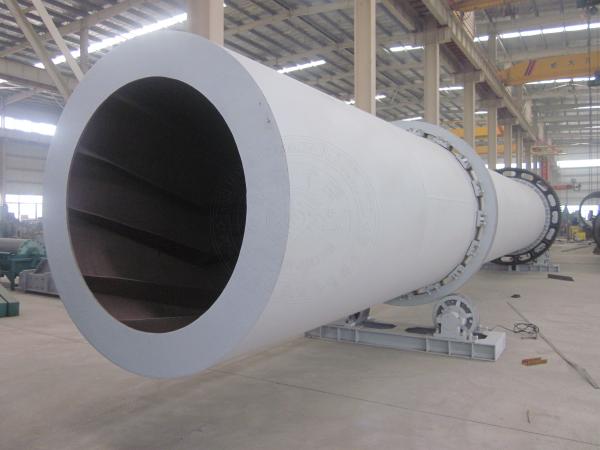

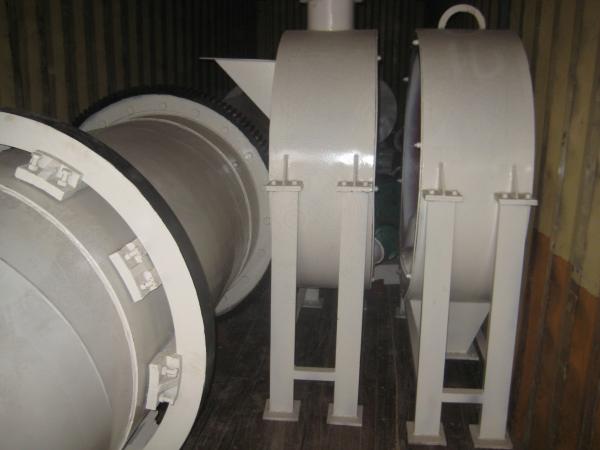

Rotary Dryer

Rotary Dryers three cylinder dryer

The rotary dryer is widely used in the construction, metallurgy, chemical, and cement industries to dry materials such as slag

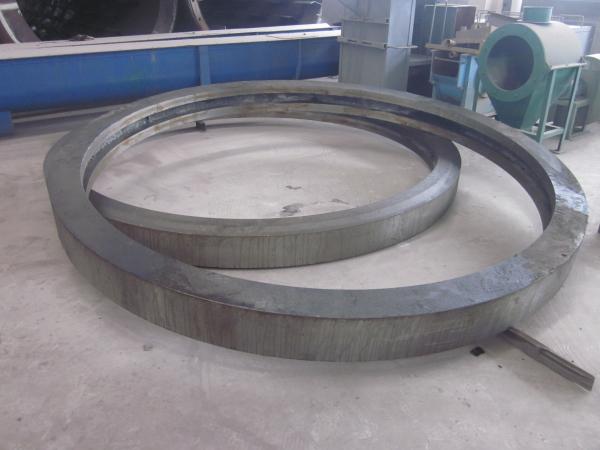

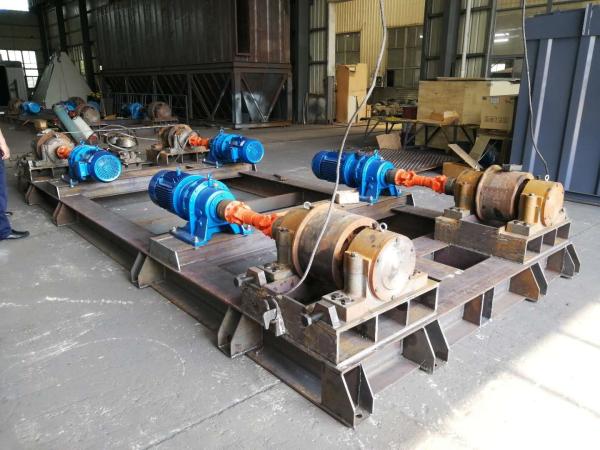

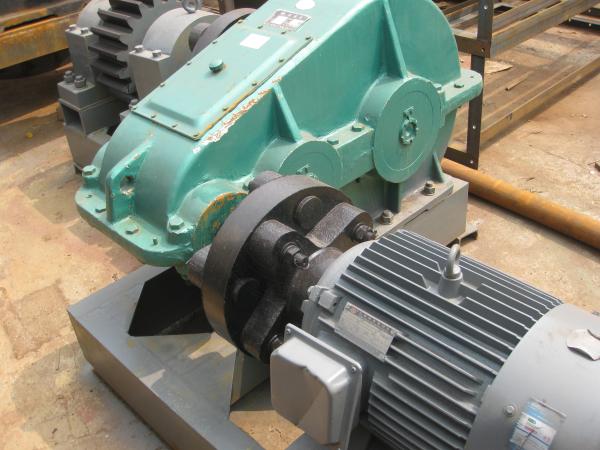

and clay. This machine is mainly composed of components like the rotary body, lifting plates, transmission device, supporting
device, and sealing ring. It has the advantages of a reasonable structure, fine manufacturing, high output, low energy consumption,
stable operation, and easy operation.
model
 Inside
Dia. (m)		 Length
(m)		 Gradient
(%)		 Rotate speed
(r/min)		 Power
(kW)		 Capacity
(t/h)		 Weight
(kg)
ZT-1.2×6/8 1.2 6/8 5.0 5.8 5.5 8 - 12 9380/10200
ZT-1.5×12/15 1.5 12/15 5.0 4.8 15 12 - 16 16450/18240
ZT-1.8×12/14 1.8 12/14 5.0 4.5 18.5 18 - 20 20000/21000
ZT-2.2×12/14 2.2 12/14 5.0 4.3 22 22 - 28 30500/32000
ZT-2.4×14 2.4 14 4.0 3.78 30 30 - 35 46000
ZT-2.4×18 2.4 18 4.0 3.0 37 35 - 40 50000
ZT-2.4×22 2.4 22 3.0 3.0 45 38 - 42 54000
ZT-2.8×20 2.8 20 4.0 3.7 40 45 - 55 75000
ZT-3.0×22/25 3.0 22/25 4.0 3.2 75 58 - 70 80000/87000
ZT-3.2×25 3.2 25 4.0 3.0 110 75 - 90 116000
ZT-3.6×25 3.6 25 4.0 2.7 132 95 - 110 146000
Note: Any change of technical data shall not be advised additionally.

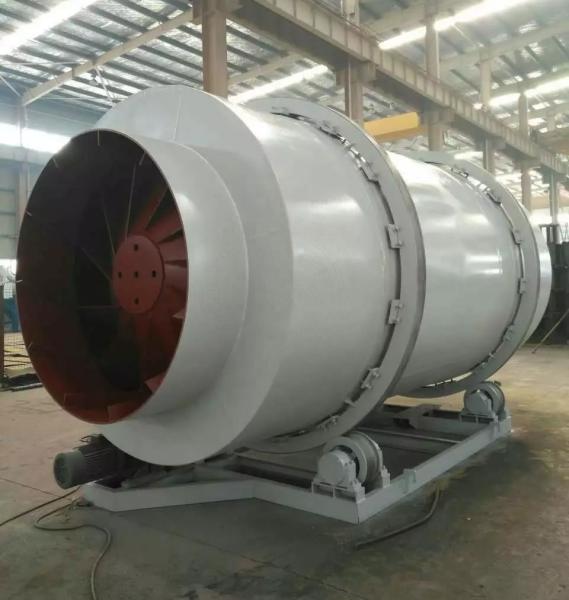

Three - cylinder Dryer

The three - cylinder dryer has improved the internal structure of the single - cylinder dryer. It enhances the drying of
wet materials before they enter the machine and prolongs the drying time of wet materials inside the machine.
With sealing, moisture - retention, and reasonable supporting measures, its production capacity is 50 - 80%
higher than that of a single - cylinder dryer. The evaporation intensity per unit volume can reach 120 - 180 kg/m³,
and the standard coal consumption is only 6 - 8 kg/t.
It features advanced technology, reasonable operating parameters, and simple and feasible operation. It can
be widely used for drying materials in various industries, such as slag, clay, coal, iron powder, ore powder,
and other mixed materials. It is also applicable for drying raw materials in the construction industry, like
dry - mixed mortar and yellow sand, as well as in chemical, casting, and other industries.
Model Inside dia. (m) Length (m) Volume (m³) Rotate speed (r/min) Power (kw) Capacity (t/h) Reducer type
Φ2.7×7.0 2.7 7.0 40.50 4 - 10 7.5×4
Yellow sand: 27 - 45
Slag: 30 - 35		 XWD - 6
Φ3.0×7.0 3.0 7.0 49.46 4 - 10 7.5×4
Yellow sand: 30 - 45
Slag: 35 - 40		 XWD - 6
Φ3.2×7.0 3.2 7.0 56.26 4 - 10 11×4
Yellow sand: 35 - 50
Slag: 40 - 45
