2.2 X 7m Dry Ball Mill Color Customization Dry Grinding Equipment
2.2 X 7m Dry Ball Mill Color Customization Dry Grinding Equipment
Specifications
Brand Name :
Zoomline
Place of Origin :
henan China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
Negotiable
Delivery Time :
30-50 days
Packaging Details :
Wooden box or film
weight :
54t
Capacity :
9t/h
Type :
dry Ball Mill
Power :
300kw
Description

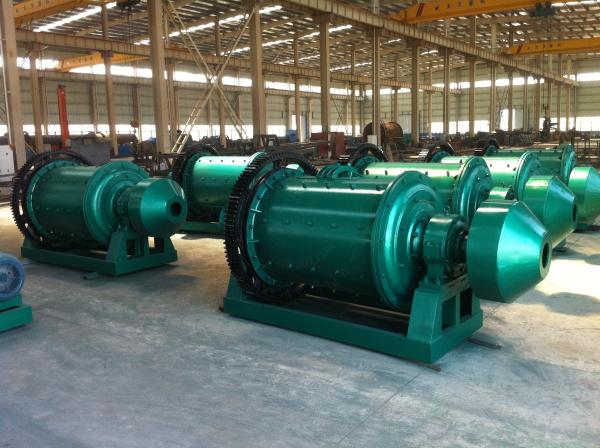

Dry Ball Mill 2.2*7m(cylinder size dia lenght) Color customization

Introduction to dry ball mill equipment

Dry ball mill is named because no water is added during the production process, and it is straight-cylinder-shaped. Dry ball mill needs to cooperate with products such as induced draft device, dust exhaust pipe and dust removal equipment when working, and the grinding method is opposite to that of wet ball mill. Dry type is mainly used for grinding raw materials or finished products such as cement, refractory materials, chemical raw materials, phosphate fertilizers, and grinding of ores before selecting non-ferrous metals in ore dressing plants. In the production process of aerated concrete, it is used to grind cement, lime, desulfurized gypsum, quartz sand, fly ash and other materials.

Performance characteristics of dry ball mill

1. The ground mineral powder has small particle size and high working efficiency

2. Double harvest of reducing consumption and increasing production. While reducing unit energy consumption, the output is greatly improved

3. The design method improves the wear resistance of the machine body, saving you a lot of maintenance cost

2.2 X 7m Dry Ball Mill Color Customization Dry Grinding Equipment

Product Specification (m) Production Capacity (t/h) Mill Type Drive Type Power (kW) Reducer Model Weight (t)
Φ1.5×5.7 3 - 4 Open - circuit Peripheral 130 ZD40 24.7
Φ1.83×7.0 4 - 7 Open - circuit Peripheral 210 ZD60 36
Φ2.2×7.0 8 - 9 Open - circuit Peripheral 300 ZD70 54
Φ2.2×7.5 10 - 11 Open - circuit Peripheral 380 ZD70 63
Φ2.2×8.0 10 - 12 Open - circuit Peripheral 380 ZD70 65
Φ2.2×9.5 14 - 16 Open - circuit Peripheral 475 ZD70 70
Φ2.4×10.0 16 - 19 Open - circuit Peripheral 630 JR75 94.5
Φ2.4×11.0 19 - 21 Open - circuit Peripheral 630 RZD80 99.2
Φ2.4×13.0 21 - 23 Open - circuit Peripheral 800 MBY710 115.2
Φ2.6×13.0 28 - 32 Open - circuit Peripheral 1000 MBY800 148
Φ2.6×13.0 28 - 32 Open - circuit Central 1000 MFY100 101.73
Φ3.0×12.0 32 - 35 Open - circuit Peripheral 1250 MBY900 168.6
Φ3.0×13.0 34 - 37 Open - circuit Peripheral 1400 MBY900 172.26
Φ3.2×13.0 45 - 50 Open - circuit Peripheral 1600 MBY1000 196.26
Φ3.8×13.0 60 - 62 Open - circuit Central 2500 MFY250 204
Φ4.2×13.0 85 - 87 Open - circuit Central 3530 JQS3550 254
