Vertical Fluidized Bed Roasting Fluidized Bed Steam Boiler 900mm 1200mm
Vertical Fluidized Bed Roasting Fluidized Bed Steam Boiler 900mm 1200mm
Specifications
Brand Name :
Fluidized Bed Roasting
Place of Origin :
henan china
MOQ :
1
Payment Terms :
T/T
Supply Ability :
Negotiable
Delivery Time :
30-50 days
Packaging Details :
Wooden box or film
Automation Level :
High
Energy Efficiency :
High
Air Flow Rate :
10-100 M/s
Application :
Roasting
Uniformity Of Roasting :
High
Material :
Solid Particles
Scale-Up Potential :
High
Operating Cost :
Low
Description

Dual-Energy Microwave Roasting System

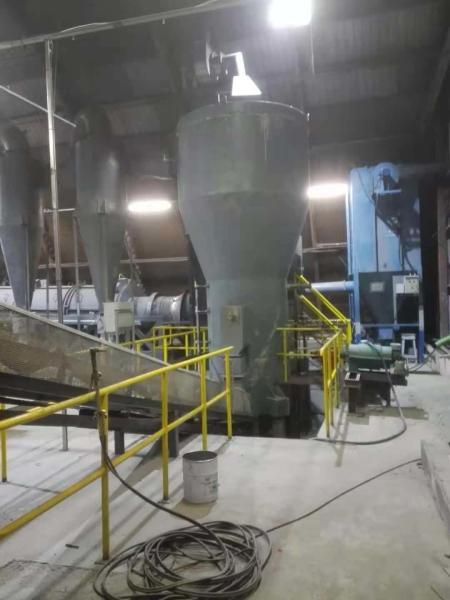

Vertical fluidized - bed roaster Diameter900/1200/2000/2600/4600/6400

This dual-energy system integrates 2.45 GHz microwave technology with traditional gas heating to offer enhanced efficiency in processing high-activity minerals. Its silicon carbide internal lining ensures resilience in demanding environments. The system is optimized for the desulfurization of zinc concentrates, with particle size capabilities from 0.05 to 3 mm.

Key Features:

  • Top Conical Structure: Provides a 30% increase in gas retention time, enhancing reaction efficiency.

  • Hybrid Heating (Gas + Microwave): Combines the best of both technologies for optimal energy use.

  • Smart Microwave Power Matching: Ensures precise microwave power delivery for consistent results.

Core Advantages:

  • Desulfurization Rate: Over 98.5% removal of sulfur.

  • Reduced Energy Use: 22% decrease in energy costs per unit of output.

  • Patented Fluidizing Plate: Prevents coking, optimizing continuous operation.

Model Diameter (mm) Capacity (t/h) Power (kw) Weight (t)
ZLFT - 0.6m² 900 0.1 - 1.2 5.5 - 7.5 3.5
ZLFT - 1.1m² 1200 0.3 - 2.7 11 - 15 5.9
ZLFT - 3m² 2000 1.1 - 3.5 22 - 30 17
ZLFT - 5m² 2600 3.8 - 7.9 30 - 45 26
ZLFT - 16m² 4600 15 - 30 90 - 110 55
ZLFT - 32m² 6400 26 - 60 132 - 180 98
