Bauxite Rotary Kiln Automatic Temperature Control Electronic Control Rotary Furnace
Bauxite Rotary Kiln Automatic Temperature Control Electronic Control Rotary Furnace
Specifications
Brand Name :
Zoomline
Place of Origin :
henan China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
Negotiable
Delivery Time :
30-50 days
Packaging Details :
Wooden box or film
Feeding Equipment :
Screw Feeder
Heating Method :
Direct Or Indirect Heating
Slope :
4%
Rated Temperature :
1000℃
Description

Bauxite rotary kiln ,Automatic temperature control system, electronic control system

Introduction to bauxite rotary kiln:

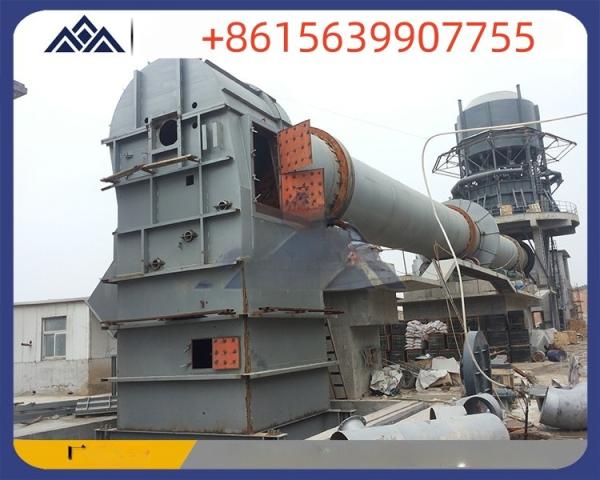

Bauxite rotary kiln, also known as bauxite calcining kiln, is a rotary kiln equipment specially developed for the calcination of bauxite. It is mainly composed of a rotating part, a supporting part, a transmission device, a kiln head cover, a kiln head and kiln tail seal, a combustion device, etc. It has the outstanding characteristics of simple structure, reasonable design, simple and reliable operation, few people, and stable process.

Performance characteristics of bauxite rotary kiln

1. Low energy consumption, which can reduce the unit coal consumption of ordinary dome converter by 40%, with high product quality, good stability, and strong market price advantage.

2. Simple and reliable operation, few people, and stable process.

3. Low environmental pollution, low maintenance, and high operation rate.

4. It can be applied to a variety of fuels such as gas, coal powder and fuel oil.

5. It can be upgraded to automatic control, and the system is more stable.

Bauxite Rotary Kiln Automatic Temperature Control Electronic Control Rotary Furnace

Type Model Barrel Diameter (mm) Barrel length (mm) Slope (%) Capacity (t/h) Speed Motor Power (kW) Weight (t)
YZ1225 1200 25000 4 3 0.35 - 3.55 15 34
YZ1632 1600 32000 4 3.5 0.53 - 5.25 22 46.82
YZ1636 1600 36000 4 1.2 - 1.9 0.26 - 2.61 22 51.023
YZ1828 1800 28000 4 4 0.28 - 2.84 30 59.39
YZ1845 1800 45000 4 4.5 0.28 - 2.84 30 80
YZ1939 1900 39000 4 1.6 - 3.4 0.31 - 2.82 37 70.704
YZ2044 2000 44000 3.5 2.4 - 4 0.22 - 2.26 37 97.135
YZ2245 2200 45000 3.5 3.2 - 5.3 0.23 - 2.25 45 125.462
YZ2550 2500 50000 3.5 6.2 - 7.4 0.68 - 1.45 55 179.606
YZ2555 2500 55000 3.5 7.3 - 9.8 0.79 - 2.38 55 191.203
YZ2820 2800 20000 4 15 - 18 0.8 - 1.45 75 186.373
YZ3028 3000 28000 4 18 - 23 0.8 - 1.45 75 180.737
YZ3060 3000 60000 3.5 16 - 20 0.49 - 2.41 90 272.510
YZ3226 3200 26000 4 22 - 27 0.8 - 1.45 90 185.107
YZ3255 3200 55000 3.5 17 - 23 0.1 - 1.52 75 271.673
YZ3529 3500 29000 4 28 - 40 0.16 - 1.38 110 238.031
YZ3560 3500 60000 3.5 28 - 40 0.65 - 2.25 125 347.872
YZ4030 4000 30000 4 52 - 70 0.38 - 3.52 160 415.103
YZ4060 4000 60000 3.5 55 - 78 0.38 - 3.52 315 514.223
YZ4262 4200 62000 3.5 80 - 105 0.38 - 3.52 315 541.615
YZ4565 4500 65000 3.5 110 - 140 0.38 - 3.52 420 609.526
YZ4772 4700 72000 3.5 150 - 190 0.38 - 3.52 550 795.325
YB1626 1600/1400 26000 4 0.7 - 11 0.41 - 3.85 18.5 38.621
YB1939 1900/1600 39000 4 2.2 - 2.7 0.27 - 2.58 22 60.841
YB2245 2200/2000 45000 3.5 2.5 - 3.5 0.25 - 2.28 30
