Chemical Rotary Kiln Dryer 0.35r/MinDust Removal Rotary Kiln Electric Furnace
Chemical Rotary Kiln Dryer 0.35r/MinDust Removal Rotary Kiln Electric Furnace
Chemical Rotary Kiln Dryer 0.35r/MinDust Removal Rotary Kiln Electric Furnace
Chemical Rotary Kiln Dryer 0.35r/MinDust Removal Rotary Kiln Electric Furnace
Chemical Rotary Kiln Dryer 0.35r/MinDust Removal Rotary Kiln Electric Furnace
Chemical Rotary Kiln Dryer 0.35r/MinDust Removal Rotary Kiln Electric Furnace
Specifications
Brand Name :
Zoomline
Model Number :
customization
Place of Origin :
henan China
Slope :
3.5-4%
Rotating Speed :
0.35-3.55r/min
Installation :
Provided
Description

Chemical rotary kiln equipment ,Optional dust removal, feeding and discharging equipment

Chemical rotary kiln equipment introduction

Chemical rotary kiln is mainly used for calcining chemical clinker, which is divided into two categories: dry production chemical kiln and wet production chemical kiln.

Purpose of chemical rotary kiln:

1. Magnetization roasting of chromium for lean iron ore in steel plant in metallurgical industry;

2. Oxidation roasting of nickel iron ore;

3. Roasting of high-alumina bauxite in refractory plant and roasting of clinker and aluminum hydroxide in aluminum plant;

4. Roasting of chromium ore sand and chromium ore powder in chemical plant.

Performance characteristics of chemical rotary kiln

1. Controllable axial movement of the cylinder

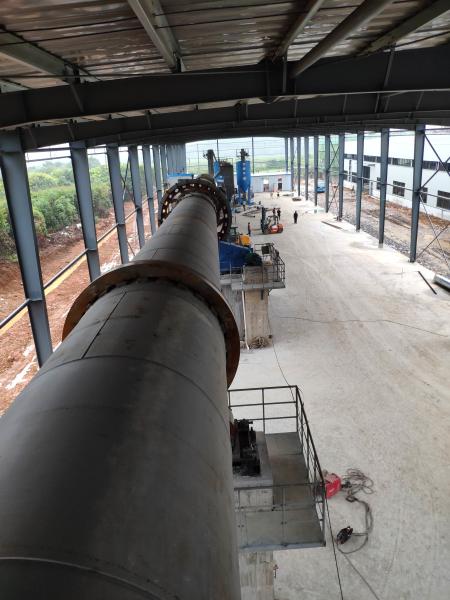

The kiln cylinder is made of steel plate coil welding. The cylinder is supported on the support device of 2-7 gear sliding bearings through wheel belts, and mechanical or hydraulic stop wheels are provided on one or several gear support devices. Customers can flexibly control the axial movement of the cylinder.

2. Flexible speed

The transmission device rotates the cylinder at the required speed through the gear ring located in the middle of the cylinder.

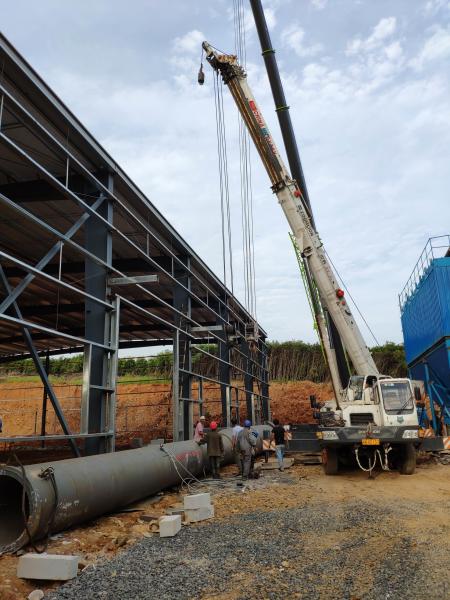

3. Easy installation and maintenance

Larger kilns are equipped with auxiliary transmission devices that allow the cylinder to rotate at a very low speed to meet the needs of installation and maintenance.

4. Good sealing performance

To prevent cold air from entering and smoke and dust from overflowing the cylinder, reliable kiln tail and kiln head sealing devices are installed at the feed end (tail) and discharge end (head) of the cylinder.

Type Model Barrel Diameter (mm) Barrel length (mm) Slope (%) Capacity (t/h) Speed Motor Power (kW) Weight (t)
YZ1225 1200 25000 4 3 0.35 - 3.55 15 34
YZ1632 1600 32000 4 3.5 0.53 - 5.25 22 46.82
YZ1636 1600 36000 4 1.2 - 1.9 0.26 - 2.61 22 51.023
YZ1828 1800 28000 4 4 0.28 - 2.84 30 59.39
YZ1845 1800 45000 4 4.5 0.28 - 2.84 30 80
YZ1939 1900 39000 4 1.6 - 3.4 0.31 - 2.82 37 70.704
YZ2044 2000 44000 3.5 2.4 - 4 0.22 - 2.26 37 97.135
YZ2245 2200 45000 3.5 3.2 - 5.3 0.23 - 2.25 45 125.462
YZ2550 2500 50000 3.5 6.2 - 7.4 0.68 - 1.45 55 179.606
YZ2555 2500 55000 3.5 7.3 - 9.8 0.79 - 2.38 55 191.203
YZ2820 2800 20000 4 15 - 18 0.8 - 1.45 75 186.373
YZ3028 3000 28000 4 18 - 23 0.8 - 1.45 75 180.737
YZ3060 3000 60000 3.5 16 - 20 0.49 - 2.41 90 272.510
YZ3226 3200 26000 4 22 - 27 0.8 - 1.45 90 185.107
YZ3255 3200 55000 3.5 17 - 23 0.1 - 1.52 75 271.673
YZ3529 3500 29000 4 28 - 40 0.16 - 1.38 110 238.031
YZ3560 3500 60000 3.5 28 - 40 0.65 - 2.25 125 347.872
YZ4030 4000 30000 4 52 - 70 0.38 - 3.52 160 415.103
YZ4060 4000 60000 3.5 55 - 78 0.38 - 3.52 315 514.223
YZ4262 4200 62000 3.5 80 - 105 0.38 - 3.52 315 541.615
YZ4565 4500 65000 3.5 110 - 140 0.38 - 3.52 420 609.526
YZ4772 4700 72000 3.5 150 - 190 0.38 - 3.52 550 795.325
YB1626 1600/1400 26000 4 0.7 - 11 0.41 - 3.85 18.5 38.621
YB1939 1900/1600 39000 4 2.2 - 2.7 0.27 - 2.58 22 60.841
YB2245 2200/2000 45000 3.5 2.5 - 3.5 0.25 - 2.28 30 88.632
YB2545 2500/2200 45000 3.5 4.5 - 6.2 0.25 - 2.18 45 102.367
YB2845 2800/2500 45000 3.5 7.5 - 10 0.68 - 1.45 55 192.622
YB3560 3500/3000 60000
