Wear-resistant and impact-resistant construction sand and gravel circular vibrating screen

Circular vibrating screen is a highly efficient screening equipment, which is widely used in many industries such as mining, building materials, chemical industry, food, etc.

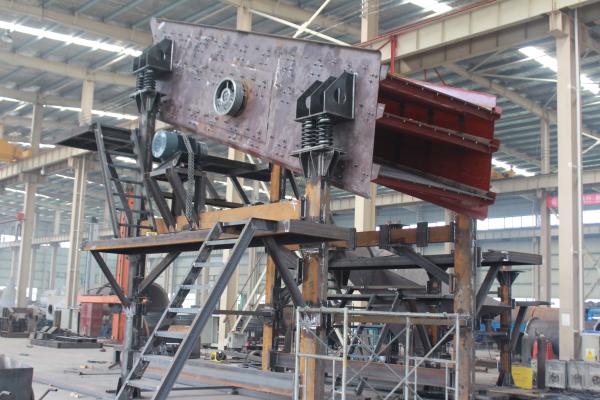

Structural design: It is mainly composed of screen box, screen mesh, vibrator, vibration damping spring device and other components. The screen box is made of high-strength steel plate and is durable. The vibrator is installed on the side plate of the screen box and generates exciting force through the eccentric block. The vibration damping spring device supports the screen box to reduce the impact of vibration on the foundation.

Working principle: The motor drives the main shaft of the vibrator to rotate through the V-belt, and the eccentric block generates centrifugal inertia force, which makes the screen box produce a circular motion trajectory. After the material enters the screen surface, particles smaller than the size of the screen hole fall through the screen mesh and become screened materials, while particles larger than the size of the screen hole remain on the screen surface for further screening and are finally discharged from the discharge port.

Performance advantages:

High screening efficiency: The unique structure and movement mode enable the material to be quickly layered and screened, with large processing capacity, which can meet the needs of large-scale production.

Accurate precision: According to different screening requirements, screens of different specifications can be equipped, which can effectively separate materials of different particle sizes and have high screening accuracy.

Stable operation: driven by a vibration motor, the excitation force is strong and stable, the equipment operates reliably, the failure rate is low, and the service life is long.

Easy maintenance: the screen is easy to replace, the overall structure of the equipment is simple, the workload of daily maintenance and overhaul is small, and the cost of use is reduced.

Wide application: it can be used for screening and grading various granular and powdery materials such as limestone, quartz sand, coal, and grain, with strong adaptability.

With its excellent performance, the circular vibrating screen provides an efficient and reliable solution for material screening in various industries.

型号	筛网层数	筛孔尺寸(mm)	最大进料粒度(mm)	处理能力(t/h)	振动频率(r/min)	双振幅(mm)	电机功率(kW)	筛面倾斜角度(°)	筛面规格(长 × 宽 mm)	总重量(kg)	外形尺寸(长 × 宽 × 高 mm)
2YK1225	2	4 - 50	400	8 - 60	800 - 970	8	5.5	20	1200×2500	3500	3040×1840×800
3YK1225	3	4 - 50	400	10 - 70	800 - 970	8	5.5	20	1200×2500	3650	3040×1840×1200
2YK1230	2	4 - 50	400	12 - 78	800 - 970	8	7.5	20	1200×3000	4200	3390×1900×800
3YK1230	3	4 - 50	400	13 - 80	800 - 970	8	7.5	20	1200×3000	4600	3537×1900×1200
2YK1237	2	4 - 50	400	15 - 86	800 - 970	8	7.5	20	1200×3700	4600	4090×1900×800
3YK1237	3	4 - 50	400	16 - 90	800 - 970	8	7.5	20	1200×3700	4400	4090×1900×1200
2YK1535	2	5 - 50	400	20 - 125	800 - 970	8	11	20	1500×3500	5890	4552×2250×900
3YK1535	3	5 - 50	400	21 - 125	800 - 970	8	11	20	1500×3500	6700	4552×2250×1600
2YK1545	2	5 - 50	400	22 - 150	800 - 970	8	15	20	1500×4500	6330	5400×2250×1600
3YK1545	3	5 - 50	400	22 - 150	800 - 970	8	15	20	1500×4500	6800	5400×2250×1700
2YK1548	2	5 - 50	400	22.5 - 162	800 - 970	8	15	20	1500×4800	6980	5400×2250×1860
3YK1548	3	5 - 50	400	22.5 - 162	800 - 970	8	15	20	1500×4800	7600	5752×2200×1600
2YK1848	2	5 - 80	400	25 - 206	750 - 970	8	11	15	Product tags Send your message to this supplier Message* Email* Phone or WhatsApp* Name Company Please reply me within 24 hours. Yes! I would like your verified suppliers matching service! Send Now Submission successful! Wear Resistant Mining Screening Equipment Impact Resistant Construction Sand Round Vibrating Screen Ask Latest Price Watch Video Product Detail Brand Name : Zoomline Place of Origin : henan China MOQ : 1 Payment Terms : T/T Supply Ability : Negotiable Delivery Time : 30-50 days Contact Supplier video Henan Zoomline Machinery Manufacturing co. Ltd Verified Supplier 1 Years henan Since 2018 Business Type : Distributor/Wholesaler, Exporter, Seller Main Products : Fluidized Bed Roasting, Jaw Cone Crusher, Waste Incinerators Total Annual : 1000000-10000000 Employee Number : 130~150 Certification Level : Verified Supplier Discover similar products video Multi Layer Circular Vibrating Sieve Adjustable Parameters Round Vibrating Contact Now video 10 - 650Tons/Hr Mining Screening Equipment 2Layers Mining Vibrating Screens Contact Now Revolutionary Circular Motion Screen Unleash Unparalleled Mineral Processing Contact Now video Chemical Raw Materials Mining Screening Equipment Circular Vibrating Screen Contact Now video Eco Friendly Vibrating Mining Screens Low Noise Circular Vibrating Screen Contact Now video Metallurgical Powder Mining Screening Equipment Circular Vibrating Screen Contact Now video 10T/H - 25T/H Mining Screening Equipment Vibrating Screens Mining Contact Now View More Find Similar Products By Category: Supplier Homepage Products Mining Screening Equipment MachineU China Products Machinery Energy & Mineral Equipment Mining Machinery Vibrating Screen Contact Supplier Message* Email* Phone or WhatsApp* Name Company Submit Requirement Please reply me within 24 hours. Yes! I would like your verified suppliers matching service! Submitted successfully! Your request message has been successfully sent to the supplier. Please keep in touch and they will contact you as soon as possible. OK
