Chemical raw materials circular vibrating screen

As a powerful equipment in the field of screening, the circular vibrating screen plays a key role in many industries.

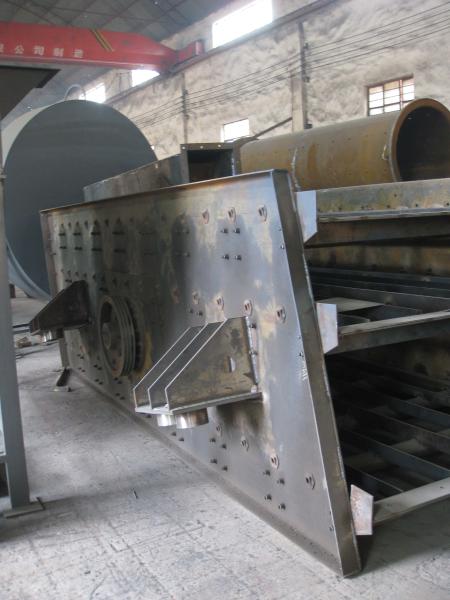

Its structure is exquisite, mainly composed of screen box, vibration motor, screen mesh, spring assembly, etc. The screen box is made of high-strength steel and is sturdy and vibration-resistant. The vibration motor is installed on both sides of the screen box to provide strong excitation force, and the spring assembly effectively buffers to ensure the smooth operation of the equipment.

During operation, the vibration motor drives the screen box to vibrate in a circular trajectory, and the material keeps jumping and rolling on the screen surface. Particles smaller than the size of the screen hole quickly pass through the screen and become the under-screen product, while those larger than the screen hole gradually move to the discharge end on the screen surface and are finally discharged.

In terms of performance, the circular vibrating screen has significant advantages. The screening efficiency is quite high and the processing capacity is strong. It can meet the needs of large-scale production, and the processing capacity per hour can reach several tons to tens of tons. The screening accuracy is precise, and the fine separation of materials of various particle sizes can be achieved by replacing screens of different meshes. The equipment operates stably and reliably, the vibration motor has excellent performance, simple maintenance, and convenient replacement of screen mesh, which can greatly reduce downtime and maintenance costs. And it has a wide range of applications, whether it is ore in mines, sand and gravel for building materials, or granular raw materials for chemicals, it can be efficiently screened.

The circular vibrating screen provides a reliable and efficient choice for material screening in various industries with its outstanding performance.

型号	筛网层数	筛孔尺寸(mm)	最大进料粒度(mm)	处理能力(t/h)	振动频率(r/min)	双振幅(mm)	电机功率(kW)	筛面倾斜角度(°)	筛面规格(长 × 宽 mm)	总重量(kg)	外形尺寸(长 × 宽 × 高 mm)
2YK1225	2	4 - 50	400	8 - 60	800 - 970	8	5.5	20	1200×2500	3500	3040×1840×800
3YK1225	3	4 - 50	400	10 - 70	800 - 970	8	5.5	20	1200×2500	3650	3040×1840×1200
2YK1230	2	4 - 50	400	12 - 78	800 - 970	8	7.5	20	1200×3000	4200	3390×1900×800
3YK1230	3	4 - 50	400	13 - 80	800 - 970	8	7.5	20	1200×3000	4600	3537×1900×1200
2YK1237	2	4 - 50	400	15 - 86	800 - 970	8	7.5	20	1200×3700	4600	4090×1900×800
3YK1237	3	4 - 50	400	16 - 90	800 - 970	8	7.5	20	1200×3700	4400	4090×1900×1200
2YK1535	2	5 - 50	400	20 - 125	800 - 970	8	11	20	1500×3500	5890	4552×2250×900
3YK1535	3	5 - 50	400	21 - 125	800 - 970	8	11	20	1500×3500	6700	4552×2250×1600
2YK1545	2	5 - 50	400	22 - 150	800 - 970	8	15	20	1500×4500	6330	5400×2250×1600
3YK1545	3	5 - 50	400	22 - 150	800 - 970	8	15	20	1500×4500	6800	5400×2250×1700
2YK1548	2	5 - 50	400	22.5 - 162	800 - 970	8	15	20	1500×4800	6980	5400×2250×1860
3YK1548	3	5 - 50	400	22.5 - 162	800 - 970	8	15	20	1500×4800	7600	5752×2200×1600
2YK1848	2	5 - 80	400	25 - 206	750 - 970	8	11	15	1800×4800	9080	6140×2470×1380
