10 - 650Tons/Hr Mining Screening Equipment 2Layers Mining Vibrating Screens
10 - 650Tons/Hr Mining Screening Equipment 2Layers Mining Vibrating Screens
10 - 650Tons/Hr Mining Screening Equipment 2Layers Mining Vibrating Screens
10 - 650Tons/Hr Mining Screening Equipment 2Layers Mining Vibrating Screens
10 - 650Tons/Hr Mining Screening Equipment 2Layers Mining Vibrating Screens
10 - 650Tons/Hr Mining Screening Equipment 2Layers Mining Vibrating Screens
10 - 650Tons/Hr Mining Screening Equipment 2Layers Mining Vibrating Screens
10 - 650Tons/Hr Mining Screening Equipment 2Layers Mining Vibrating Screens
10 - 650Tons/Hr Mining Screening Equipment 2Layers Mining Vibrating Screens
10 - 650Tons/Hr Mining Screening Equipment 2Layers Mining Vibrating Screens
10 - 650Tons/Hr Mining Screening Equipment 2Layers Mining Vibrating Screens
10 - 650Tons/Hr Mining Screening Equipment 2Layers Mining Vibrating Screens
10 - 650Tons/Hr Mining Screening Equipment 2Layers Mining Vibrating Screens
10 - 650Tons/Hr Mining Screening Equipment 2Layers Mining Vibrating Screens
Specifications
Brand Name :
Zoomline
Place of Origin :
henan china
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
Negotiable
Delivery Time :
30-50 days
Packaging Details :
Wooden box or film
Process Capacity :
10-25T/H
Attributes :
Mining Flotation Machines
Advantage :
High Efficiency
Color :
According To Customer′s Requirement
Attribute :
Mining Machine
Capacity :
10-1000 Tons Per Hour
Origin :
China
Screening Layers :
1-5 Layers
Description

10-650Tons Per Hour Capacity -Mining Screening Equipment with and Advantage model1230/1535/1545/1854/2160/2460

Product Description:

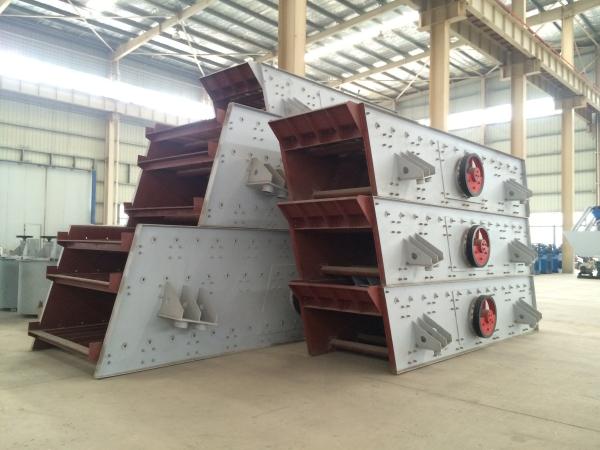

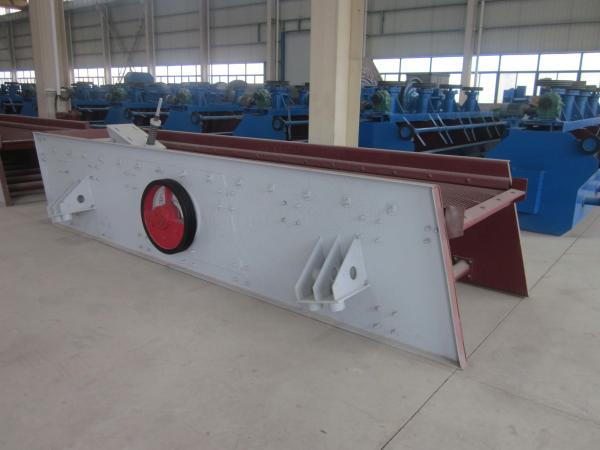

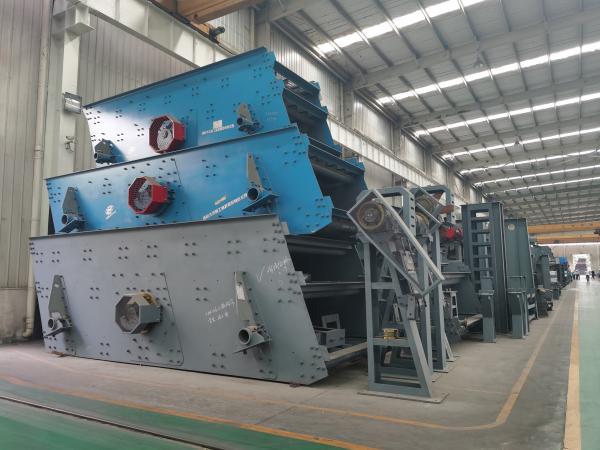

YZS Circular Vibrating Screen
YZS circular vibrating screen moves round, has multiple layers and is highly efficient. The machine uses a cylindrical eccentric shaft vibrator and partial blocks to adjust the amplitude. The material drops down the long screening line. It has the advantages of reliable structure, strong exciting force, high efficiency, low noise, durability, easy maintenance, and safety. It is widely used for classification in mining, construction, material, transportation, energy, chemical, and other industries.

Model Screen Net Layers Screen Hole Dimensions (mm) Max - Feed Size (mm) Processing Capacity (t/h) Vibration Frequency (r/min) Double Amplitude (mm) Motor Power (kW) Screen Face Tilt Angle (°) Screen Face Spec. (mm) Weight (kg) Dimensions (L×W×H) (mm)
2YK1225 2 4 - 50 400 8 - 60 800 - 970 8 5.5 20 1200×2500 3500 3040×1840×800
3YK1225 3 4 - 50 400 10 - 70 800 - 970 8 5.5 20 1200×2500 3850 3040×1840×1200
2YK1230 2 4 - 50 400 12 - 78 800 - 970 8 7.5 20 1200×3000 4200 3390×1900×800
3YK1230 3 4 - 50 400 13 - 80 800 - 970 8 7.5 20 1200×3000 4600 3537×1900×1200
2YK1237 2 4 - 50 400 15 - 86 800 - 970 8 7.5 20 1200×3700 4600 4090×1900×800
3YK1237 3 4 - 50 400 16 - 90 800 - 970 8 7.5 20 1200×3700 5200 4400×1950×1200
2YK1535 2 5 - 50 400 20 - 125 800 - 970 8 11 20 1500×3500 5890 4552×2250×900
3YK1535 3 5 - 50 400 21 - 125 800 - 970 8 11 20 1500×3500 6700 4552×2250×1600
2YK1545 2 5 - 50 400 22 - 150 800 - 970 8 15 20 1500×4500 6330 5400×2250×1600
3YK1545 3 5 - 50 400 22 - 150 800 - 970 8 15 20 1500×4500 6800 5400×2250×1700
2YK1548 2 5 - 50 400 22.5 - 162 800 - 970 8 15 20 1500×4800 6980 5300×2200×860
3YK1548 3 5 - 50 400 22.5 - 162 800 - 970 8 15 20 1500×4800 7600 5752×2200×1600
2YK1848 2 5 - 80 400 25 - 206 750 - 970 11 15 20 1800×4800 9080 6140×2470×1380
3YK1848 3 5 - 80 400 32 - 276 800 - 970 8 18.5 20 1800×4800 9600 6140×2710×1780
2YK1854 2 5 - 80 400 32 - 312 800 - 970 8 18.5 20 1800×5400 10150 6500×2600×1300
3YK1854 3 5 - 80 400 33 - 313 800 - 970 8 18.5 20 1800×5400 10840 6960×2600×1630
2YK1860 2 3 - 100 400 65 - 586 870 - 970 5 - 9 22 20 1800×6000 10900 7150×2800×1550
3YK1860 3 3 - 100 400 65 - 586 870 - 970 5 - 9 22 - 30 20 1800×6000 11500 7150×2800×1800
2YK2160 2 5 - 100 400 50 - 475 970 8 30 20 2100×6000 11780 7300×2950×2000
3YK2160 3 5 - 100 400 50 - 475 970 8 30 20 2100×6000 12800 7300×2950×2000
2YK2460 2 5 - 100
