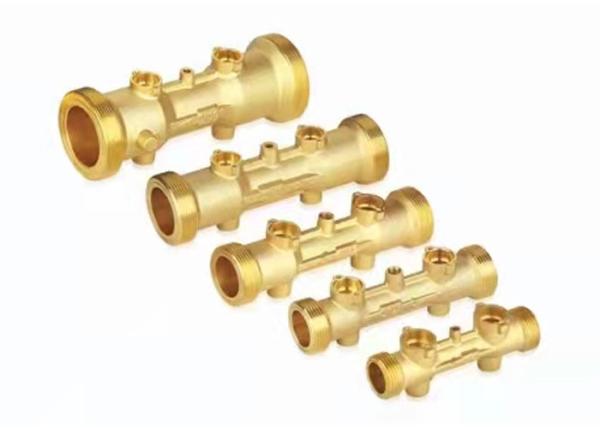

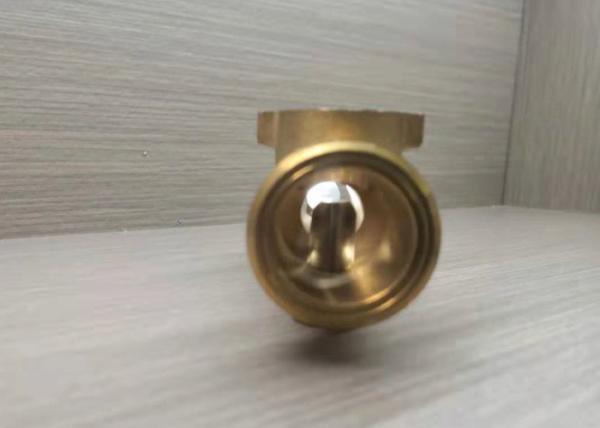

DN15 Brass Water Meter Body 110mm Length Ultrasonic Transducer Holder
DN15 Brass Water Meter Body 110mm Length Ultrasonic Transducer Holder
DN15 Brass Water Meter Body 110mm Length Ultrasonic Transducer Holder
DN15 Brass Water Meter Body 110mm Length Ultrasonic Transducer Holder
Specifications
Brand Name :
Runpaq
Model Number :
104-DN15
Certification :
NONE
Place of Origin :
China
MOQ :
100 pieces
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
200000 sets/month
Delivery Time :
20 - 30 days
Packaging Details :
carton + pallet
Pipe Diameter :
DN15-DN40
Pressure :
PN16 / 1.6 Mpa / 232 psi / 16 bar
Material :
Brass / Stainless steel SS304
Reflect mirror :
W reflect, Z reflect
Options :
mini motorised ball valve
Warranty :
10 years
Application :
Ultrasonic water meter, heat meter, digital flow meter, smart water meter
Length :
DN15-110mm, 130mm, 165 mm
Description

DN15 Ultrasonic Water Meter Brass Body, ultrasonic transducer holder, Length: 110mm

General Introduction
The ultrasonic water meter of convection type, when the ultrasonic wave and liquid flow direction runs in the same or reverse direction, the speed of the ultrasonic wave in liquid may be accelerated or decelerated accordingly. By this principle ,the ultrasonic flow sensor detects the liquid flow speed in the pipe, and thus obtains the flow data for energy metering. We produce brass pipe or stainless steel pipe for ultrasonic water flow meter's housing, optional DC motorized valve with actuator for remotely open or close valve. With fastly development of Nb-IOT - Internet of Things, the intelligent water meter are more and more used for AMR water metering system. It can help to monitor the water supply system, and reduce waste.

Product Features:

  • the reasonable pipe structure leads to large velocity gradient
  • good pipe structure ensures small and evenly velocity gradient
  • reasonable structure of reflecting column will produce swirl
  • good structure of reflecting column will avoid swirl

Technical Parameter

Diameter Tube length (mm) Thread (inch) Transducer hole size (mm) Core (mm) remarks
DN15 110 G3/4B Φ21x9.2mm (17.2x1.5) - customized available
DN20 130 G1B Φ21x9.2mm 17.2x1.5
Φ14x46mm		 customized available
DN25 160 G1-1/4B Φ21x9.2mm 17.2x1.5 Φ17x60mm customized available
DN32 180 G1-1/2B Φ21x9.2mm 17.2x1.5 Φ22.5x60mm customized available
DN40 200 G2B Φ21x9.2mm 17.2x1.5 Φ28.5x60mm customized available


Package

DN15 Brass Water Meter Body 110mm Length Ultrasonic Transducer Holder DN15 Brass Water Meter Body 110mm Length Ultrasonic Transducer Holder

Process equipments


Question and Answers:
-Q: What is the most accurate flow meter, and what is the most popular used water meter?
-A: In terms of accuracy or precision of a flow meter, it depends on the application, a wide range of intelligent flow meters type are for selection: electromagnetic flow meter, ultrasonic flow meter, turbine flow meter, coriolis flow meter, etc. From the point of volumetric water metering, it's mechanical water meter, voumetric water meter, ultrasonic water meter, etc.
